Honda CRX silhouetteCRX

Column — Installation (cont'd)

11-36prose procedure
Continued from 11-35
  1. 10

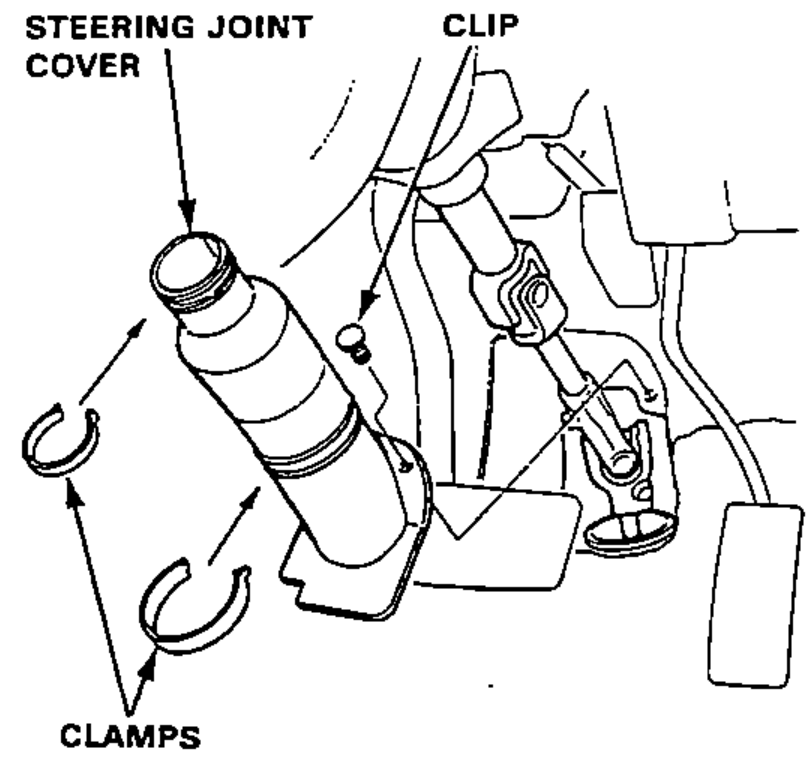

    Install the steering joint cover with the clamps and clip.
    Steering joint cover being installed with its two clamps and clip onto the steering joint.
  2. 11

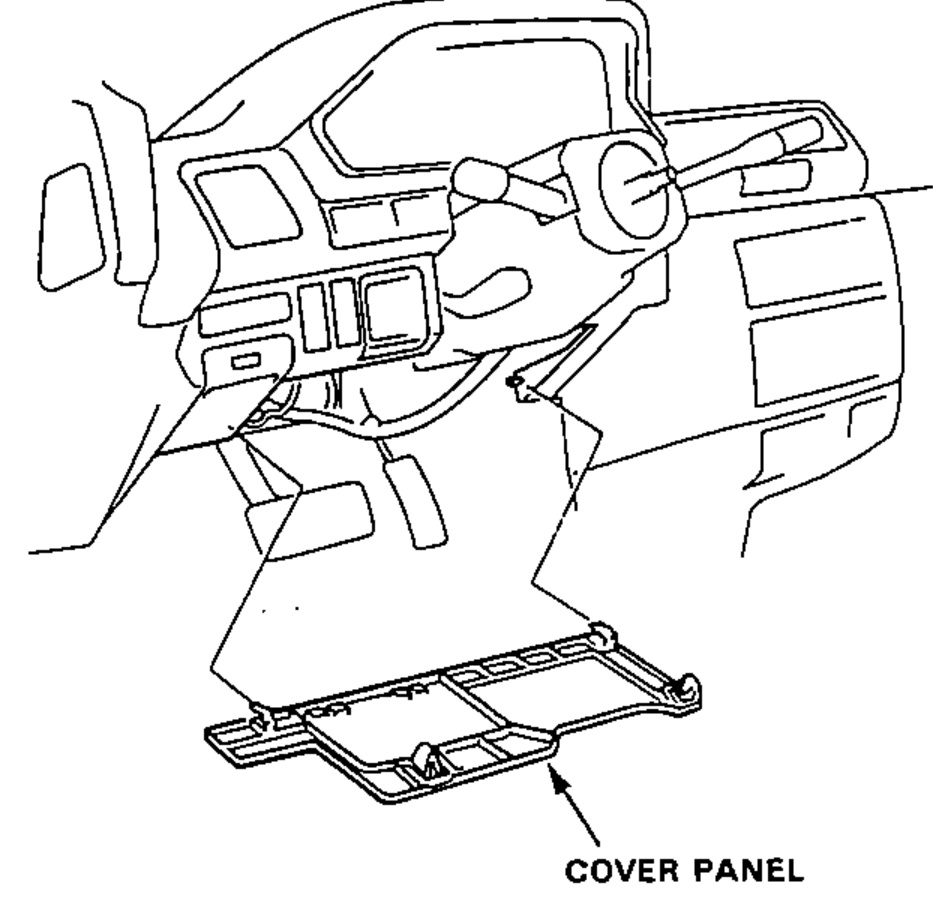

    Install the cover panel.
    Cover panel being installed under the dashboard.
  3. 12

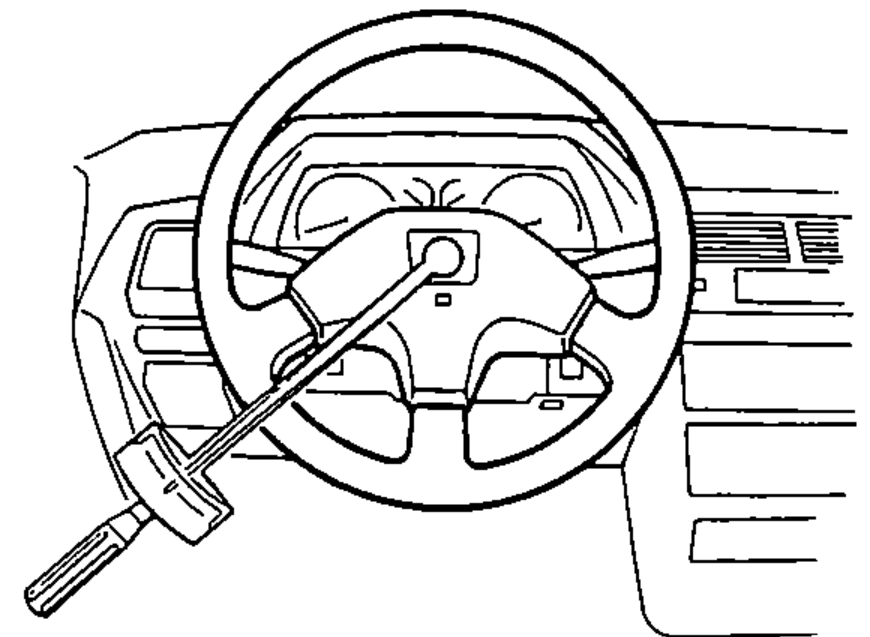

    Install the steering wheel in a straight ahead position.
    Steering wheel installed on the column in a straight ahead position, viewed from inside the cabin.
  4. 13
    Tighten the steering wheel mount nut and torque to 50 N·m (5.0 kg-m, 36 lb-ft).
  5. 14
    Check that the horn works properly, then install the center pad.
