Steering Column - Removal (cont'd)

11-12prose procedure
Continued from 11-11

Removal (cont'd)

  1. 7
    Remove the upper and lower column covers.

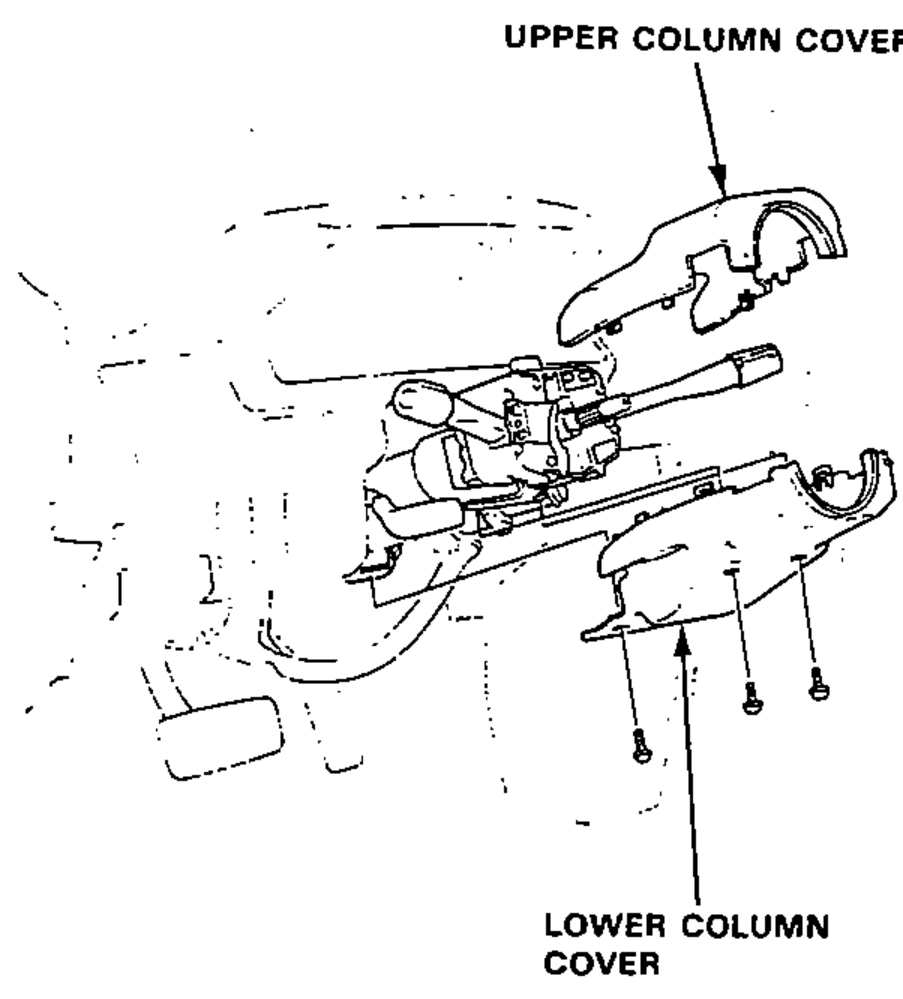

    Steering column with the upper and lower column covers removed, showing the combination switch beneath.
  2. 8
    Disconnect each wire coupler from the combination switch.
  3. 9
    Remove the turn signal cancelling sleeve and combination switch assembly.

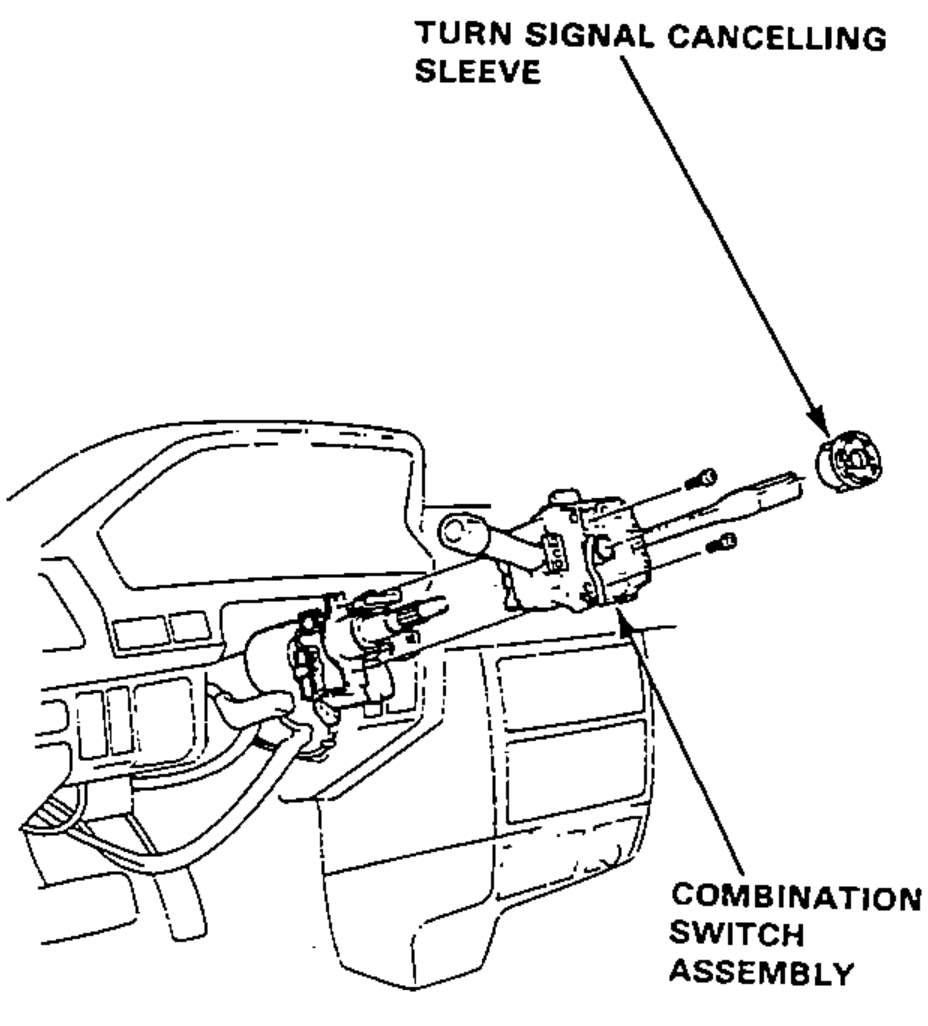

    Steering column with the turn signal cancelling sleeve and combination switch assembly being removed from the dashboard area.
  4. 10
    Remove the lower column bracket.
  5. 11
    Remove the nuts attaching the bending plate guide and bending plate.

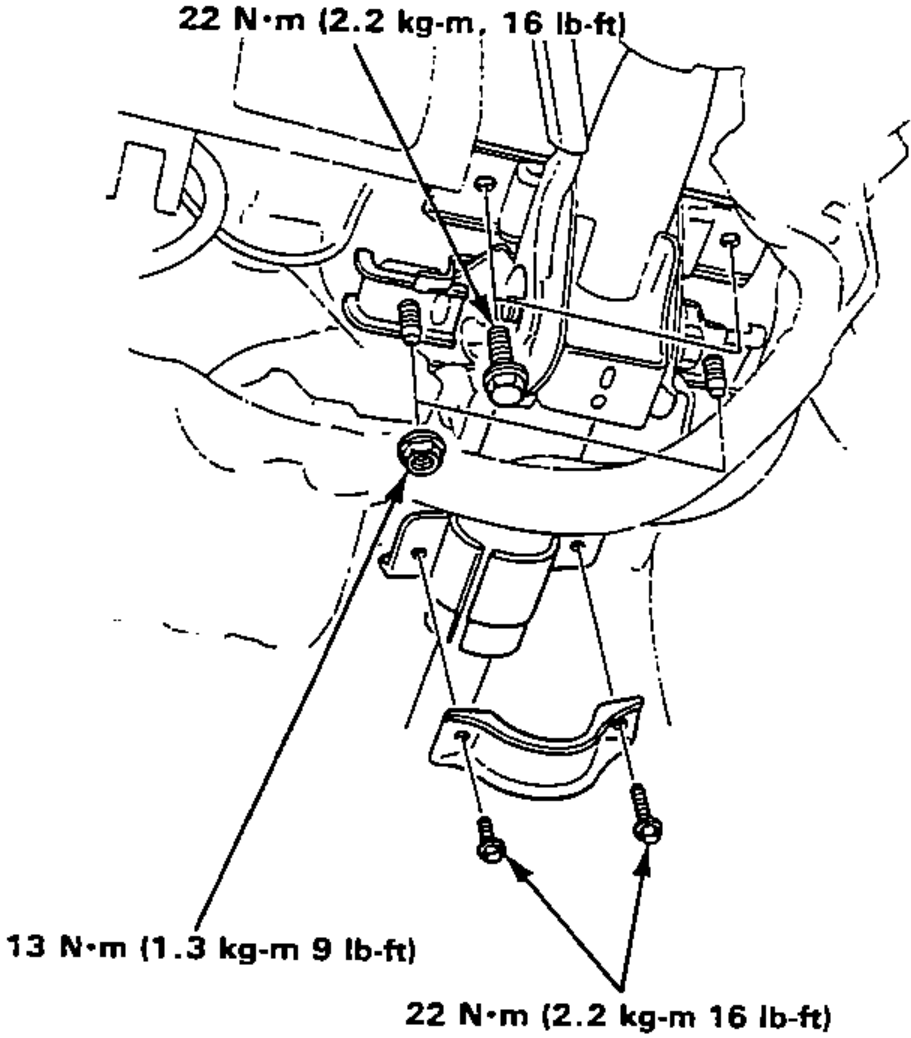

    Lower column bracket, bending plate guide and bending plate at the steering column base, with torque callouts for the nuts and bolts.
  6. 12
    Disconnect each wire coupler from the fuse box at under-dash left side.

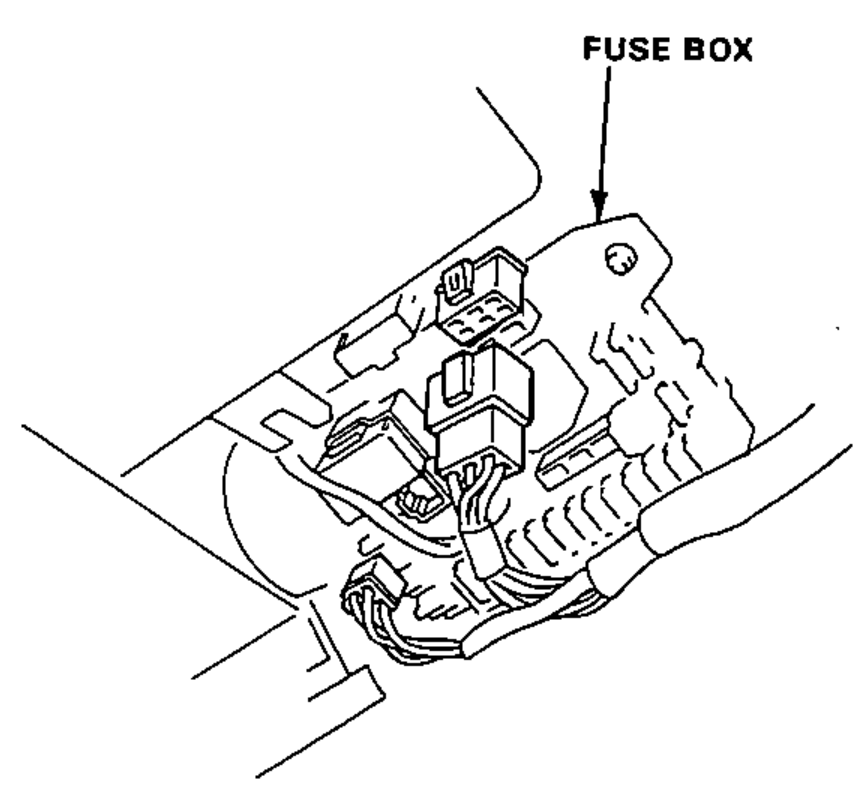

    Under-dash left side fuse box showing the wire couplers to be disconnected.
  7. 13
    Remove the steering column assembly.
Bending plate guide/upper column nut
22N·m
Lower column bracket bolt
13N·m
Bending plate bolt
22N·m
