Steering Gearbox - Overhaul

11-61prose procedure
Continued from 11-60
  1. 22
    Remove the O-rings and circlip from the seal retainer, then remove the cylinder cap from the seal retainer.

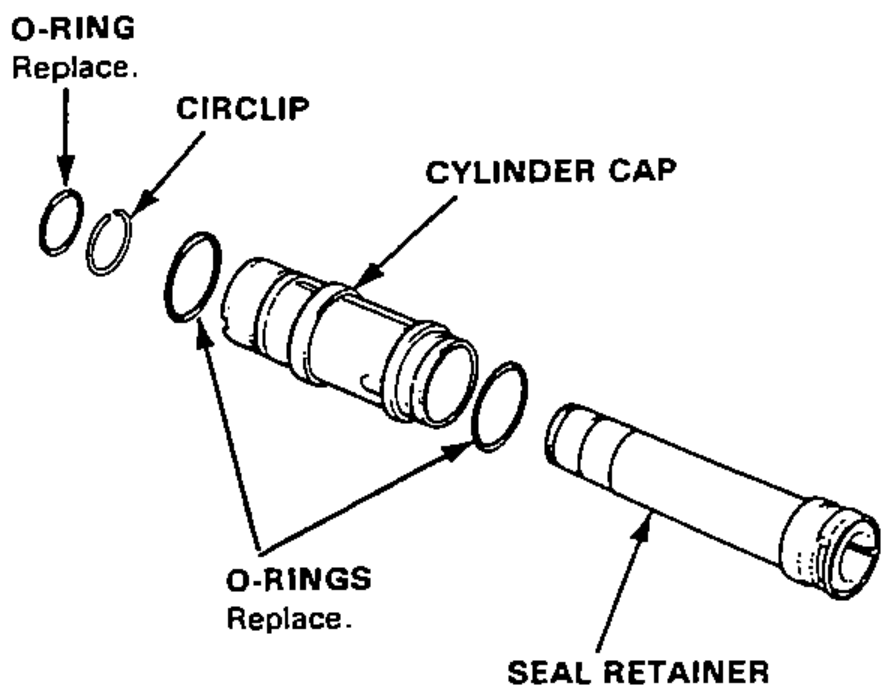

    Exploded view of the seal retainer assembly: O-ring (replace), circlip, cylinder cap, O-rings (replace) and seal retainer.
  2. 23
    Remove the O-rings from the cylinder cap.
  3. 24
    Remove the bushing stopper ring from the seal retainer.

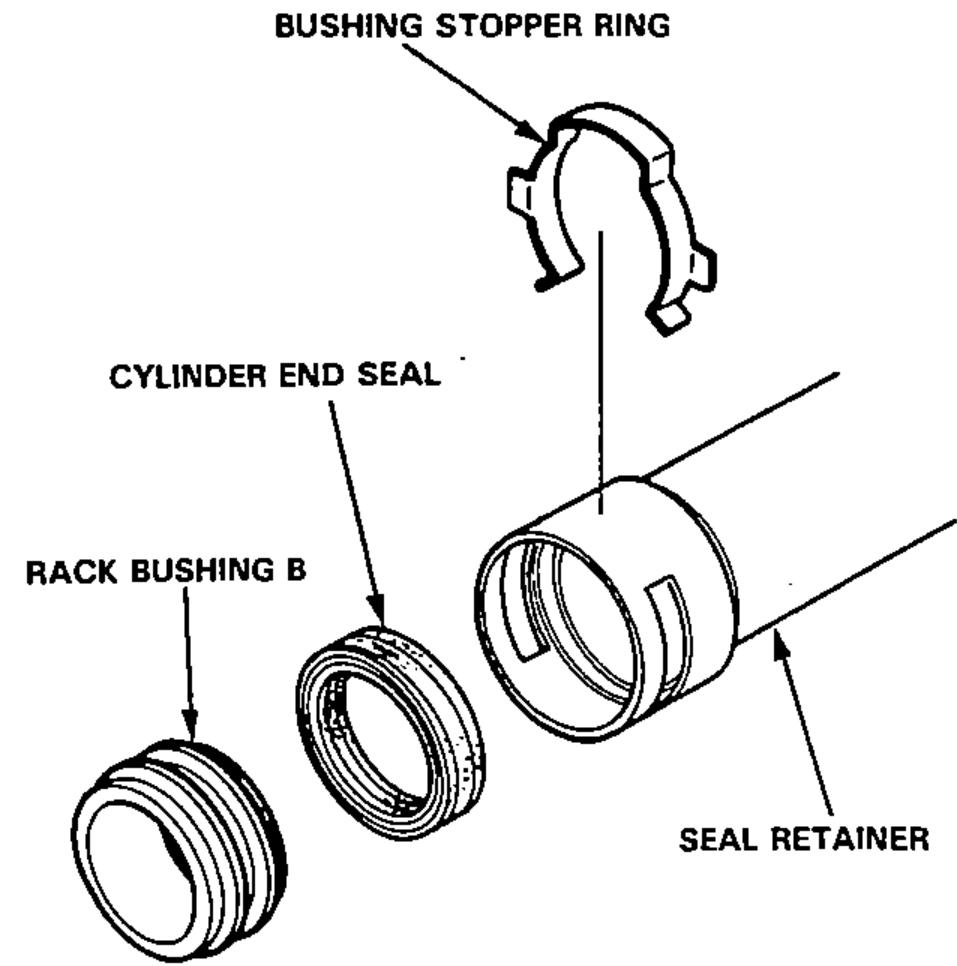

    Exploded view showing removal of the bushing stopper ring, cylinder end seal, rack bushing B and seal retainer.
  4. 25
    Remove the cylinder end seal.
  5. 26
    Carefully pry the piston seal ring and O-ring off the rack.

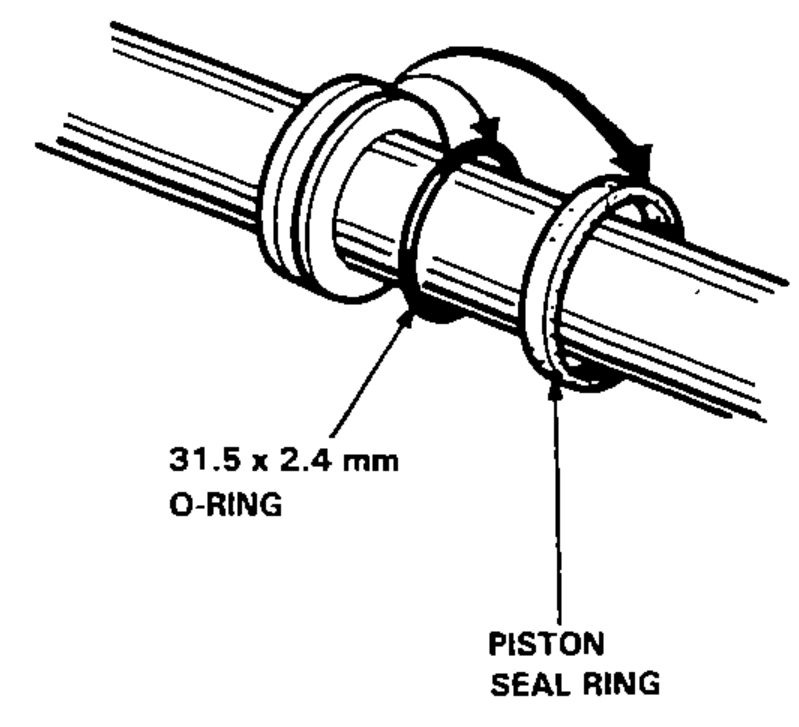

    Piston seal ring and 31.5 x 2.4 mm O-ring being pried off the rack, with an arrow indicating direction. Labels identify the 31.5 x 2.4 mm O-ring and piston seal ring.
  6. 27
    Install a new O-ring on the rack with its narrow edge facing out.
    NOTE: Before reassembling any parts inspect them as described on page 11-46 and make sure they are clean. Replace worn or damaged parts.

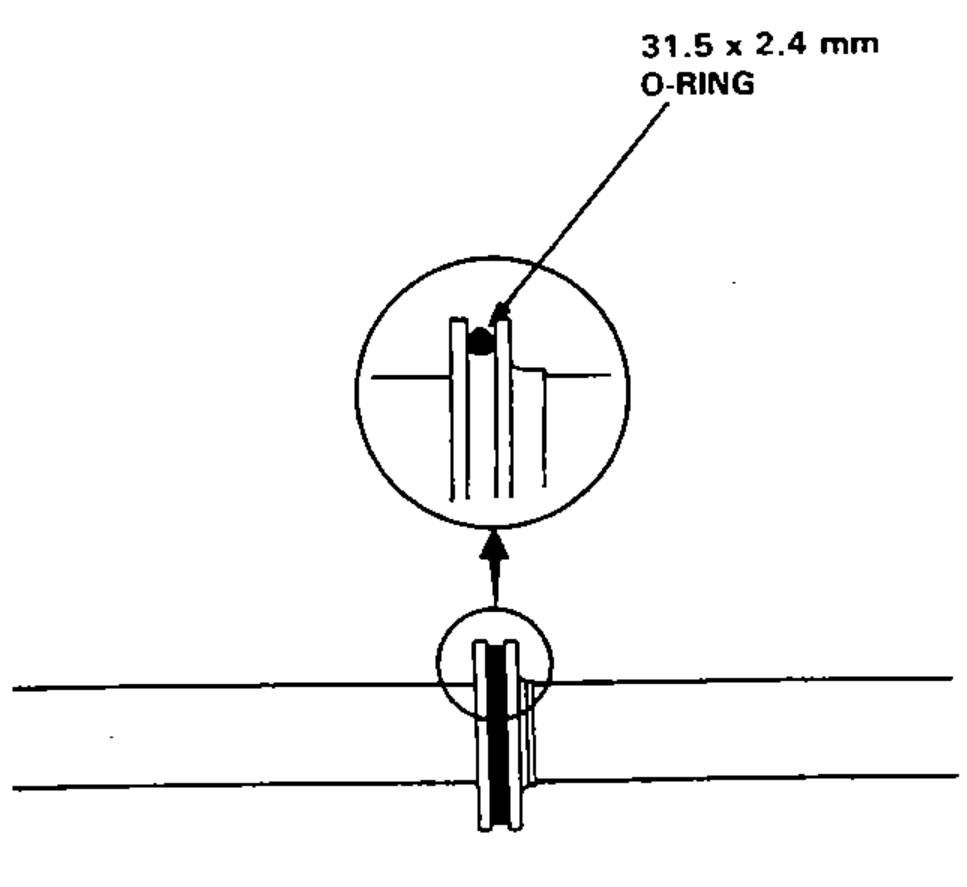

    New 31.5 x 2.4 mm O-ring installed on the rack with its narrow edge facing out; inset shows the O-ring cross-section detail.
