Steering Gearbox - Overhaul (cont'd)
11-68prose procedureOverhaul (cont'd)

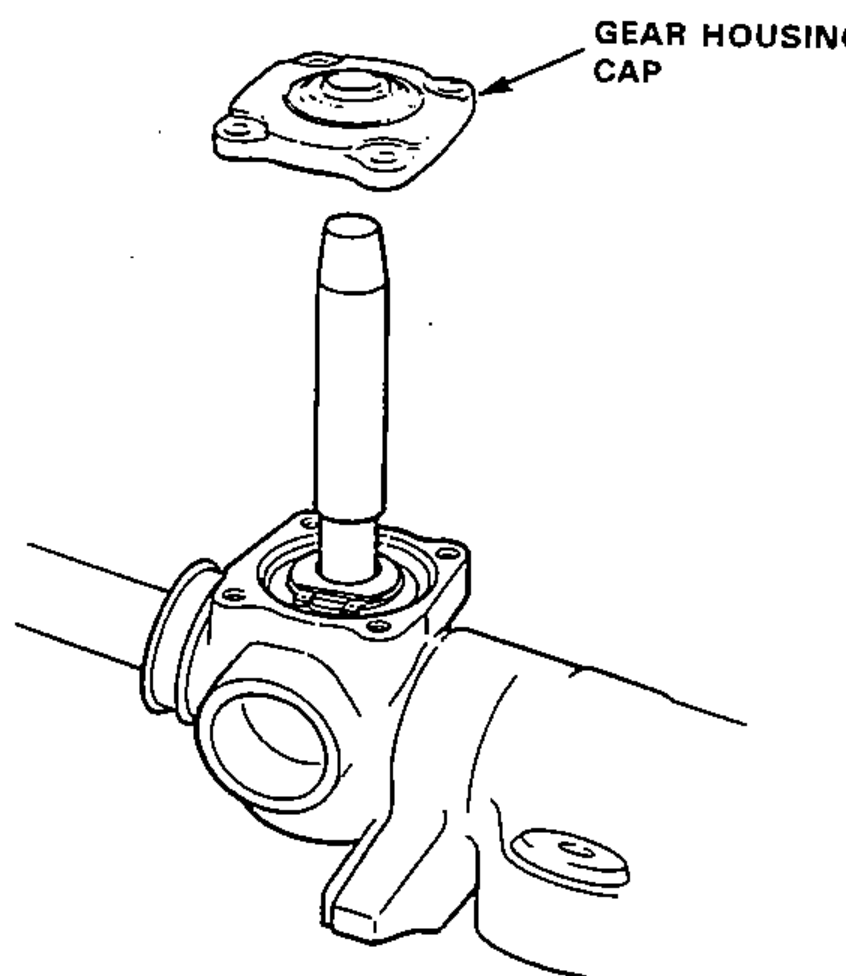

- 58Install the gear housing cap carefully to avoid damaging or distorting lip of the seal, or distorting the seal spring.
- 59Remove the special tool.

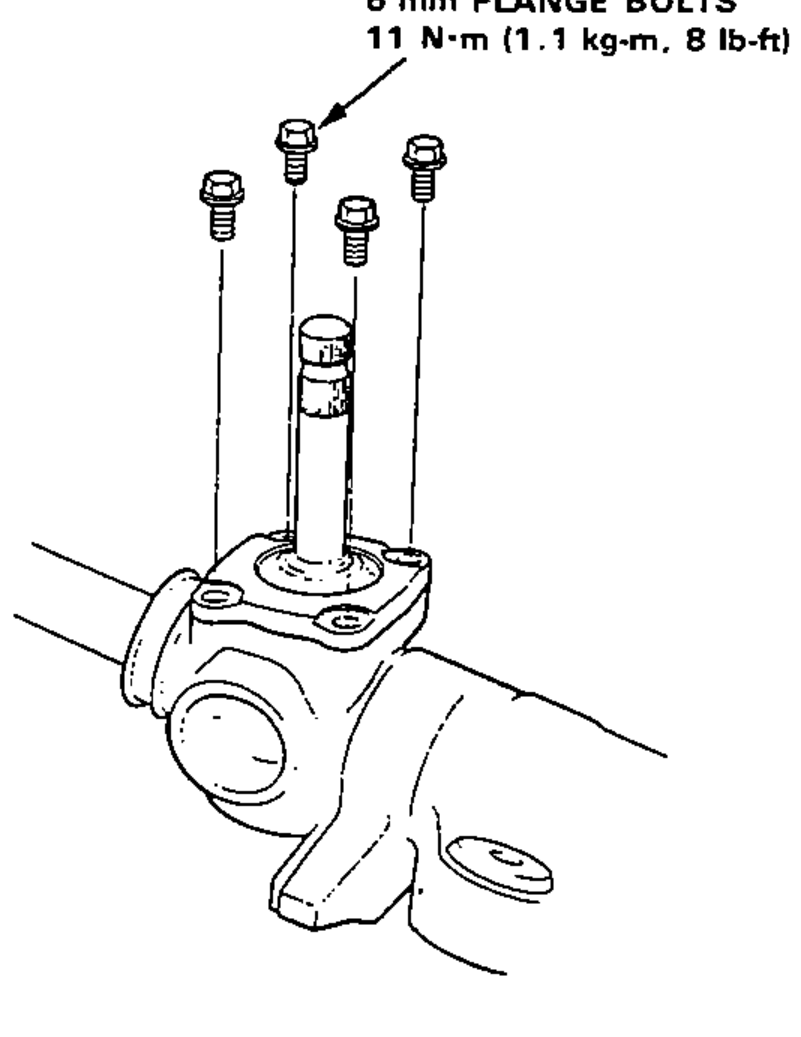

- 60Tighten the four flange bolts.6 mm flange bolts: 11 N·m (1.1 kg-m, 8 lb-ft)
- 61Install the control valve unit on the gear housing.

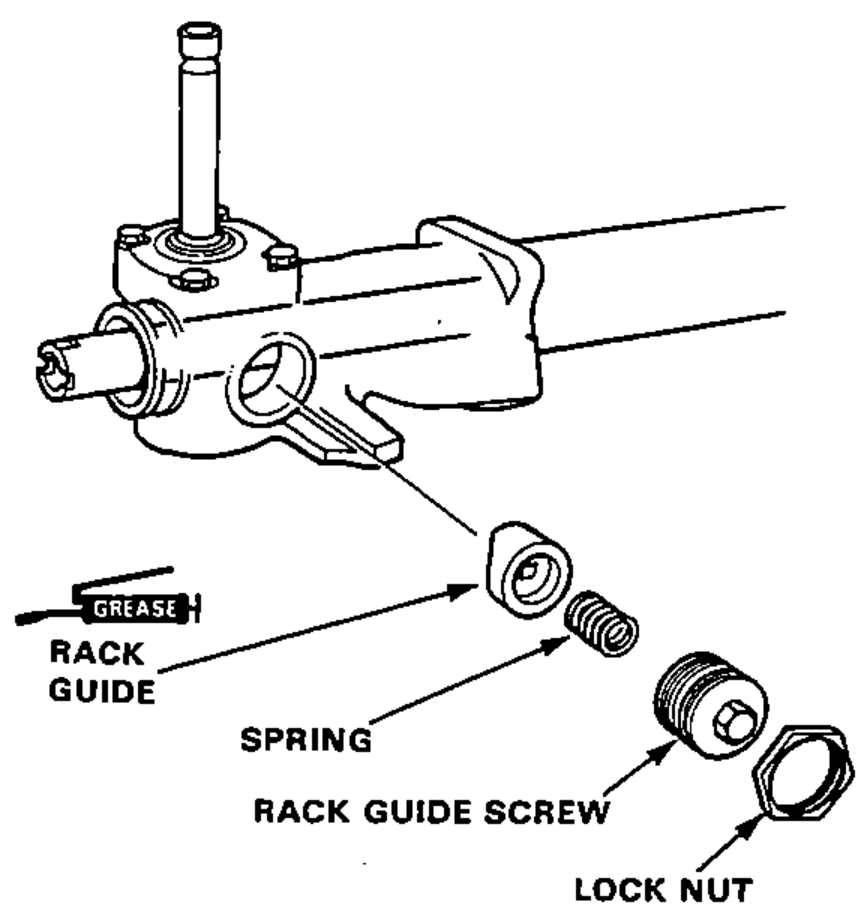

- 62Coat the rack guide with grease.
- 63Install the rack guide, spring and rack guide screw on the gear housing.
- 64Tighten the rack guide screw until it compresses the spring and seats against the rack guide, then loosen it.
- 65Re-tighten it to 4 N·m (0.4 kg-m, 2.9 lb-ft), back off about 20° +5/-0 and install the lock nut on the rack guide screw.

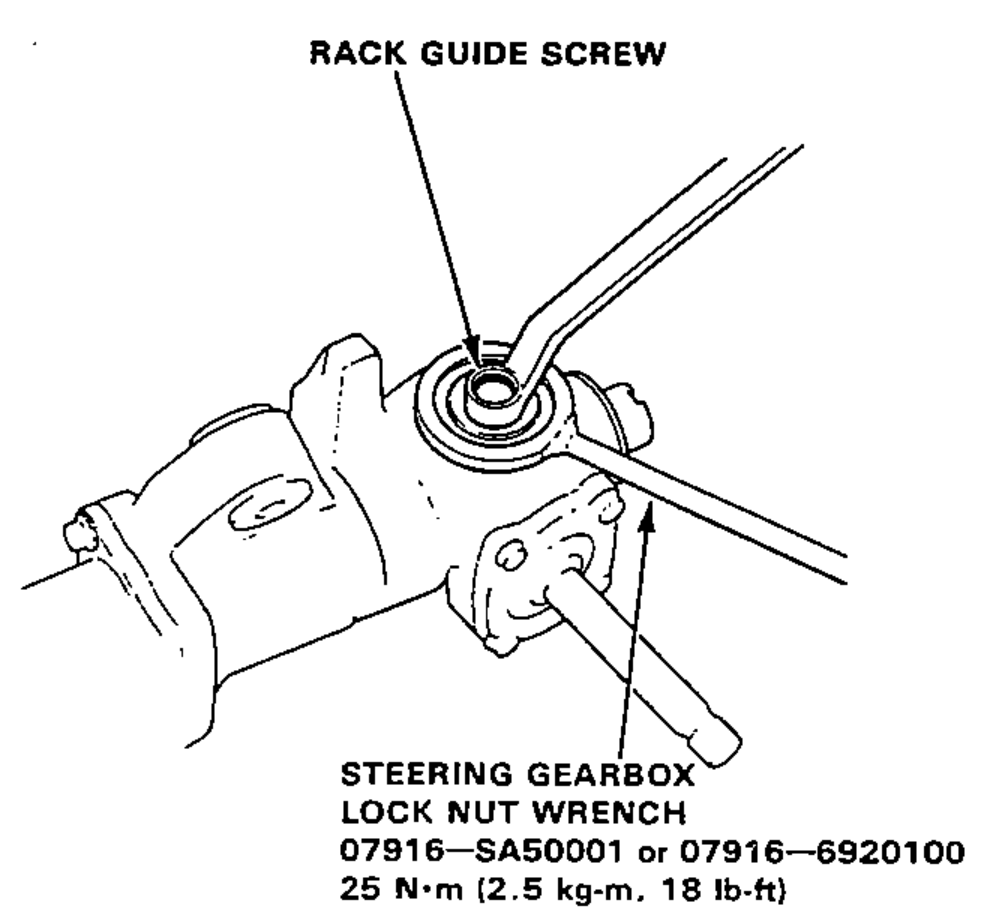

- 66Tighten the lock nut while holding the rack guide screw with the special tool.Lock nut: 25 N·m (2.5 kg-m, 18 lb-ft)
