Fluid Replacement / Pump Pressure Check
11-27prose procedureCheck the reservoir at regular intervals, and add fluid as necessary.
CAUTION
Use only GENUINE HONDA Power Steering Fluid. Using other fluids such as ATF or other manufacturer's power steering fluid will damage the sytem.
| Specification | Value |
|---|---|
| Fluid Replacement CAPACITY | 1.2 liter (1.3 U.S. pt) at change |
Fluid Replacement CAPACITY
1.2 liter (1.3 U.S. pt) at change

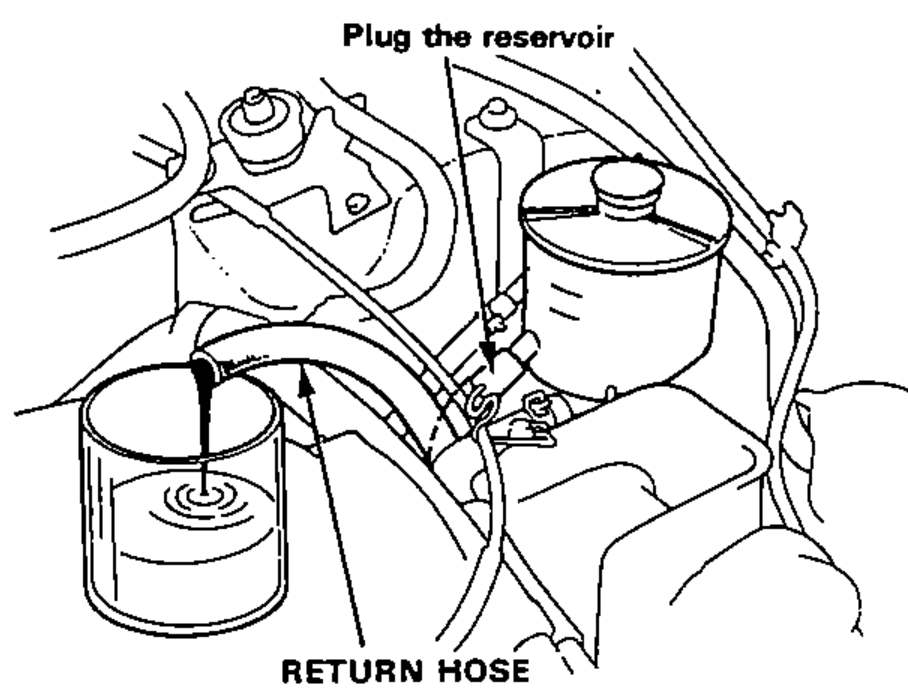

- 1Disconnect the return hose from the gearbox at the reservoir, and put the end in a suitable container.
- 2Start the engine, let it run at idle, and turn the steering wheel from lock-to-lock several times. When fluid stops running out of the hose, shut off the engine. Discard the fluid.
- 3Re-fit the return hose on the reservoir.

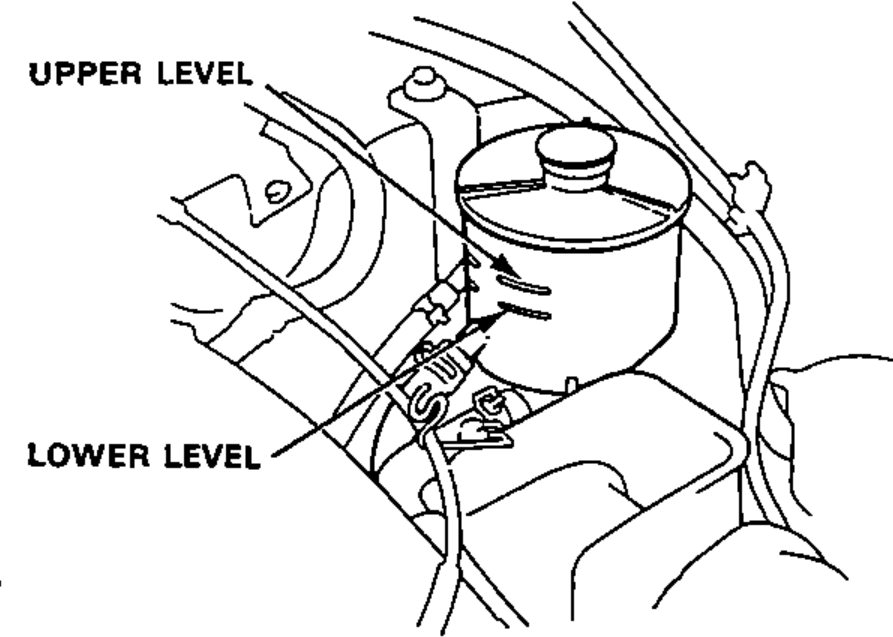

- 4Fill the reservoir to the upper level mark.
- 5Start the engine and run it at fast idle, then turn the steering from lock-to-lock several times to bleed air from the system.
- 6Recheck the fluid level and add some if necessary.CAUTION: Do not fill the reservoir beyond the upper level mark.
Pump Pressure Check
Check the fluid pressure as follows to determine whether the trouble is in the pump or gearbox.
NOTE
First check the power steering fluid level and pump belt tension.

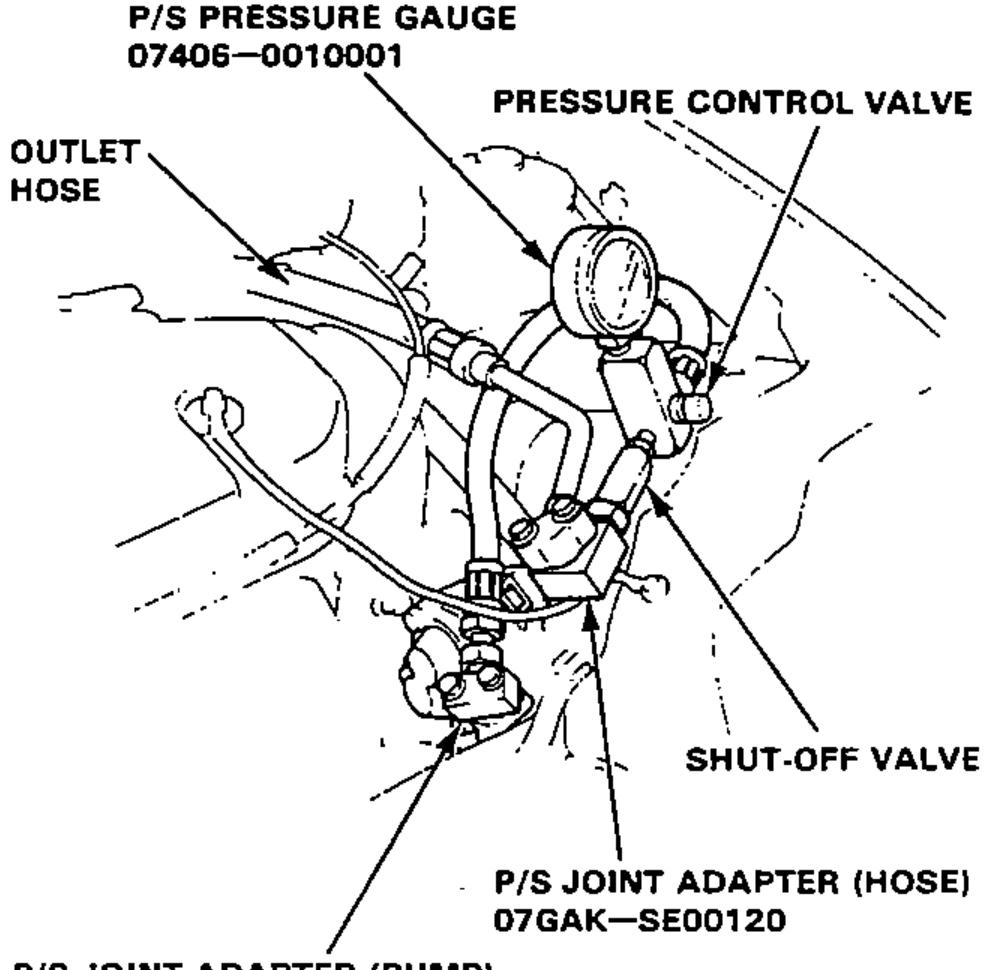

- 1Disconnect the outlet hose from the pump outlet fitting, and install the pump joint adaptor on the outlet.
- 2Install the hose joint adaptor to the outlet hose.
- 3Install the power steering pressure gauge between the pump and hose joint adaptors as shown.
- 4Open the shut-off valve fully.
- 5Open the pressure control valve fully.
(cont'd)
