Valve Body Unit Overhaul

11-47prose procedure
Continued from 11-46

Removal:

  1. 1
    Drain the power steering fluid (page 11-27).
  2. 2
    Remove the gearbox shield.

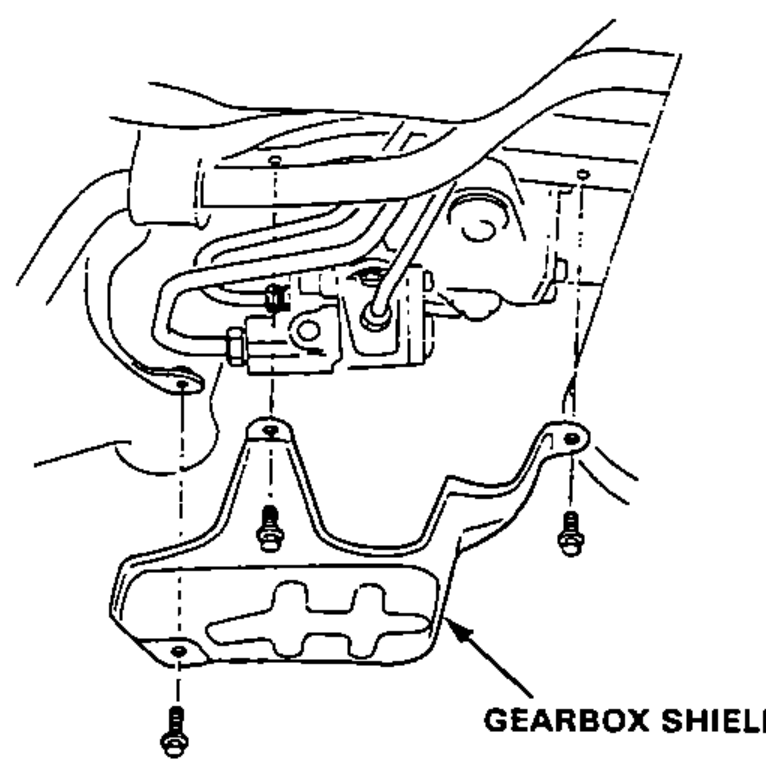

    Underside view of the gearbox showing the gearbox shield and its mounting bolts being removed.
  3. 3
    Using solvent and a brush, wash any oil and dirt off the control unit, its lines, and that end of the gearbox. Blow dry with compressed air.
  4. 4
    Using flare nut wrenches, disconnect the four lines from the control unit.

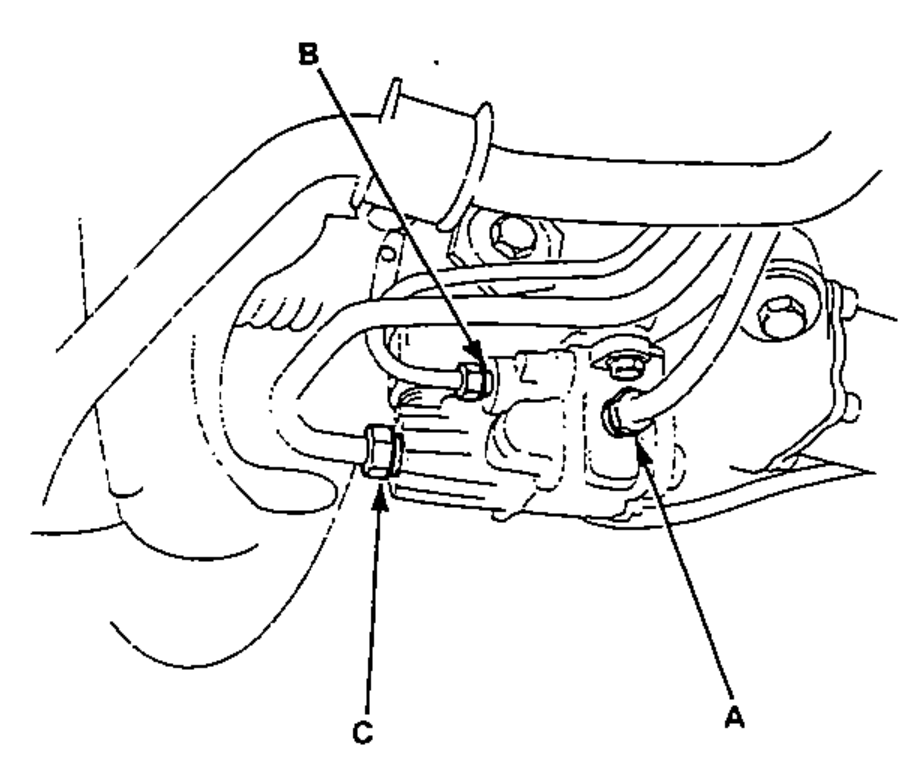

    View of the four fluid lines connected to the control unit, with leader letters B (top) and C / A (bottom) identifying the line connections to disconnect with flare nut wrenches.

Disassembly:

  1. 5
    Remove the two 6 mm flange bolts and remove the control unit from the gearbox.

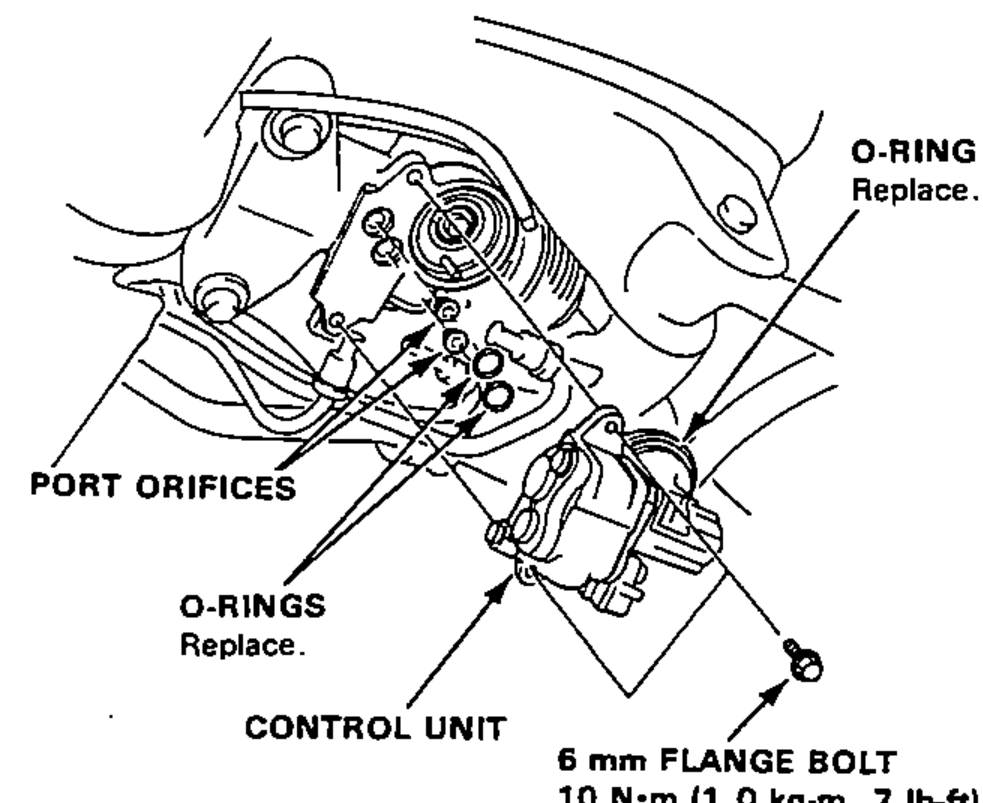

    Control unit at the gearbox end showing the O-ring, port orifices and O-rings to remove, and the 6 mm flange bolt mounting.
  2. 6
    Remove the O-rings and port orifices from the gearbox.
  3. 7
    Remove the O-rings from the control unit.
  4. 8
    Remove the two 6 mm flange bolts, and remove the cap from the valve body.

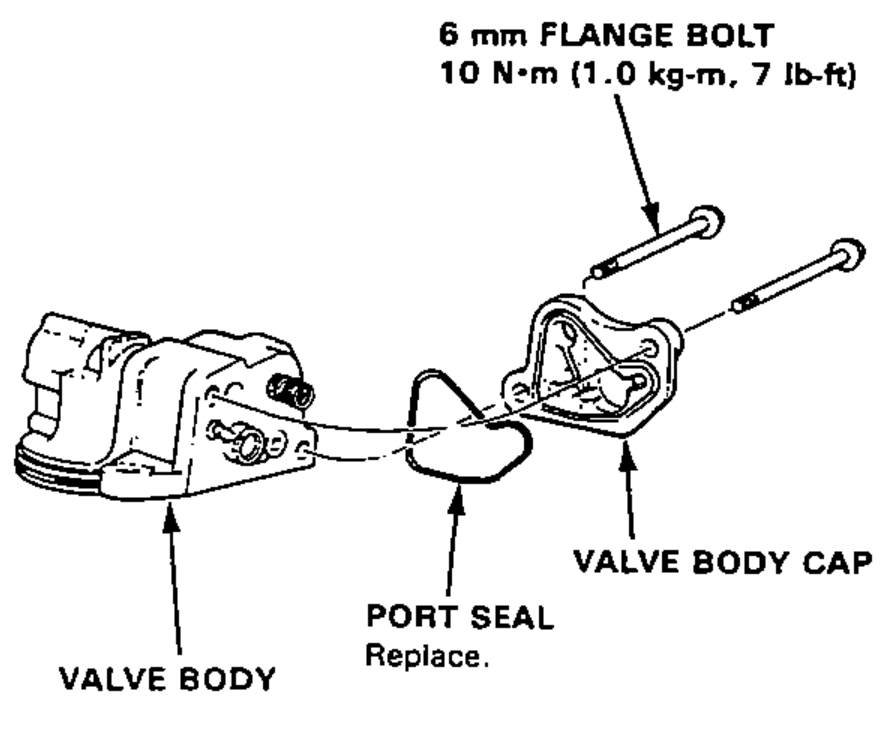

    Valve body, port seal and valve body cap separated, showing the two 6 mm flange bolts that secure the cap.
  5. 9
    Remove the port seal from the cap.
(cont'd)
