Honda CRX silhouetteCRX

Steering Column - Installation (cont'd)

11-18prose procedure
Continued from 11-17

Installation (cont'd)

  1. 10

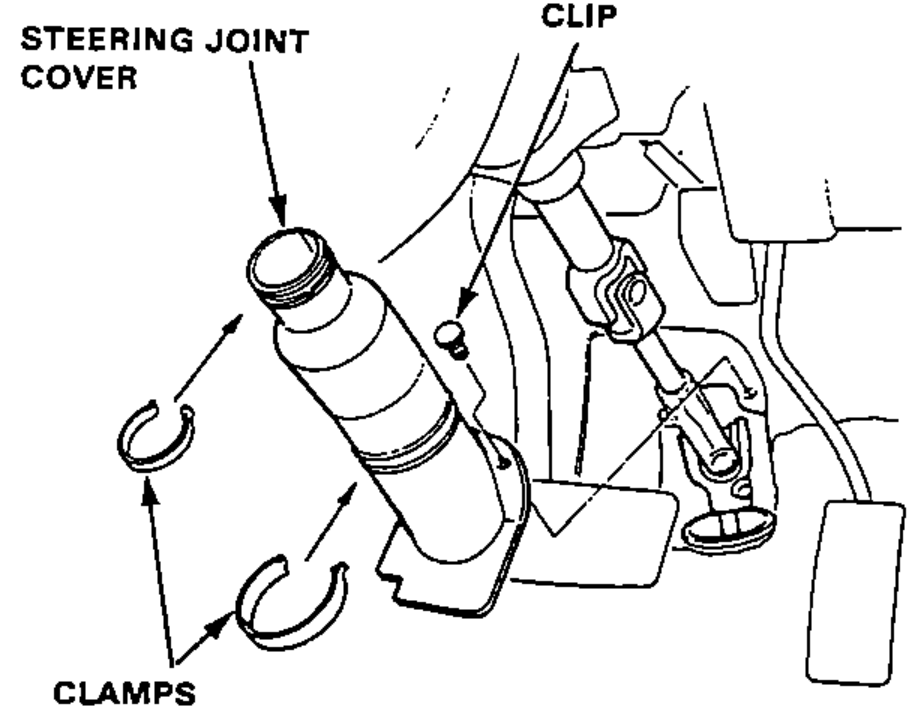

    Install the steering joint cover with the clamps and clip.
    Steering joint cover being installed with its clamps and clip on the steering joint.
  2. 11

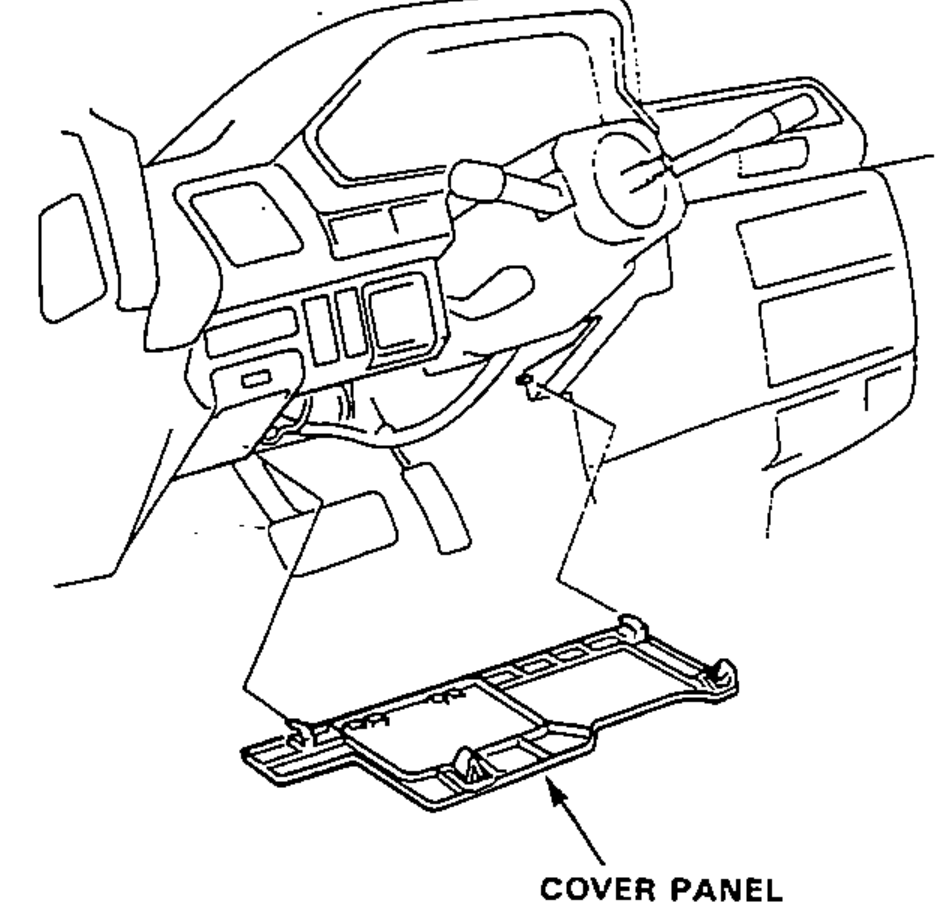

    Install the cover panel.
    Cover panel being installed under the dashboard / steering column.
  3. 12

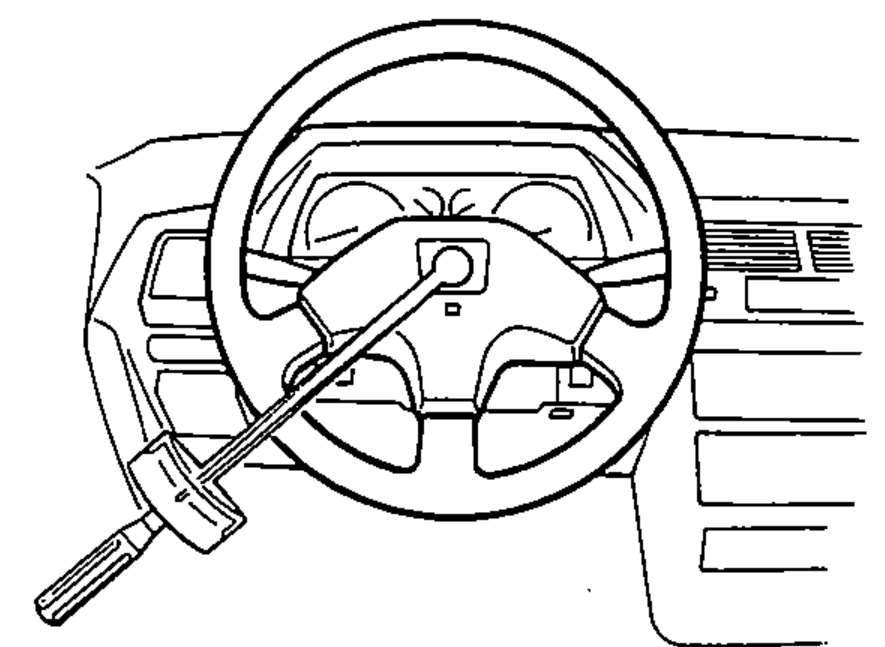

    Install the steering wheel in a straight ahead position.
    Steering wheel installed in straight-ahead position with the mount nut being tightened by a torque wrench.
  4. 13
    Tighten the steering wheel mount nut and torque to 50 N·m (5.0 kg-m, 36 lb-ft).
  5. 14
    Check that the horn works properly, then install the center pad.
Steering wheel mount nut
50N·m
