Steering Column - Installation (cont'd)

11-17prose procedure
Continued from 11-16
  1. 3

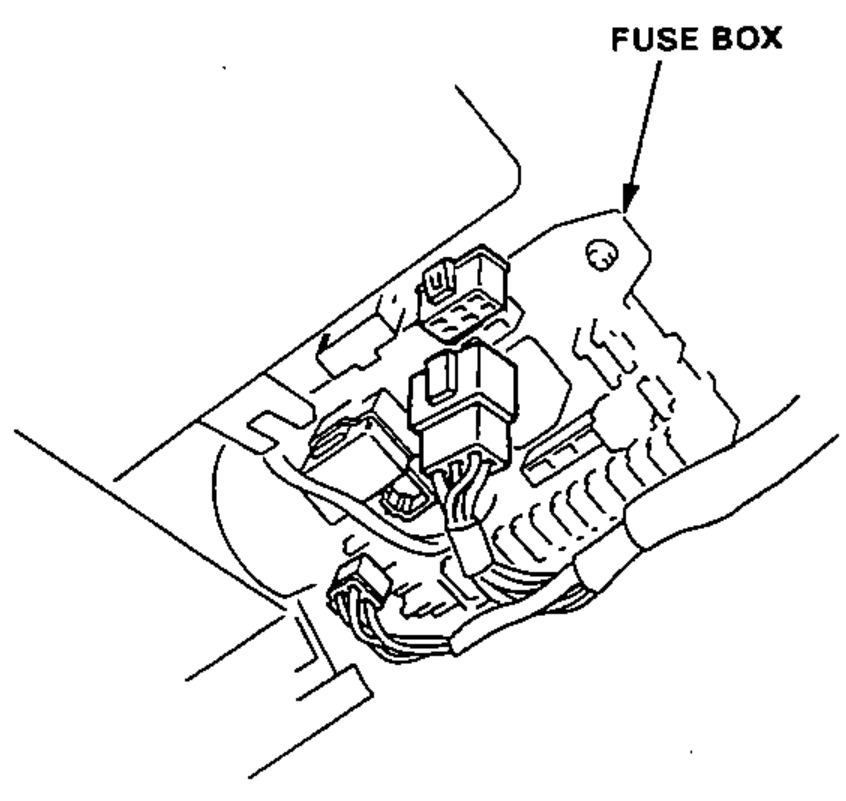

    Connect each wire coupler to the fuse box at the under dash left side.
    Fuse box at the under-dash left side with wire couplers to be connected.
  2. 4

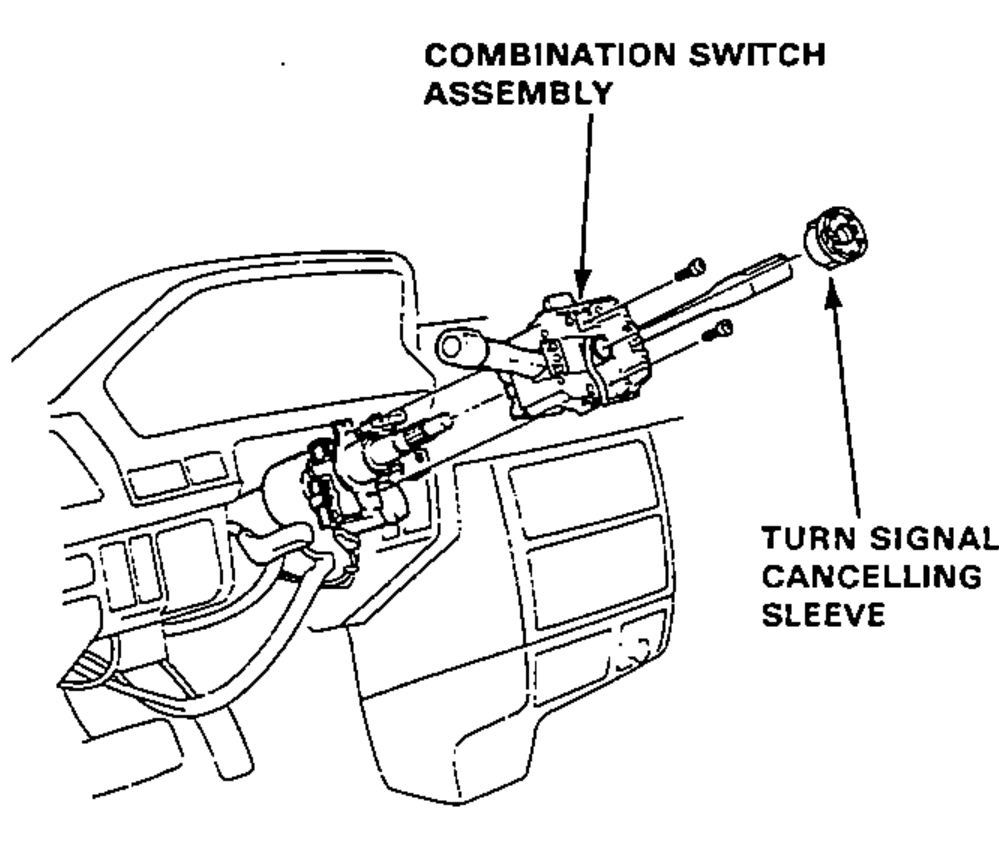

    Install the combination switch assembly and turn signal cancelling sleeve.
    Combination switch assembly and turn signal cancelling sleeve being installed onto the steering column at the dashboard.
  3. 5
    Connect each wire coupler to the combination switch.
  4. 6

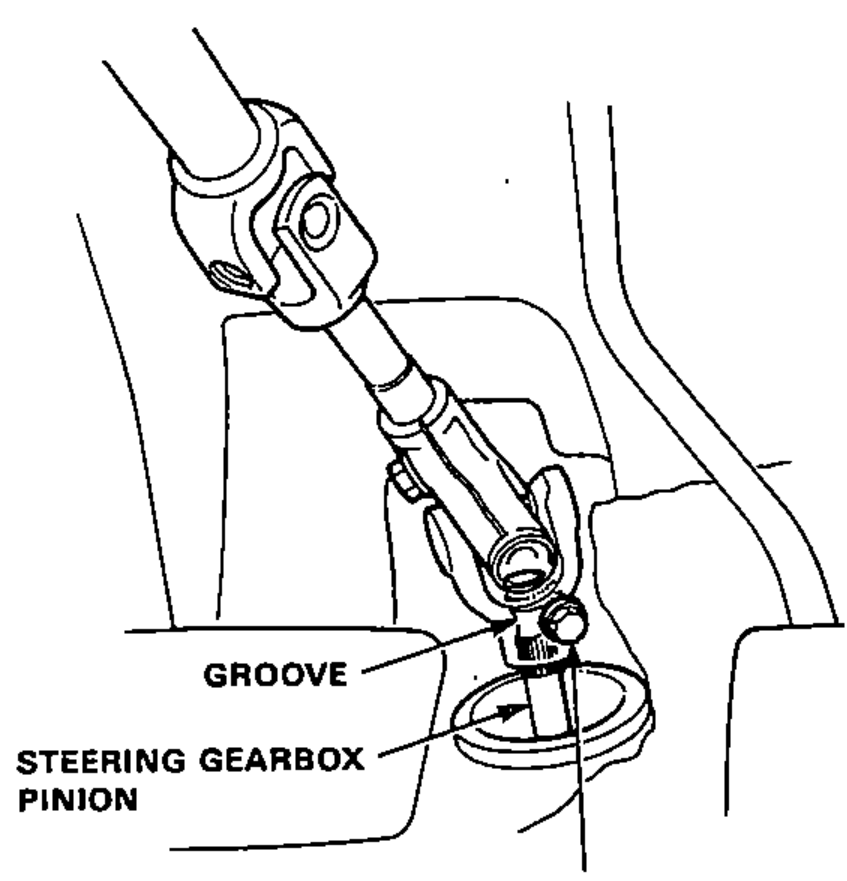

    Loosely install the steering joint on the steering gearbox pinion.
    Be sure that the lower bolt is securely in the groove in the steering gearbox pinion.
    Steering joint loosely installed on the steering gearbox pinion, showing the lower bolt seated in the groove of the pinion.
  5. 7
    Tighten the steering column mounting bolts, nuts and bracket loosely installed in step 2.
  6. 8
    Tighten the steering joint lower and top bolts.
  7. 9

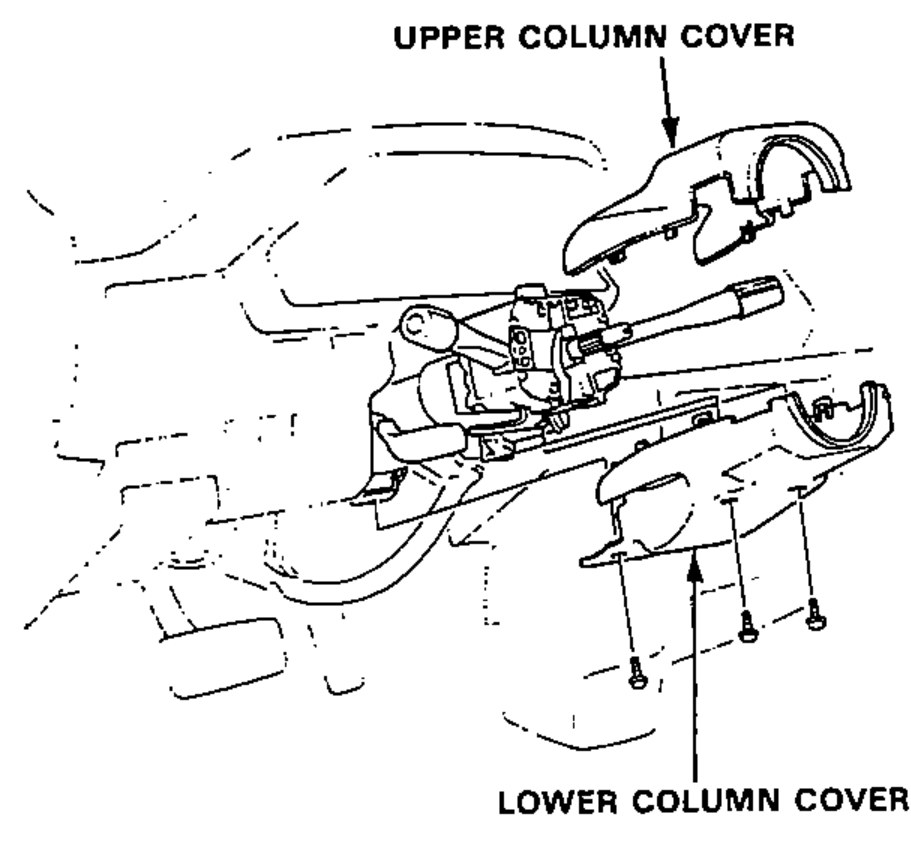

    Install the upper column cover and lower column cover.
    Upper column cover and lower column cover being installed around the steering column.
Steering joint lower bolt final
22N·m
