Honda CRX silhouetteCRX

Steering Gearbox — Valve Body Unit Overhaul (cont'd)

11-50prose procedure
Continued from 11-49

Valve Body Unit Overhaul (cont'd)

  1. 19

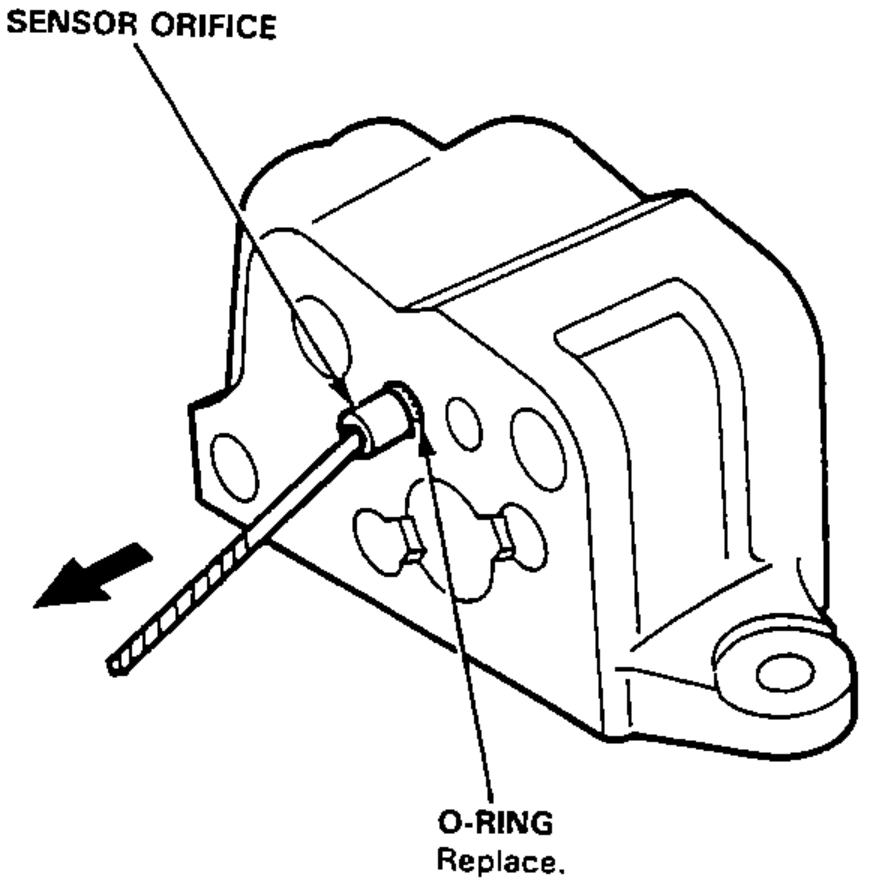

    Using a 1.5 mm (1/16") drill bit, remove the sensor orifice and O-ring.
    Valve body with a drill bit being used to push out the sensor orifice and O-ring; arrow shows the direction of removal.
  2. 20

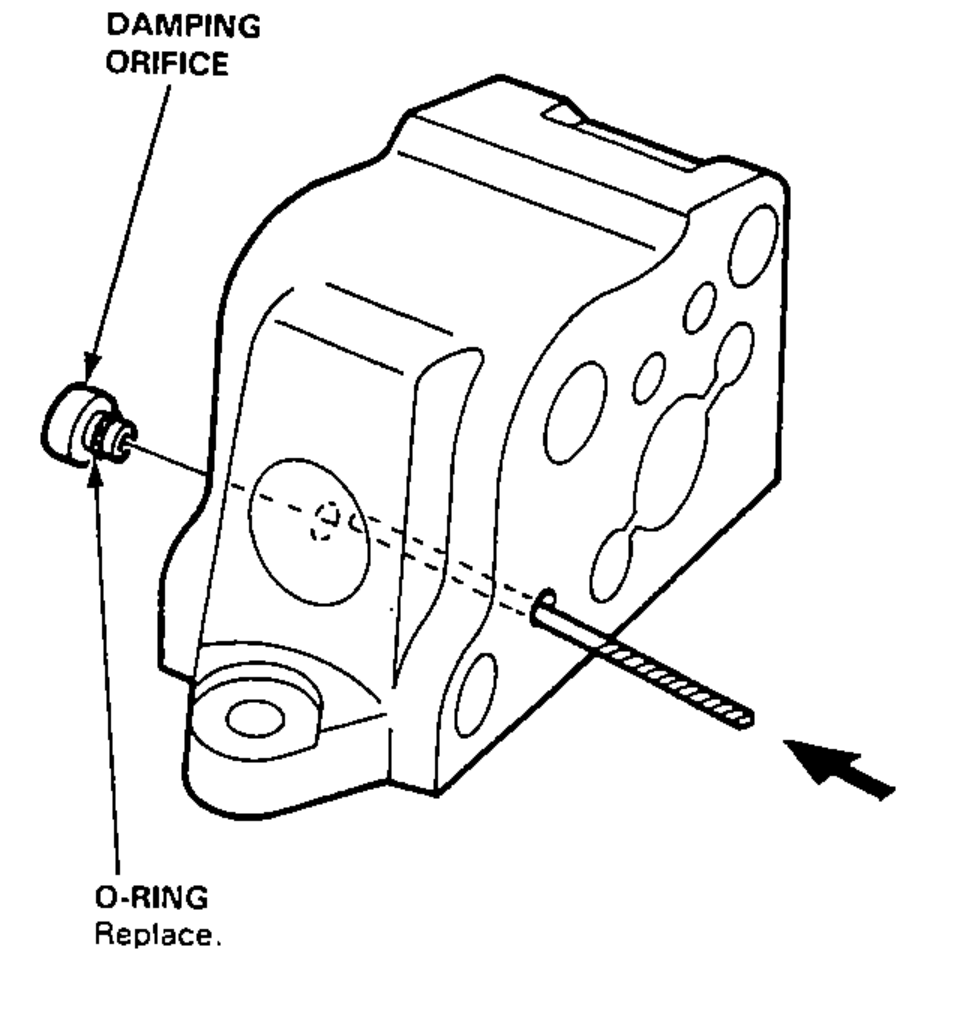

    Using 1.5 mm (1/16") drill bit, push the damping orifice and O-ring out of the valve body.
    CAUTION: Grind the shank end of the drill bit flat before using.
    Valve body with a drill bit being used to push the damping orifice and O-ring out; arrow shows the direction of removal.
