Steering Column Installation

11-35prose procedure
  1. 3

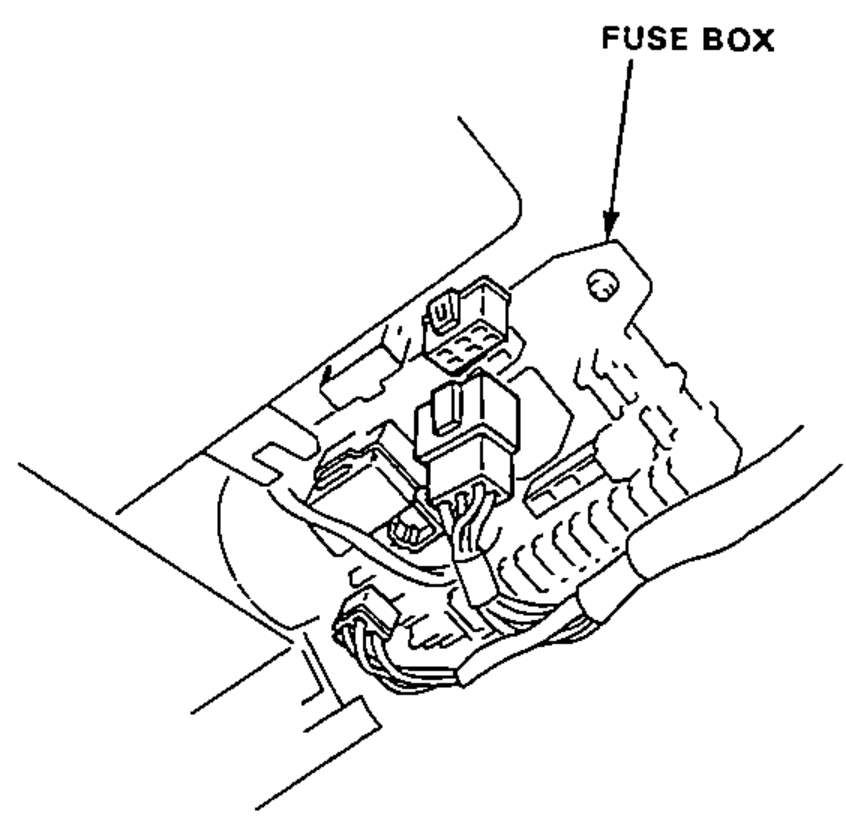

    Connect each wire coupler to the fuse box at the under dash left side.
    Under-dash view at the left side showing the fuse box where the wire couplers connect.
  2. 4

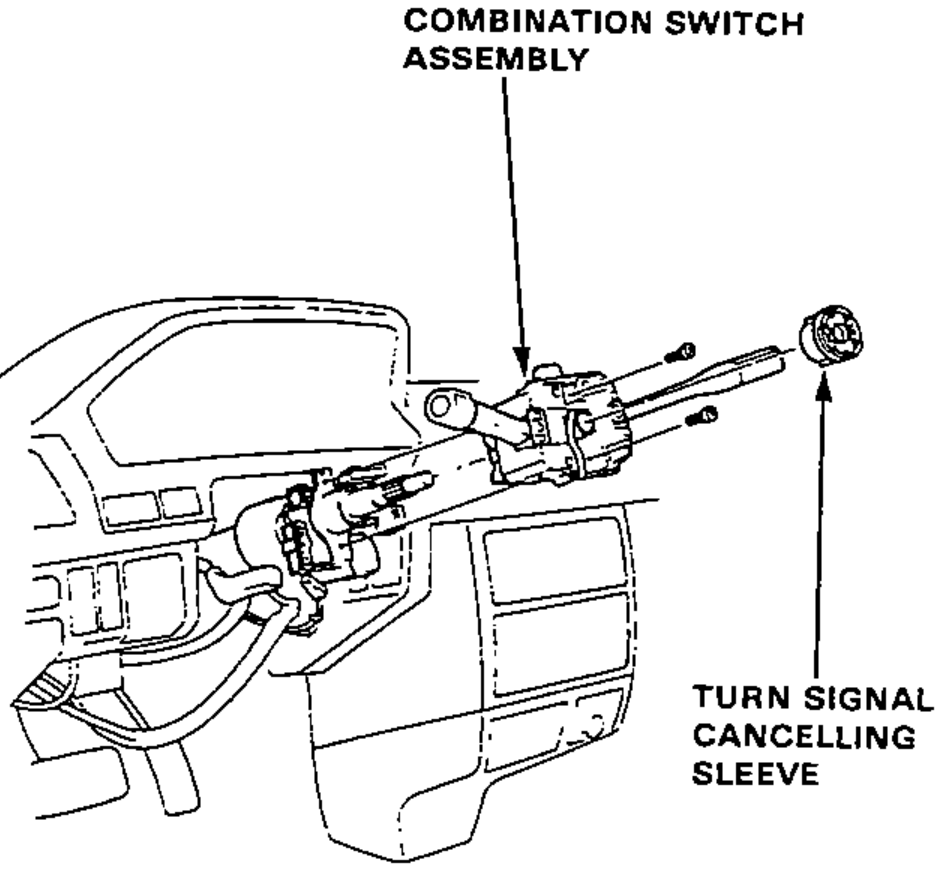

    Install the combination switch assembly and turn signal cancelling sleeve.
    Combination switch assembly mounted on the steering column with the turn signal cancelling sleeve shown exploded to the right.
  3. 5
    Connect each wire coupler to the combination switch.
  4. 6

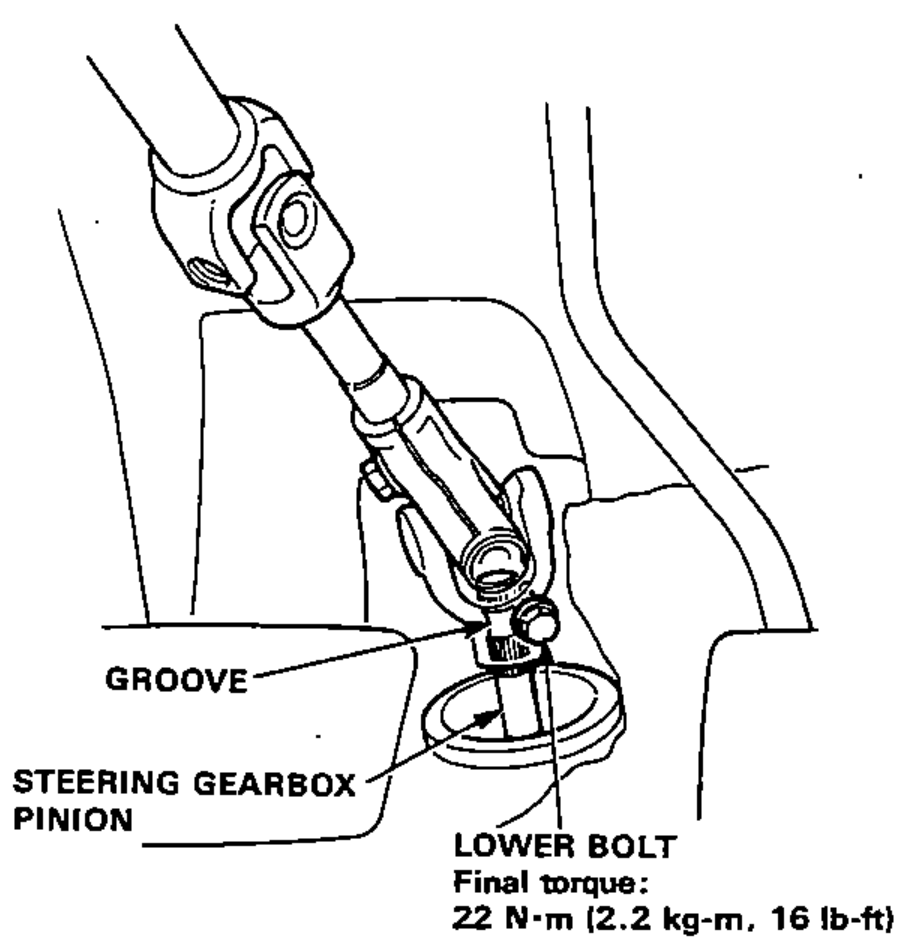

    Loosely install the steering joint on the steering gearbox pinion.
    NOTE: Be sure that the lower bolt is securely in the groove in the steering gearbox pinion.
    Lower bolt final torque: 22 N·m (2.2 kg-m, 16 lb-ft)
    Steering joint installed on the steering gearbox pinion, showing the groove and the lower bolt seating.
  5. 7
    Tighten the steering column mounting bolts, nuts and bracket loosely installed in step 2.
  6. 8
    Tighten the and upper steering joint lower and top bolts.
  7. 9

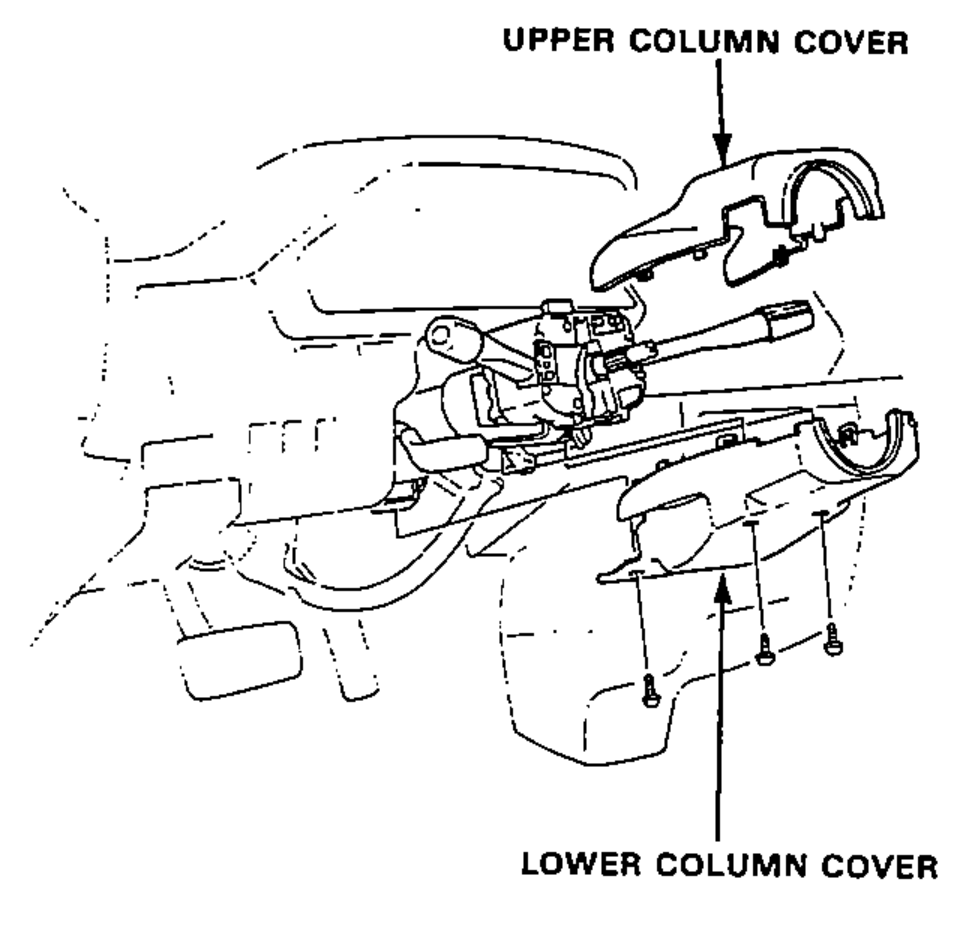

    Install the upper column cover and lower column cover.
    Upper and lower column covers being installed over the steering column.
