Steering Pump — Control Valve Inspection and Replacement (cont'd)

11-41prose procedure
Continued from 11-40
  1. 3
    Remove the valve spring from the pump housing.

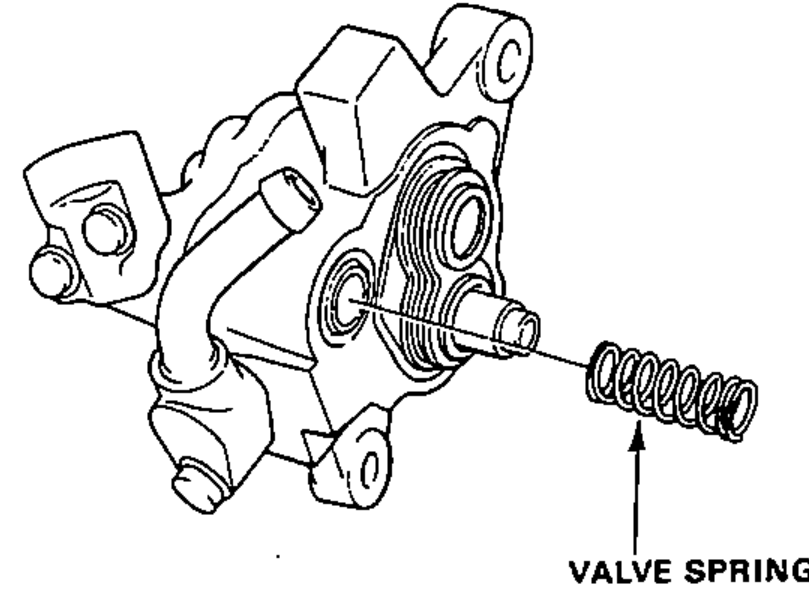

    Valve spring being removed from the pump housing.
  2. 4
    Check for wear, burrs, and other damage to the edges of the grooves in the valve.
    Detail of the control valve showing the grooves to check for wear and damage to edges.
  3. 5
    Slip the valve back in the pump and check that it moves in and out smoothly. If OK, go on to step 6, if not, replace the valve:
    The original valve was selected for a precise fit in the pump housing bore, so make sure the new one has the same identification mark.

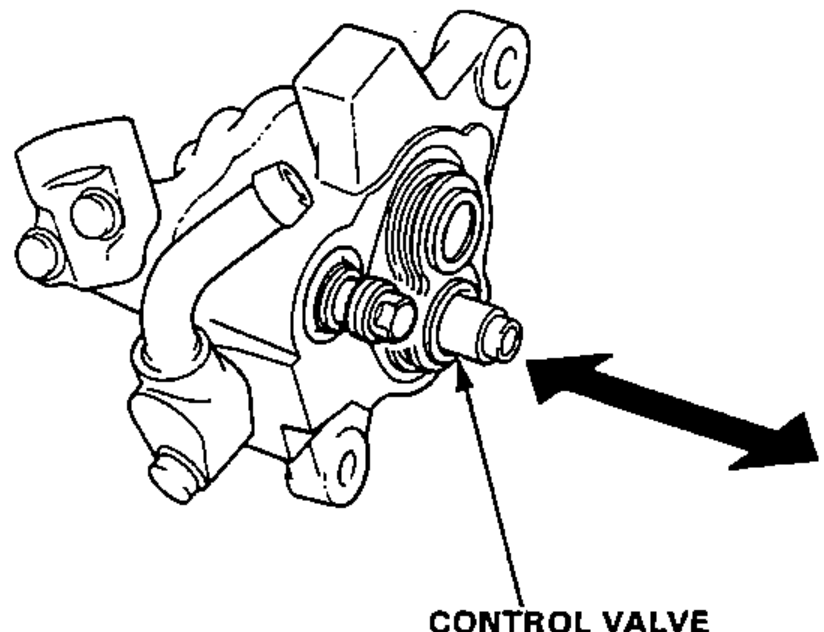

    Control valve slipped back into the pump and checked for smooth in-and-out movement (arrow).
A
Part Number56350-PC1-010
Part NameCONTROL VALVE A
Size mm(in)15.995-16.000 (0.6297-0.6299)
Without mark
Part Number56360-PC1-010
Part NameCONTROL VALVE B
Size mm(in)16.000-16.006 (0.6299-0.6302)
