Steering Gearbox — Valve Body Unit Overhaul (cont'd)

11-48prose procedure
Continued from 11-47

Valve Body Unit Overhaul (cont'd)

  1. 10

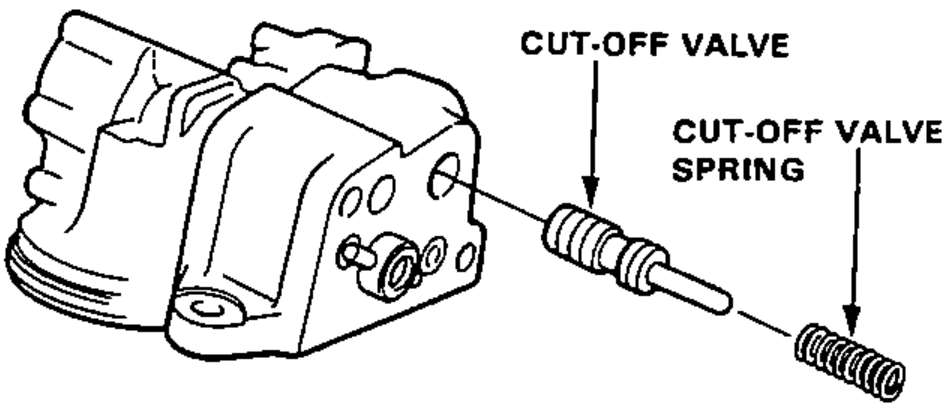

    Remove the cut-off valve and spring from the valve body.
    Valve body with the cut-off valve and cut-off valve spring being withdrawn from it.
  2. 11
    Check the cut-off valve:
    The cut-off valve is sized to fit the valve body, so, if you replace it, make sure the new valve has the same identification mark on it.
    If the valve body is damaged, replace all three parts (valve body, cut-off valve and control valve) as a set.

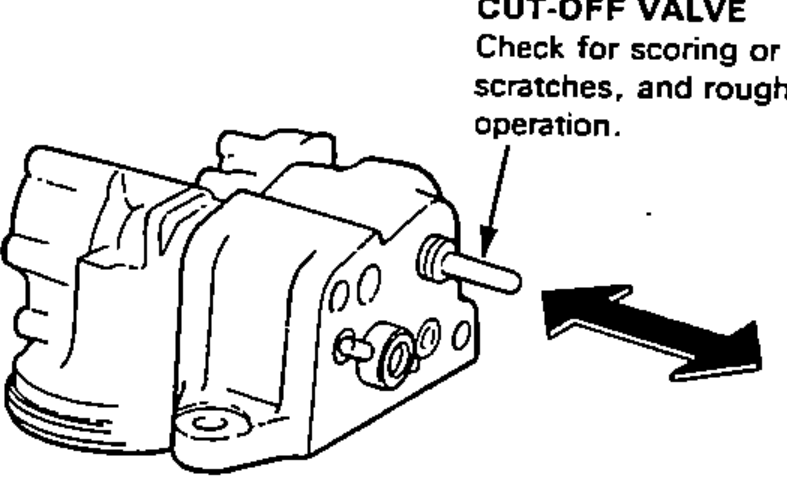

    Cut-off valve being slid back into the valve body to check for free movement; arrow indicates checking for smooth sliding.
  3. 12
    Separate the valve body and port housing.

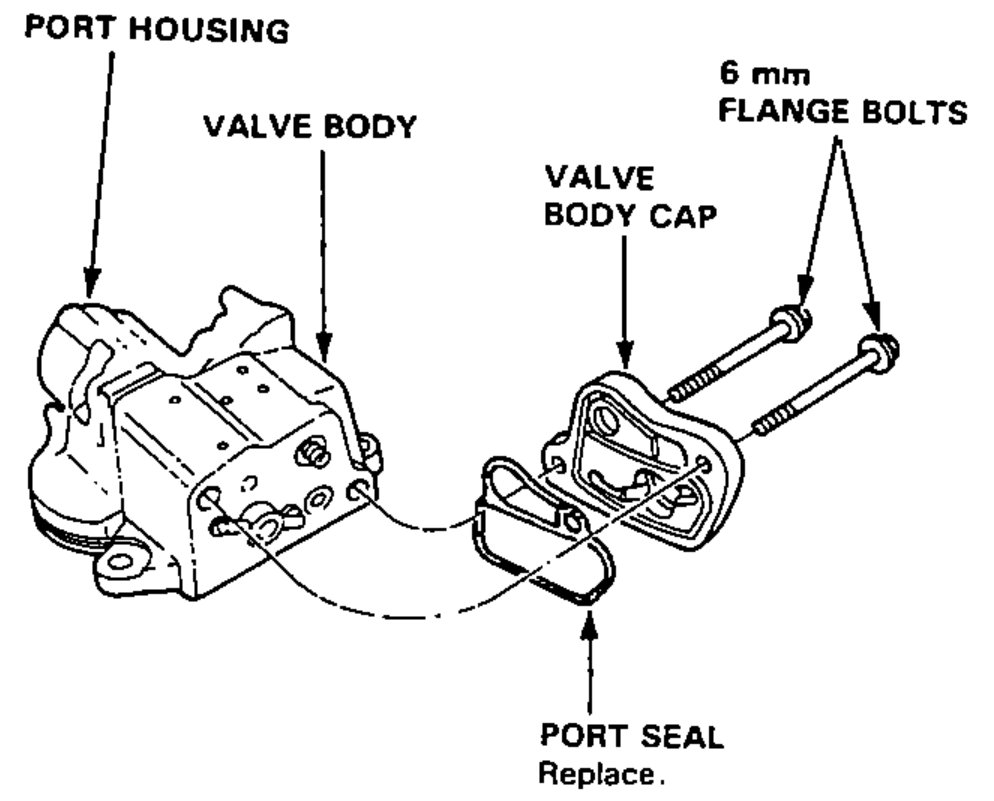

    Port housing and valve body separated, showing the valve body cap, 6 mm flange bolts and the port seal to remove.
  4. 13
    Remove the seal and dowel pins from the port housing.
A
Outside diameter10.000-10.005 mm (0.3937-0.3939 in)
Part number53650-SB4-950
B
Outside diameter9.995-10.000 mm (0.3935-0.3937 in)
Part number53651-SB4-950
C
Outside diameter9.990-9.995 mm (0.3933-0.3935 in)
Part number53652-SB4-950
