Steering Gearbox Removal

11-55prose procedure
  1. 14
    Using solvent and a brush, wash any oil and dirt off the control unit, its lines, and that end of the gearbox. Blow dry with compressed air.
  2. 15
    Disconnect the three lines from the control unit.

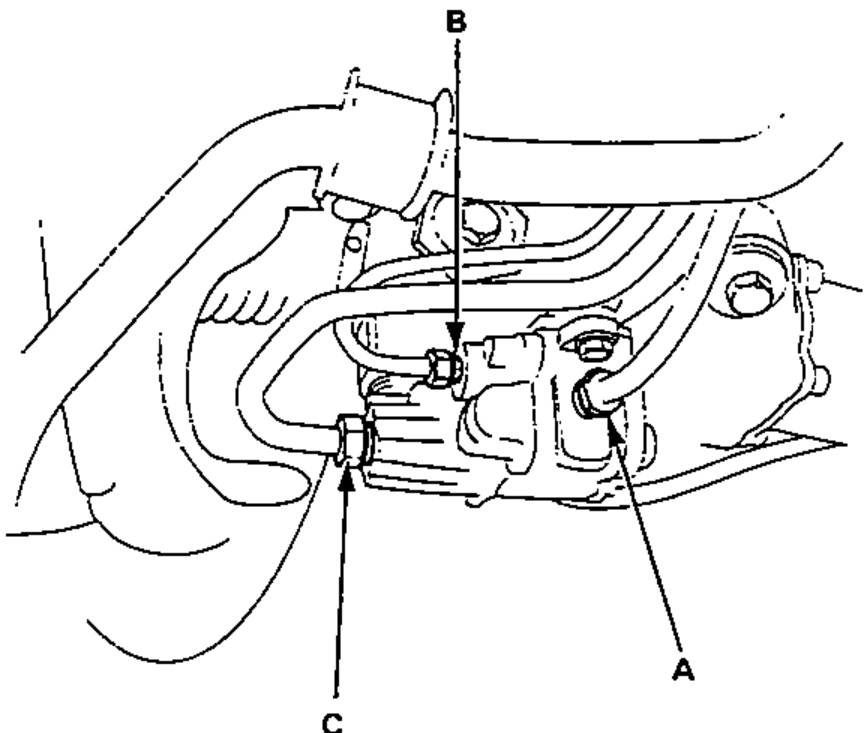

    Underside view of the power-steering control unit on the end of the gearbox showing the three lines to be disconnected, labelled A (from pump), B (to reservoir) and C (to oil cooler) with leader lines.
  3. 16
    Slide the tie rod all the way to the right side.
  4. 17
    Remove the steering gearbox mounting bolts.

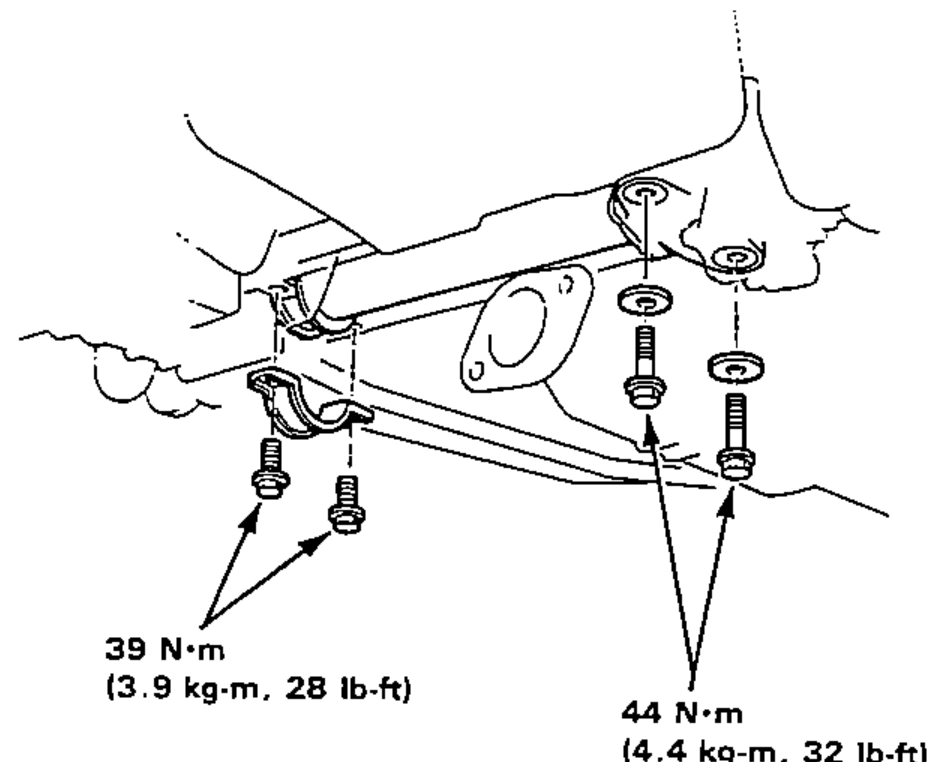

    Steering gearbox mounting bolts viewed from below the front beam, with leader lines pointing to the clamp/mounting bolts and tightening-torque callouts.
  5. 18
    Slide the gearbox right so that the left tie rod clears the bottom of the rear beam, then remove the gearbox.

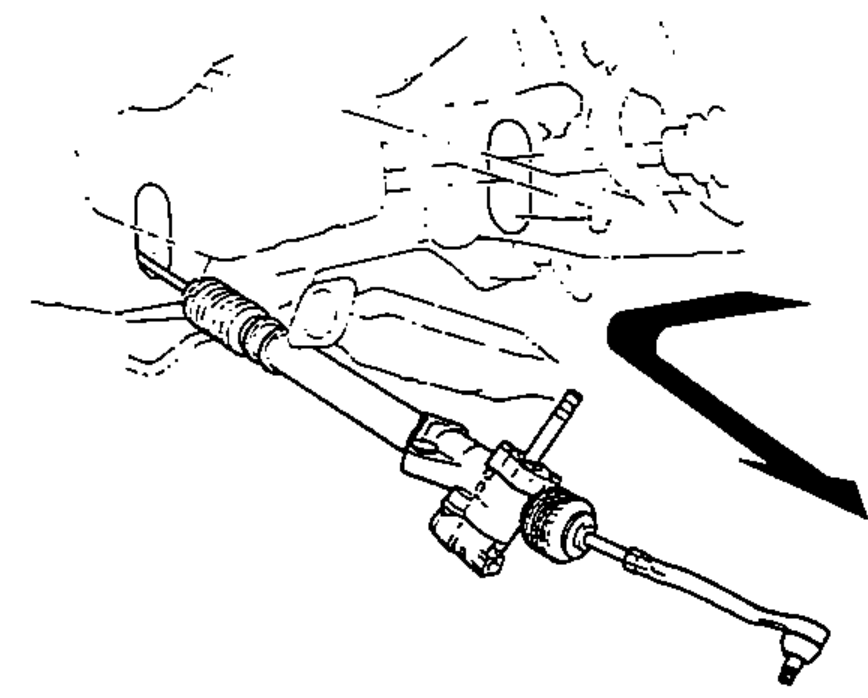

    Steering gearbox and tie rod being slid to the right with a large arrow indicating direction so the left tie rod clears the bottom of the rear beam for removal.
