Steering Gearbox - Overhaul (cont'd)
11-58prose procedureOverhaul (cont'd)
- 12Remove the O-ring, back-up ring, steering rack bushing A and cylinder spring.

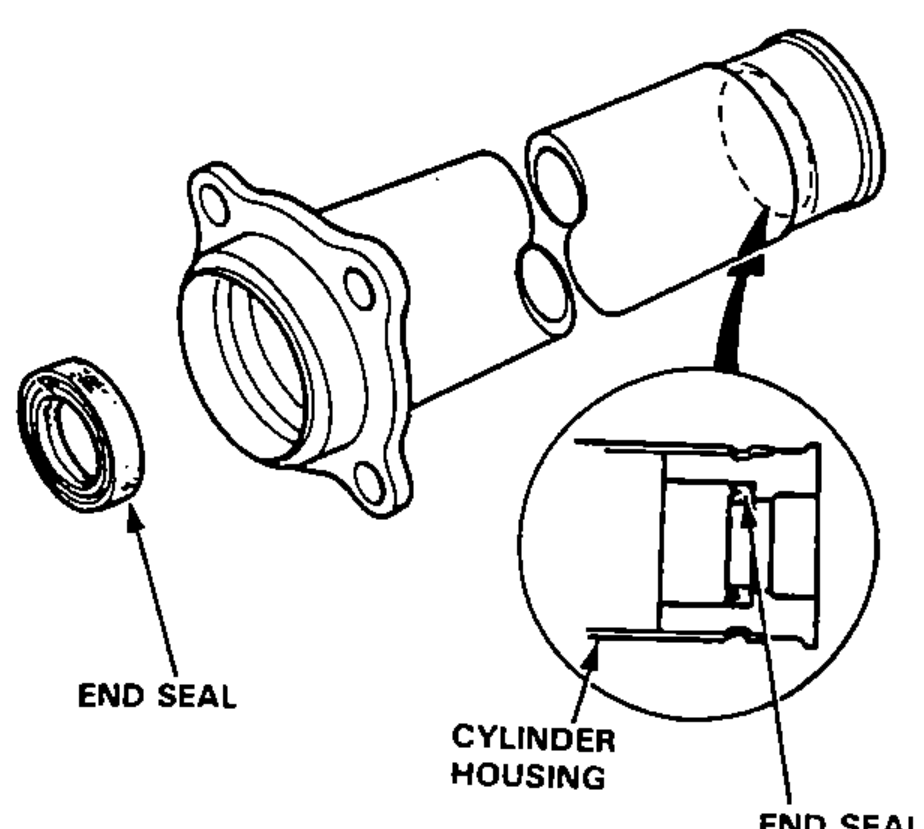

- 13Remove the cylinder end seal from the cylinder housing.
- 14Use your fingers or a wooden stick to avoid damaging the housing.

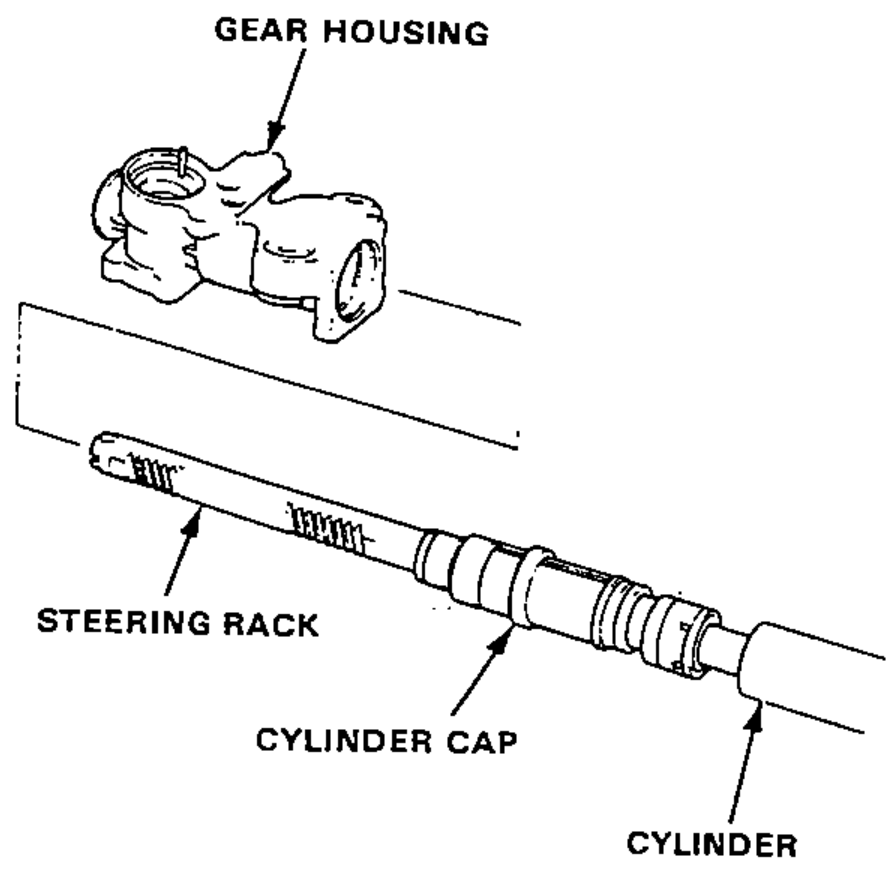

- 15Remove the cylinder, cylinder seal retainer, cylinder cap and steering rack from the gear housing.

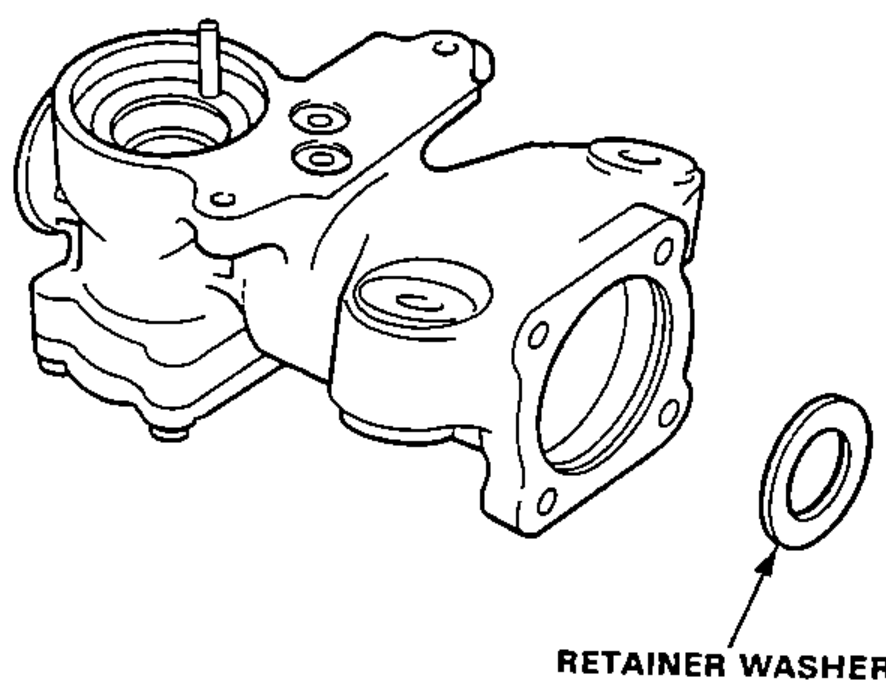

- 16Remove the retainer washer from the gear housing.

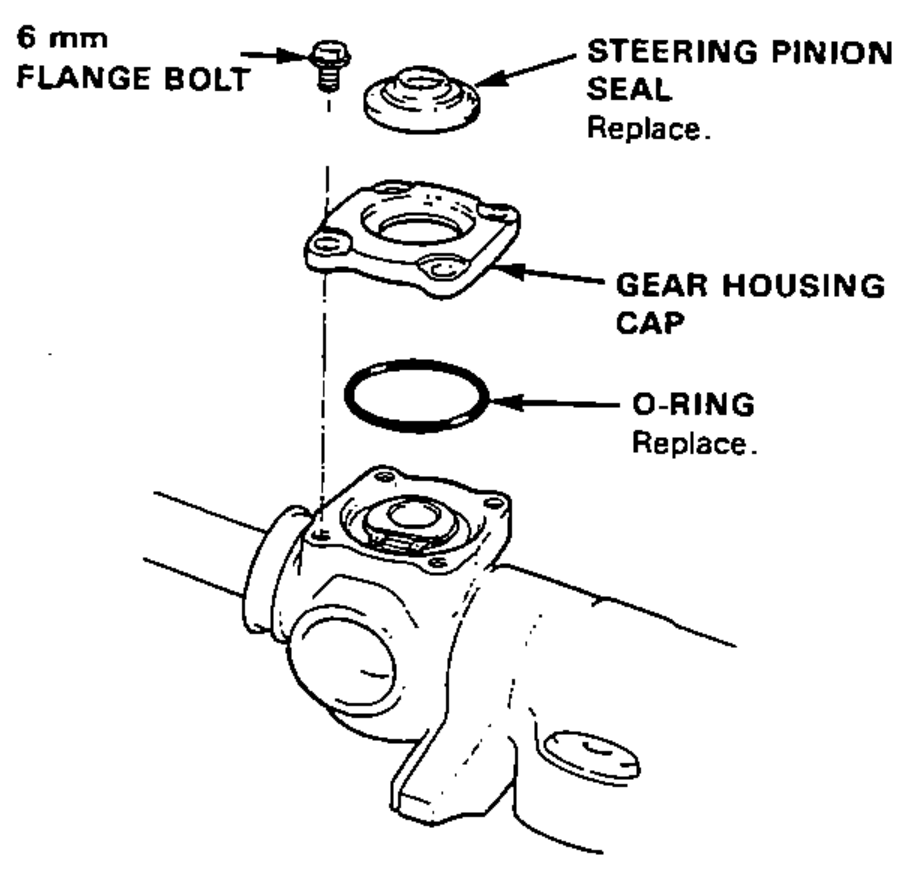

- 17Remove the gear housing cap from the gear housing by removing the four 6 mm flange bolts.
- 18Remove the steering pinion seal from the gear housing cap.
- 19Remove the O-ring from the gear housing.
