Steering Pump — Pulley Replacement / Control Valve Inspection and Replacement
11-40prose procedurePulley Replacement
Remove the pulley bolt using the special tool, then remove the pulley.
NOTE
Pulley bolt has left hand threads.
Control Valve Inspection and Replacement

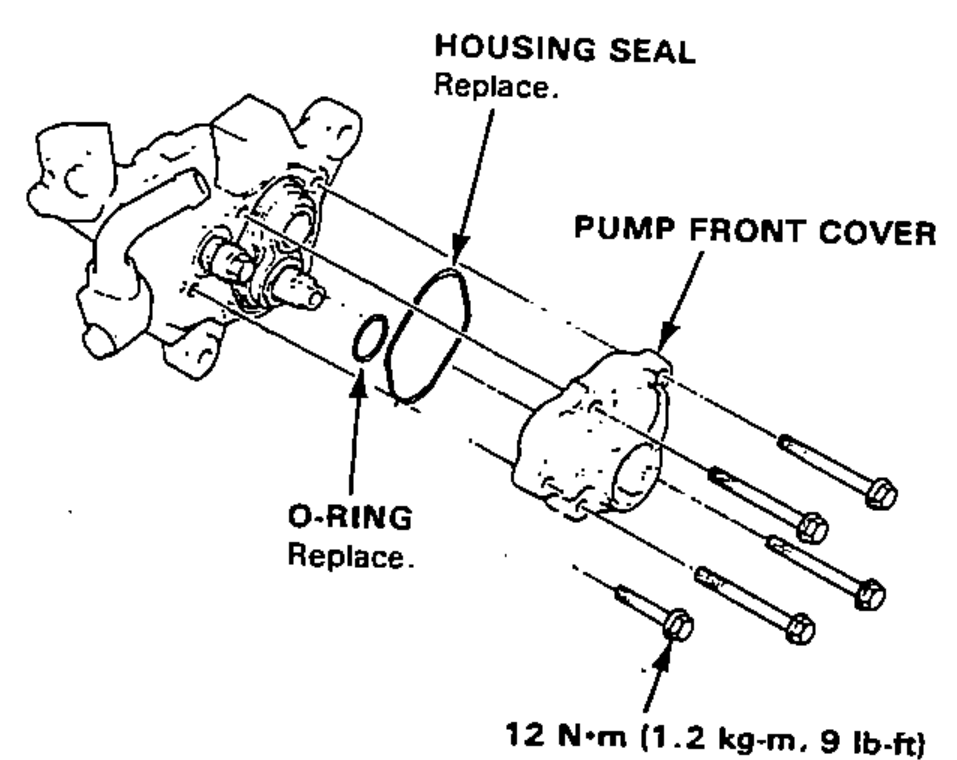

- 1Remove the five 6 mm bolts in the order shown, then separate the pump front cover, pump housing and port housing.

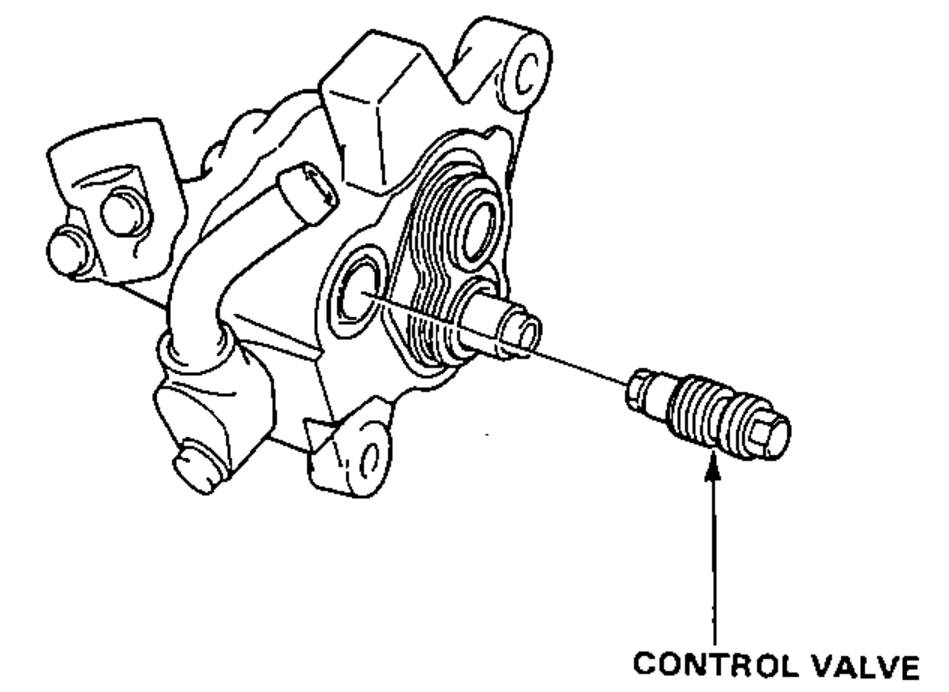

- 2Remove the control valve from the pump housing.
