Valve Body Unit Overhaul — Assembly

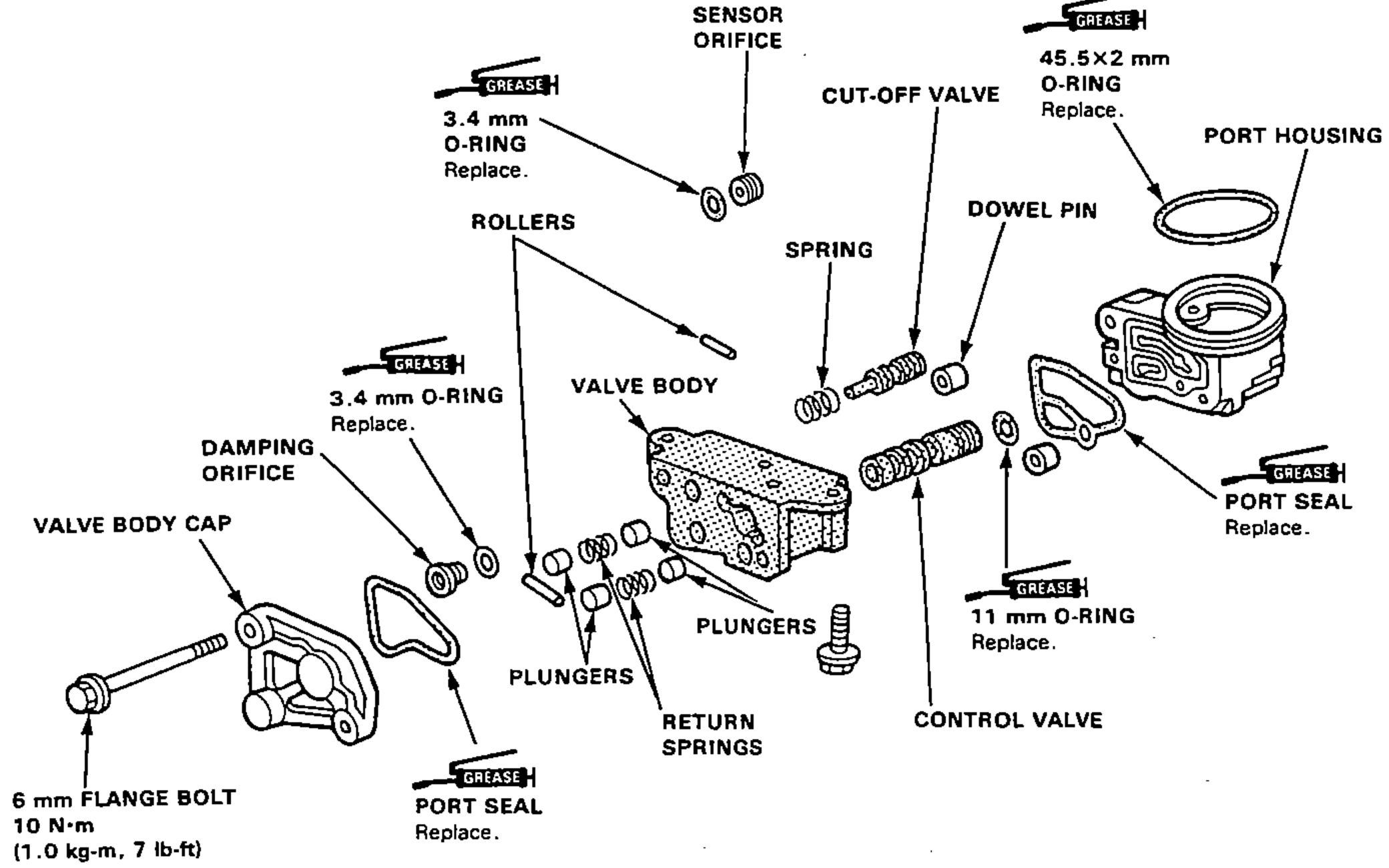

11-51parts diagramAssembly:
- 1Thoroughly clean the disassembled parts shown below.
- 2Coat the plungers, cut-off valve and reaction control valve surfaces with power steering fluid.
- 3Reassemble the parts in the reverse order of disassembly.
CAUTION
- Replace the O-rings and seals with new ones.
- Do not dip the O-rings and seals in solvent.
- Apply grease in the port seal grooves to keep the seals in place.
- Apply grease to the 45.5x2 mm and 11 mm O-rings to keep them in place in the valve ports.
GREASE: STEERING GREASE ...... Part Number 08740-99969
| Specification | Value |
|---|---|
| 6 mm flange bolt | 10N·m |
6 mm flange bolt
10N·m
NOTE
If the Valve Body is damaged, it must be replaced as a set, with the Cut-off Valve and Control Valve (shaded parts).
(cont'd)
