Gearbox - Reassembly

11-8prose procedure

Reassembly

  1. 1
    Apply a thin coat of grease to the inside surface of the rack end bushing.
    CAUTION: Do not fill the slots with grease; they must remain open to serve as air passages.
  2. 2
    Install the rack end busing by aligning the round projections on the busing with the holes in the cylinder housing.

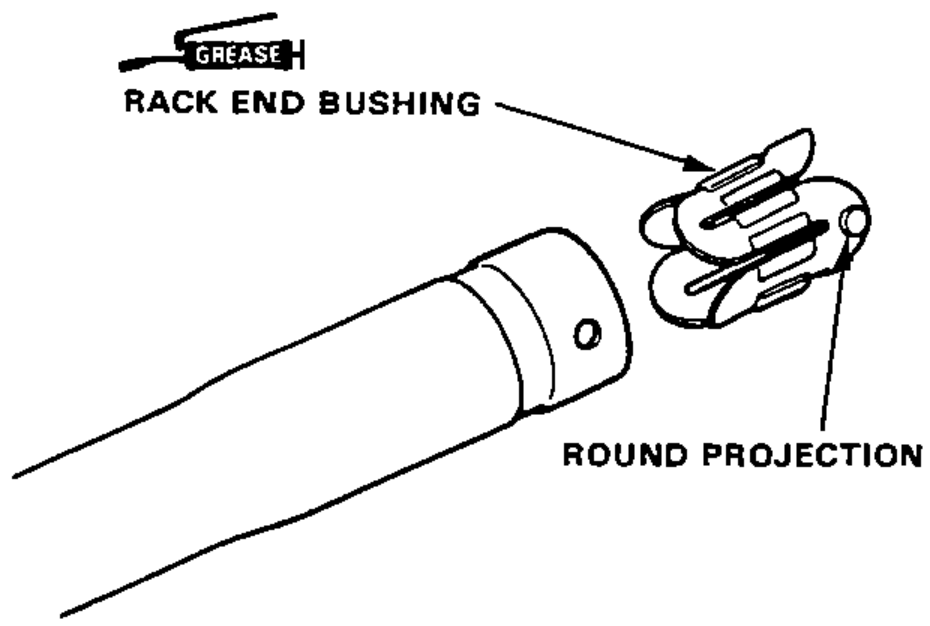

    Installation of the rack end bushing onto the cylinder housing, aligning the round projections on the bushing with the holes; grease applied to the bushing.
  3. 3
    Apply grease to the steering rack.
  4. 4
    Install the steering rack into the cylinder housing carefully to avoid damaging the steering rack sliding surface.

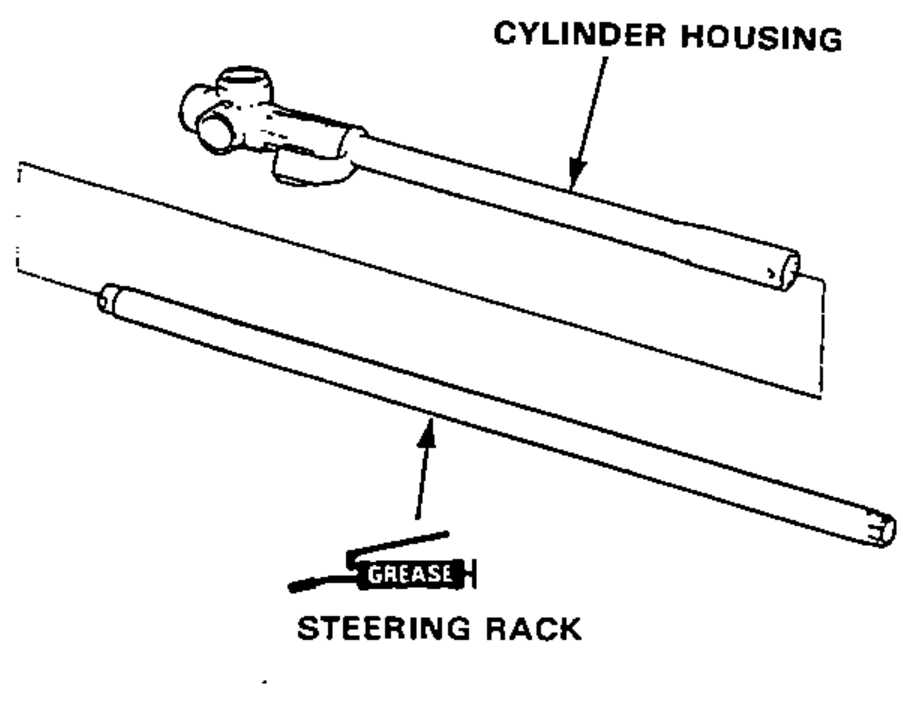

    Steering rack being installed into the cylinder housing; grease applied to the steering rack.
  5. 5
    Install the steering pinion in the gear housing.

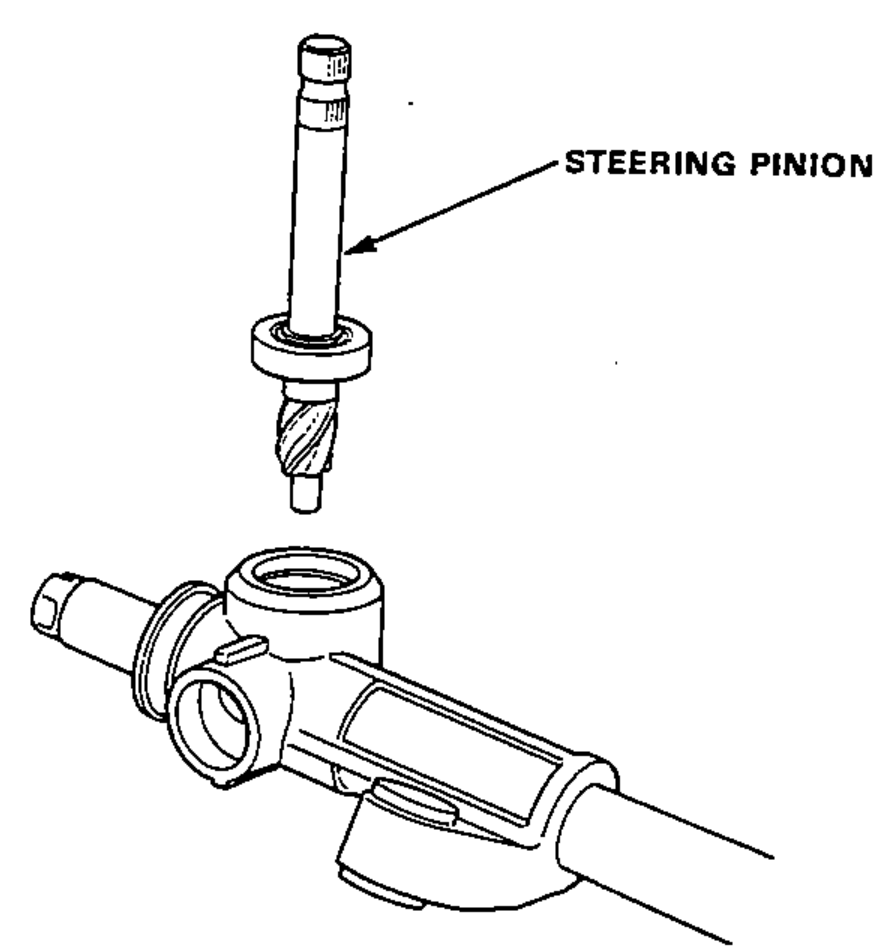

    Steering pinion being installed into the gear housing.
  6. 6
    Install the 35 mm snap ring securely in the gear housing groove.
  7. 7
    Grease the steering pinion seal, and install it on the gear housing.

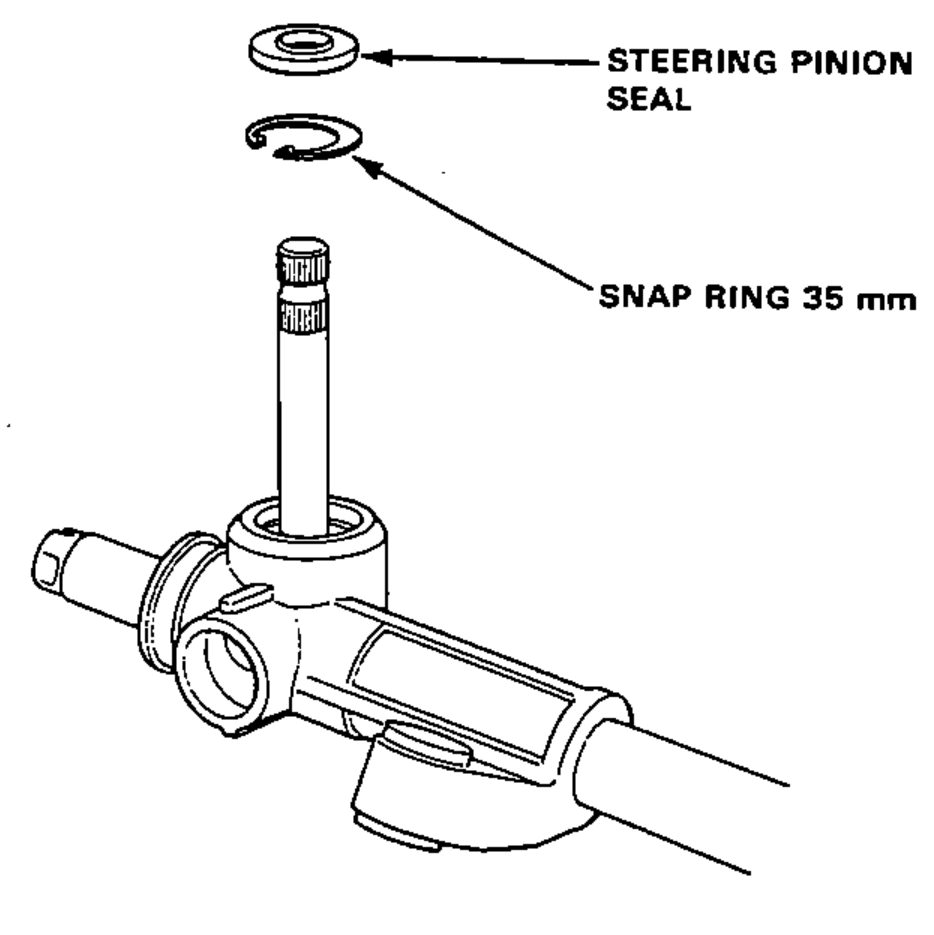

    Installation of the steering pinion seal and 35 mm snap ring onto the gear housing over the pinion shaft.
Grease quantity (rack end bushing)
1—3gg
