Honda CRX silhouetteCRX

Column - Removal

11-29prose procedure

Removal

  1. 1
    Remove the center pad.
  2. 2
    Remove the steering shaft nut.

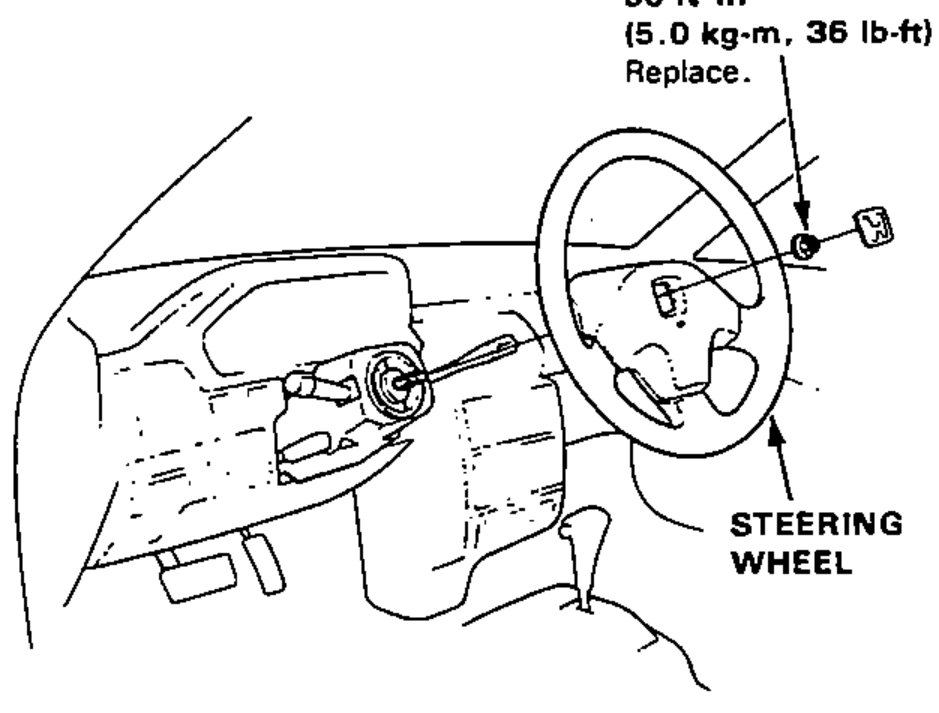

    Steering wheel and dashboard showing the steering shaft nut being removed and the steering wheel pulled off the shaft.
  3. 3
    Remove the steering wheel by rocking it slightly from side-to-side as you pull steadily with both hands.
  4. 4
    Remove the cover panel under the steering column.

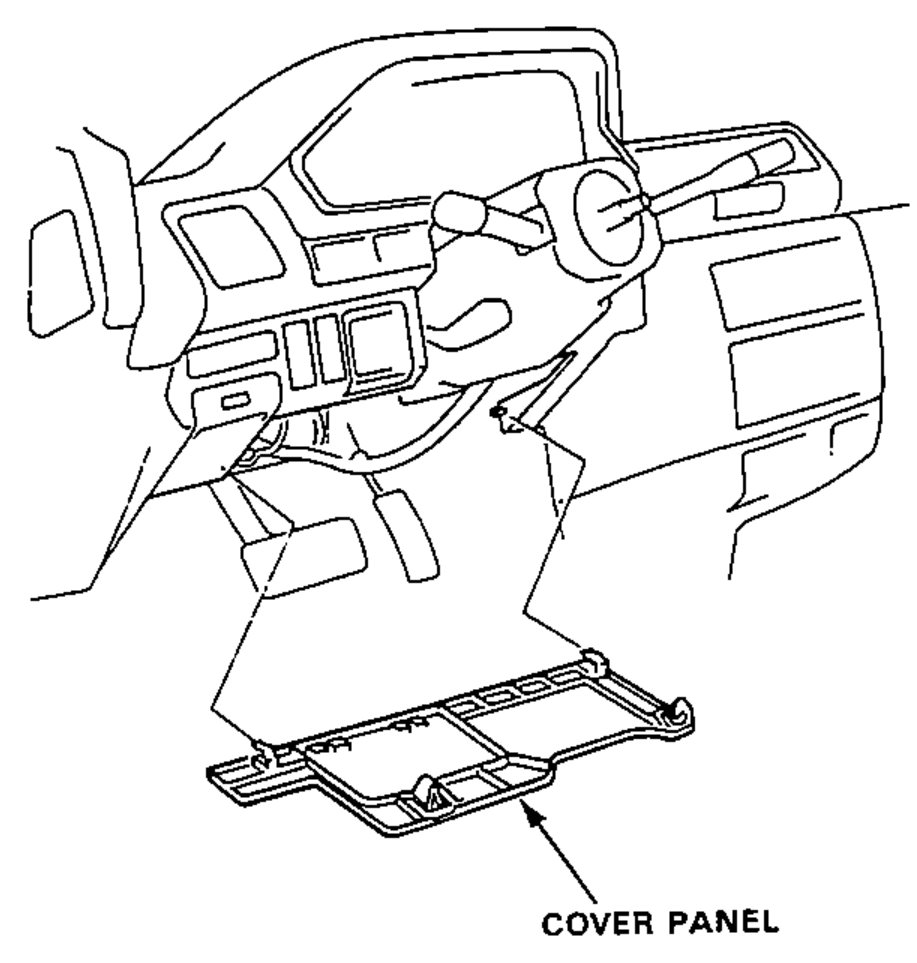

    Lower dashboard / steering column showing the cover panel removed from beneath the steering column.
  5. 5
    Remove the steering joint cover.

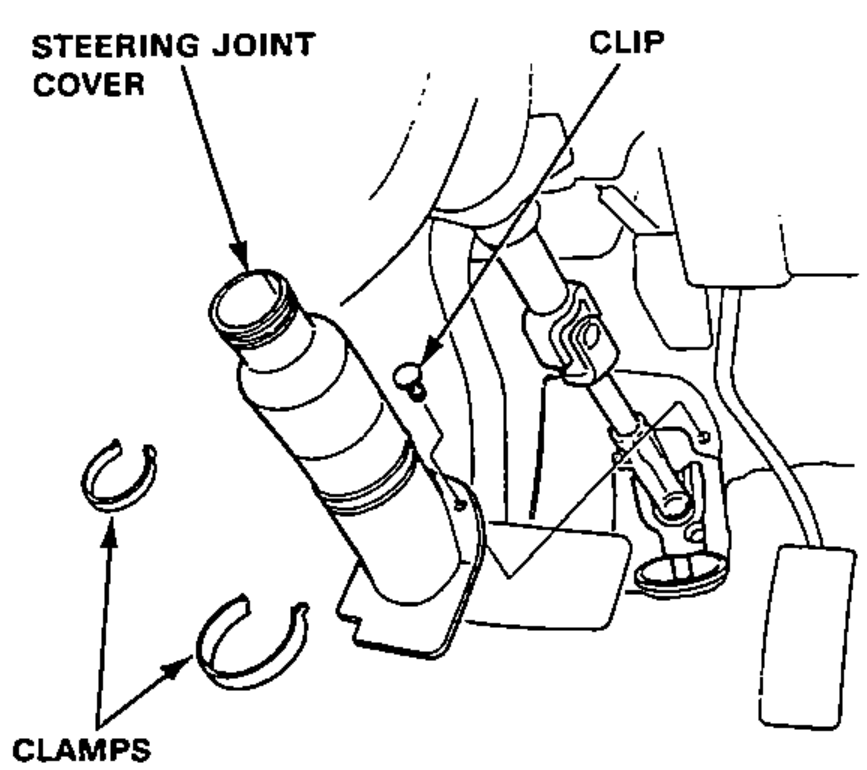

    Steering joint area showing the steering joint cover, its clip, and the clamps to be removed.
  6. 6
    Remove the steering joint bolt, and move the joint toward the column.

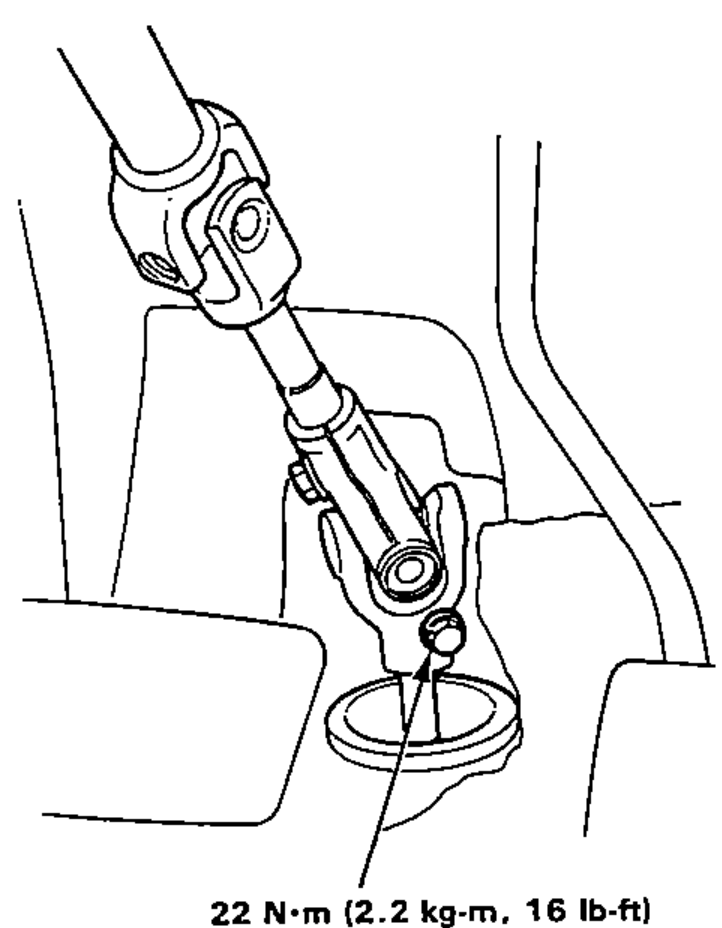

    Steering joint (universal joint) at the lower steering shaft showing the joint bolt to be removed.
(cont'd)
