Steering Gearbox - Installation (cont'd)
11-70prose procedureInstallation (cont'd)

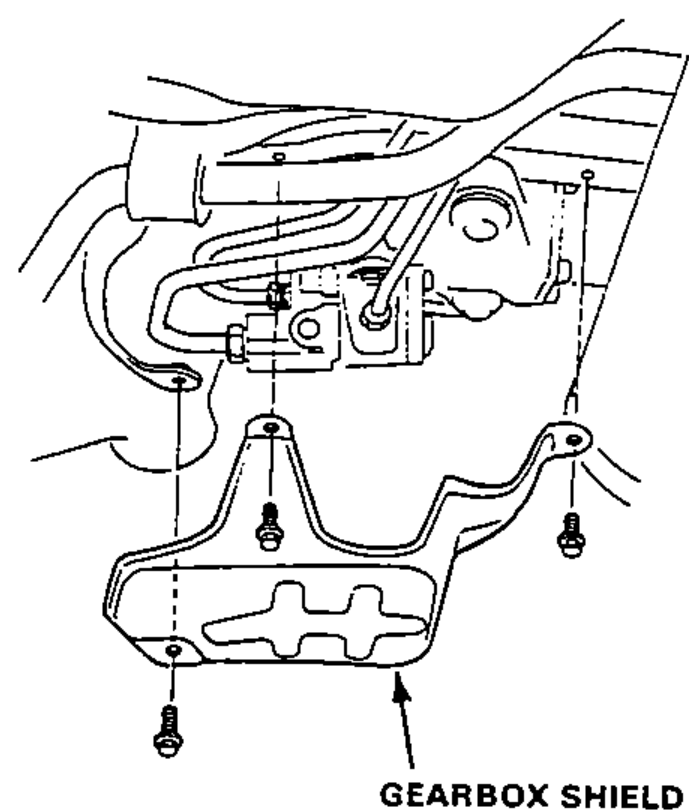

- 4Install the gearbox shield.

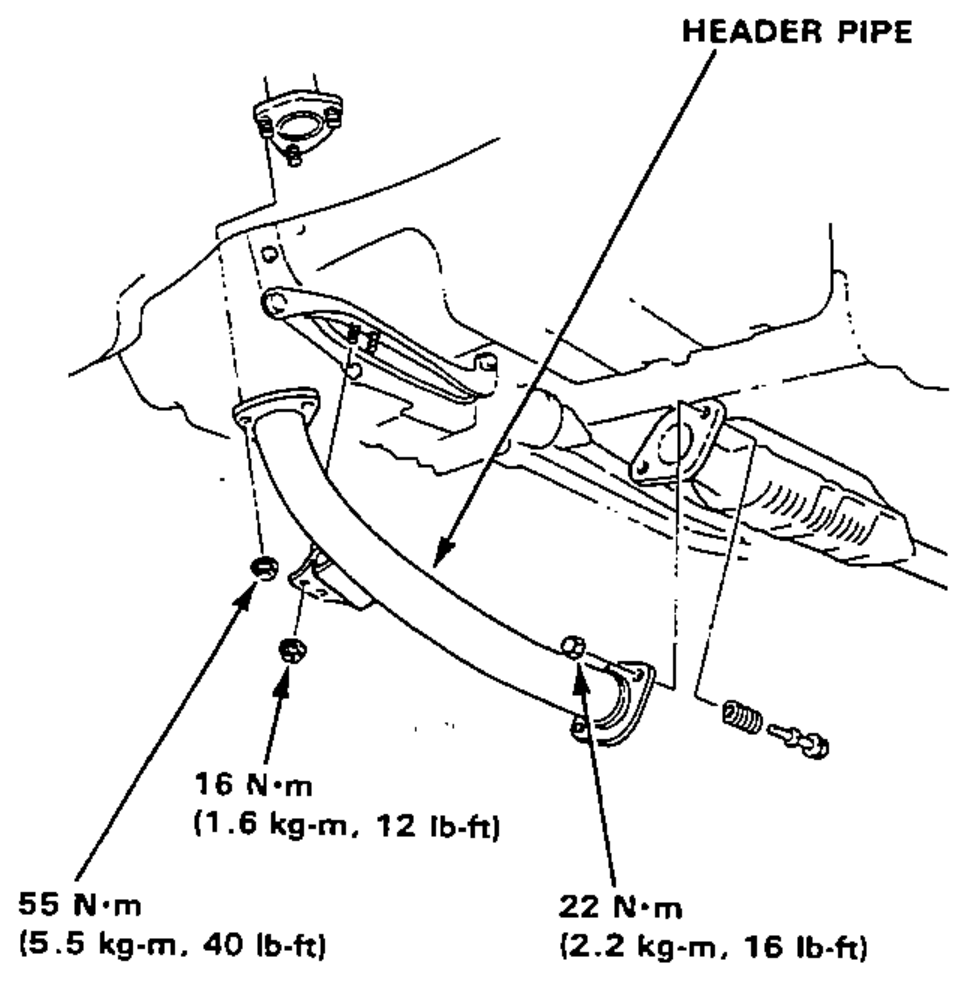

- 5Install the header pipe with new gasket, and tighten the bolts and nuts.16 N·m (1.6 kg-m, 12 lb-ft)55 N·m (5.5 kg-m, 40 lb-ft)22 N·m (2.2 kg-m, 16 lb-ft)

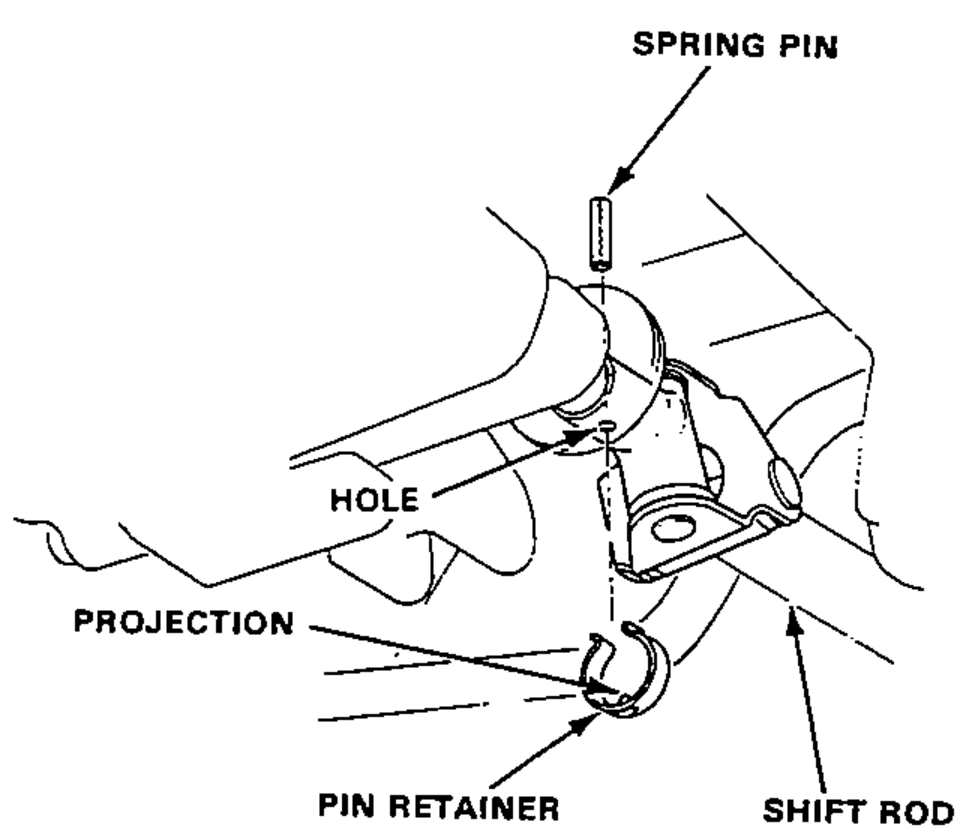

- 6Connect the shift rod to the transmission and drive the spring pin with a punch, then install the pin retainer. Be sure that the projection on the pin retainer is in the hole.

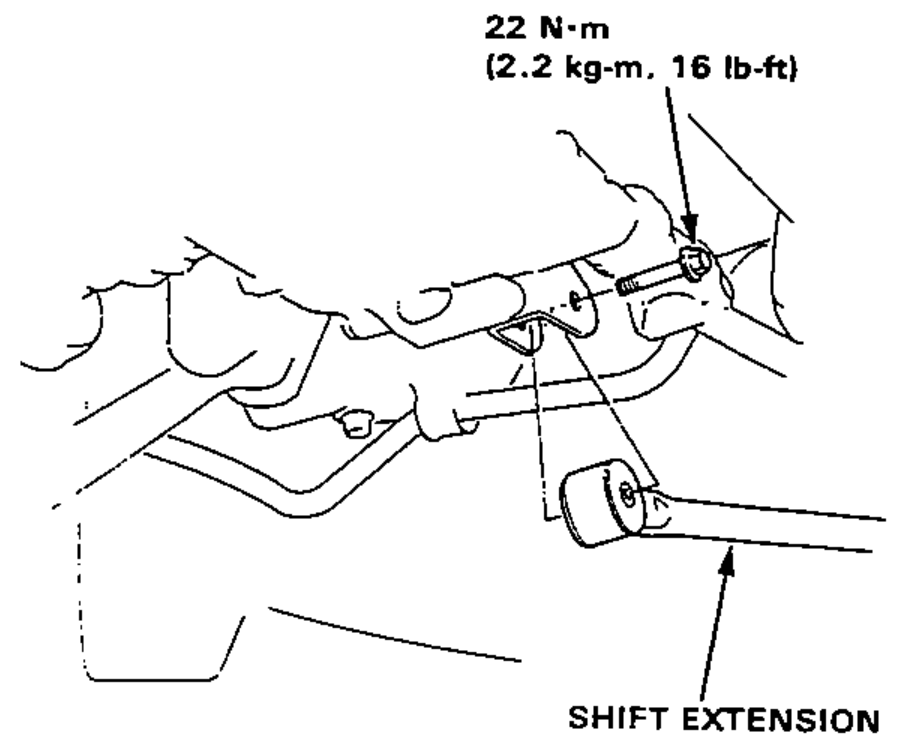

- 7Install the shift extension to the transmission case.22 N·m (2.2 kg-m, 16 lb-ft)
