Rear Window - Installation

14-25prose procedure

Installation

  1. 1
    Scrape the old adhesive smooth with a knife, to a thickness of about 2 mm (0.08 in.) on the bonding surface around the entire glass flange.
    Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
    Remove all traces of the rubber spacer material from the body.
    Mask off surrounding surfaces before applying primer.
  2. 2
    Clean the body bonding surface with a sponge dampened in alcohol.
    After cleaning, keep oil, grease or water from getting on the surface.
  3. 3
    If the glass is to be reinstalled, use a putty knife to scrape off all traces of old adhesive, then clean the glass surface with alcohol where new adhesive is to be applied.
    Make sure the bonding surface is kept free of water, oil and grease.

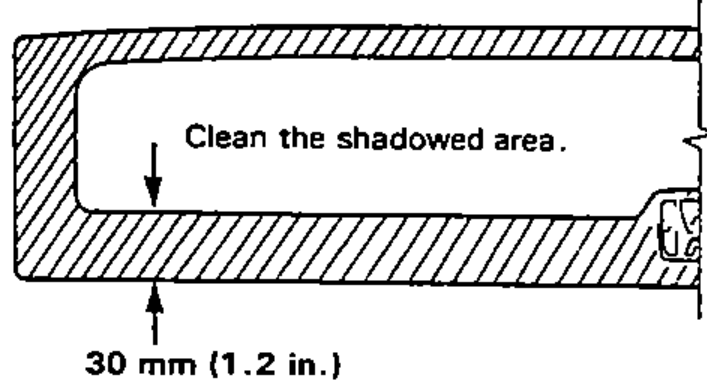

    Cross-section of the glass flange bonding area with hatching, indicating the 30 mm (1.2 in.) shadowed area to be cleaned.
  4. 4
    Glue the clips to the inside face of the glass as shown.

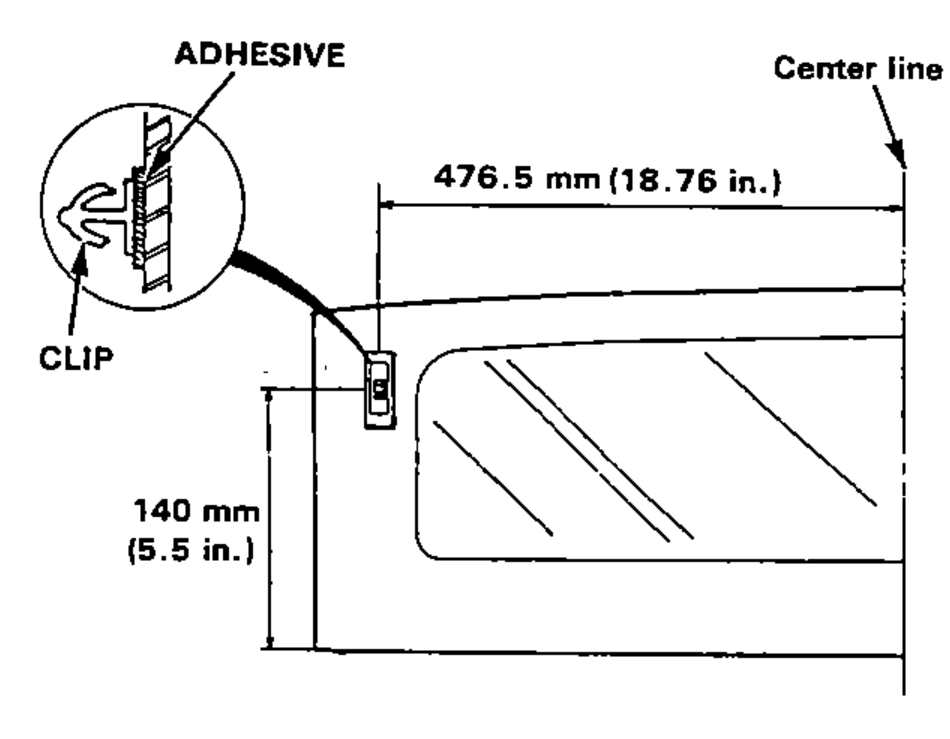

    Rear glass corner showing a clip glued to the inside face; enlarged circle shows the clip and adhesive; dimensions locate the clip from the center line.
  5. 5
    Adhere the upper and side moldings to the edge of the glass as shown.

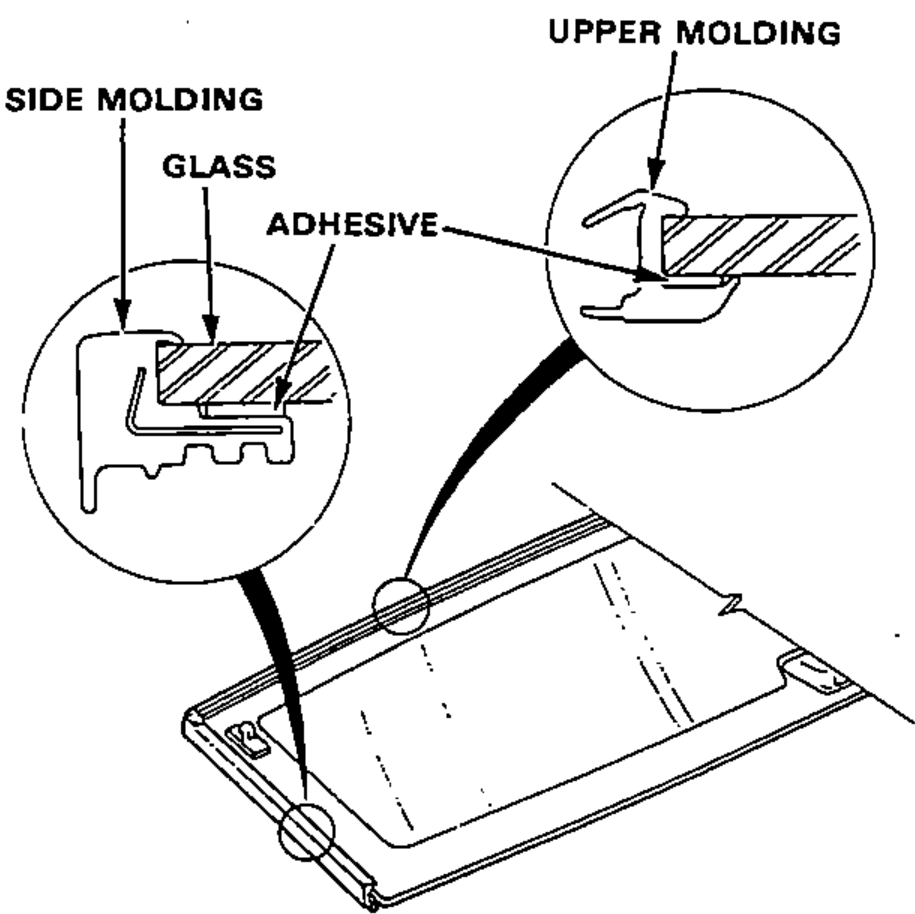

    Cross-sections showing the upper and side moldings adhered to the edge of the glass, plus a view of the glass with molding positions.
  6. 6
    Install the lower molding on the glass as shown.

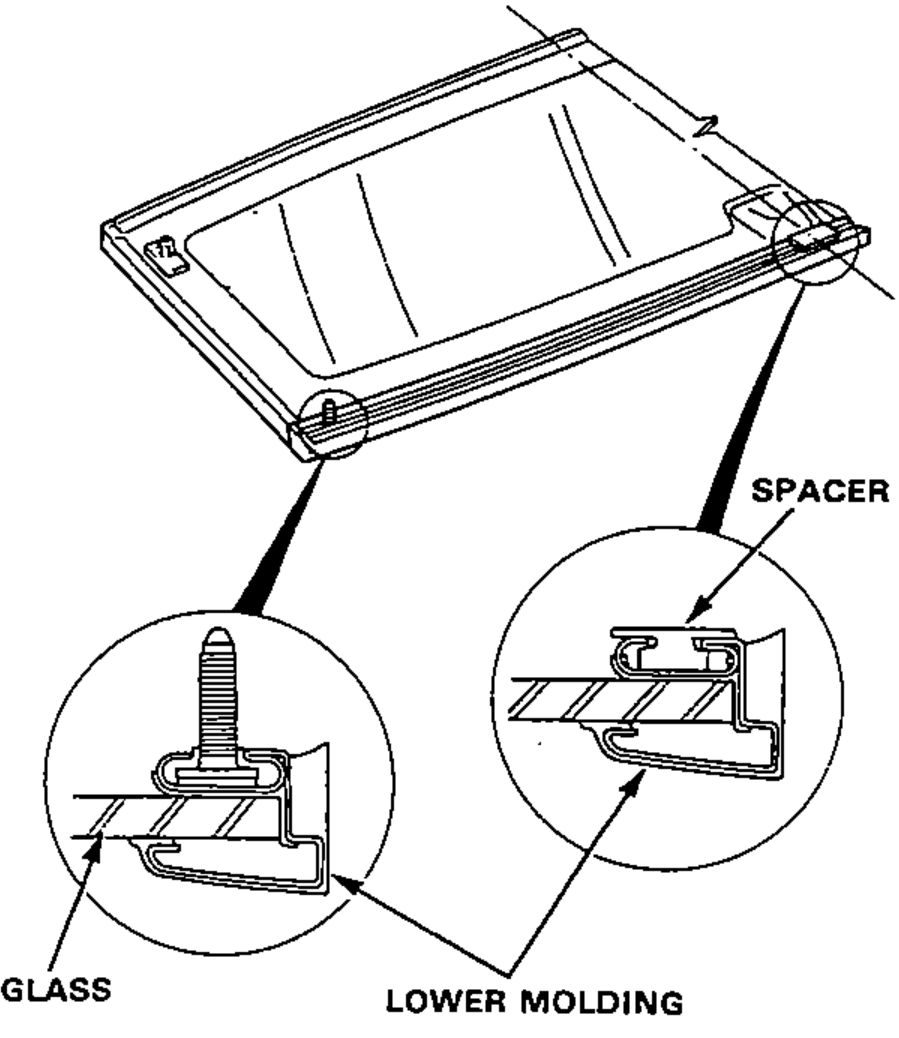

    Rear glass with the lower molding being installed; enlarged circles show the glass/lower-molding clip cross-section and the spacer cross-section.
(cont'd)
