Doors - Disassembly (cont'd)

14-4prose procedure
Continued from 14-3

Disassembly (cont'd)

  1. 7
    Raise the window fully.
  2. 8
    Remove the 3 screws, disconnect the latch rods, then remove the inside door handle.

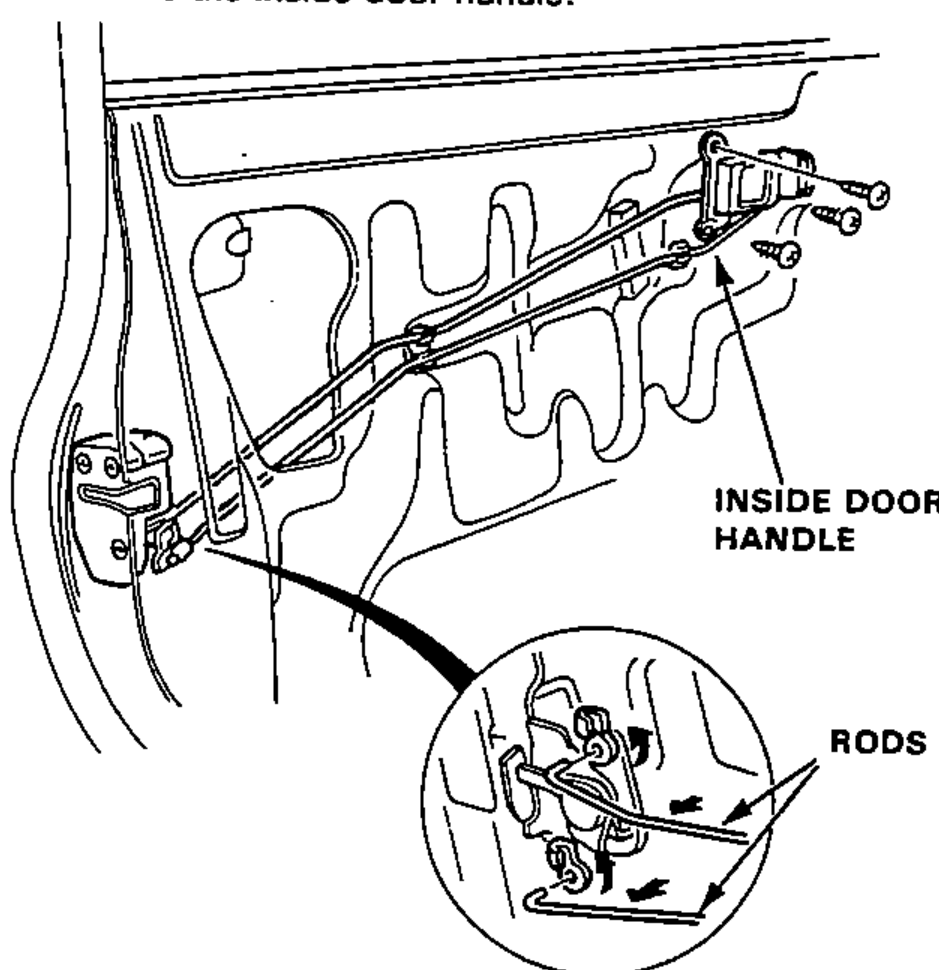

    Inside door handle with the 3 screws removed and the latch rods disconnected; a magnified inset shows the rods detaching from the handle.
  3. 9
    Pull out the retainer clip, take out the lock cylinder, then disconnect the lock rod.
    Use protective tape around the edge of the door handle to prevent scratching the paint.
  4. 10
    Remove the mounting bolts for the outside door handle.

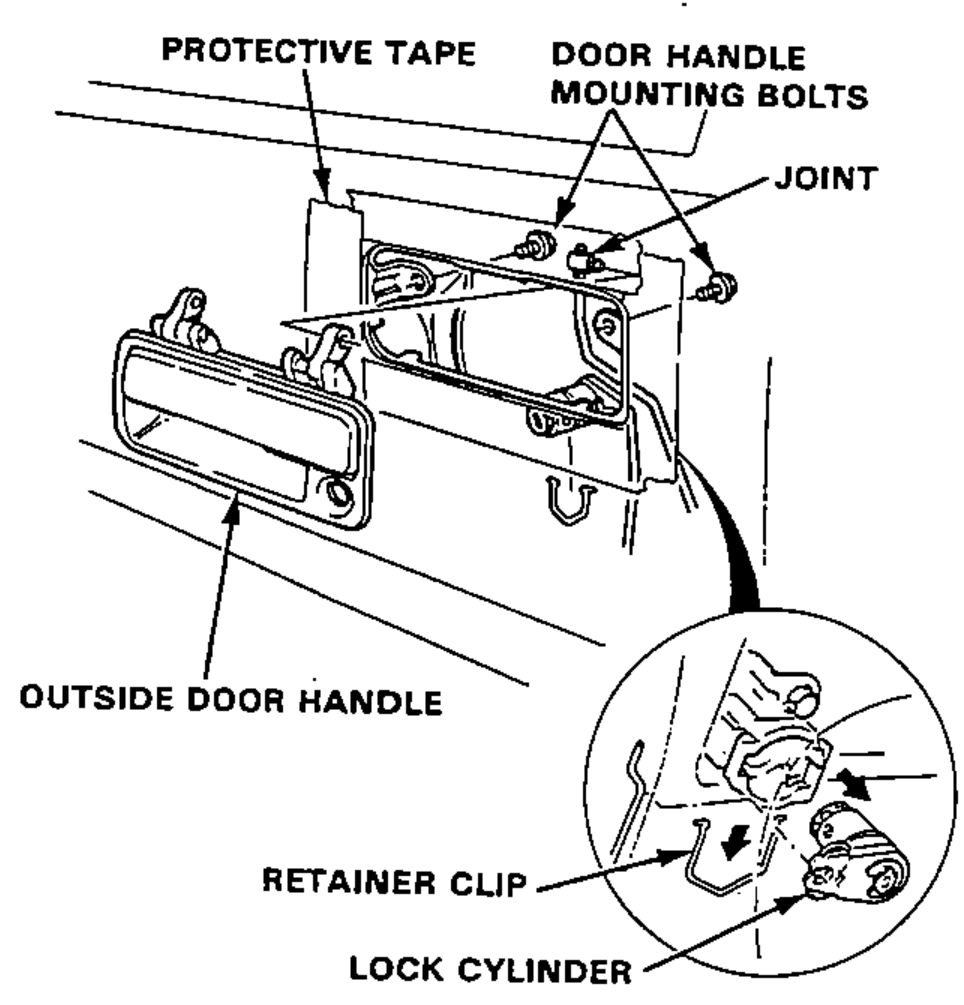

    Outside door handle removal, showing protective tape around the door handle edge, the door handle mounting bolts and joint, and a magnified inset of the retainer clip and lock cylinder.
  5. 11
    Pull the outside door handle out, and pry the joint off the handle with a flat-tip screwdriver. Remove the handle from the rod.
  6. 12
    Remove the screws, take the door latch off the door, then push the door latch and rod inside the door.

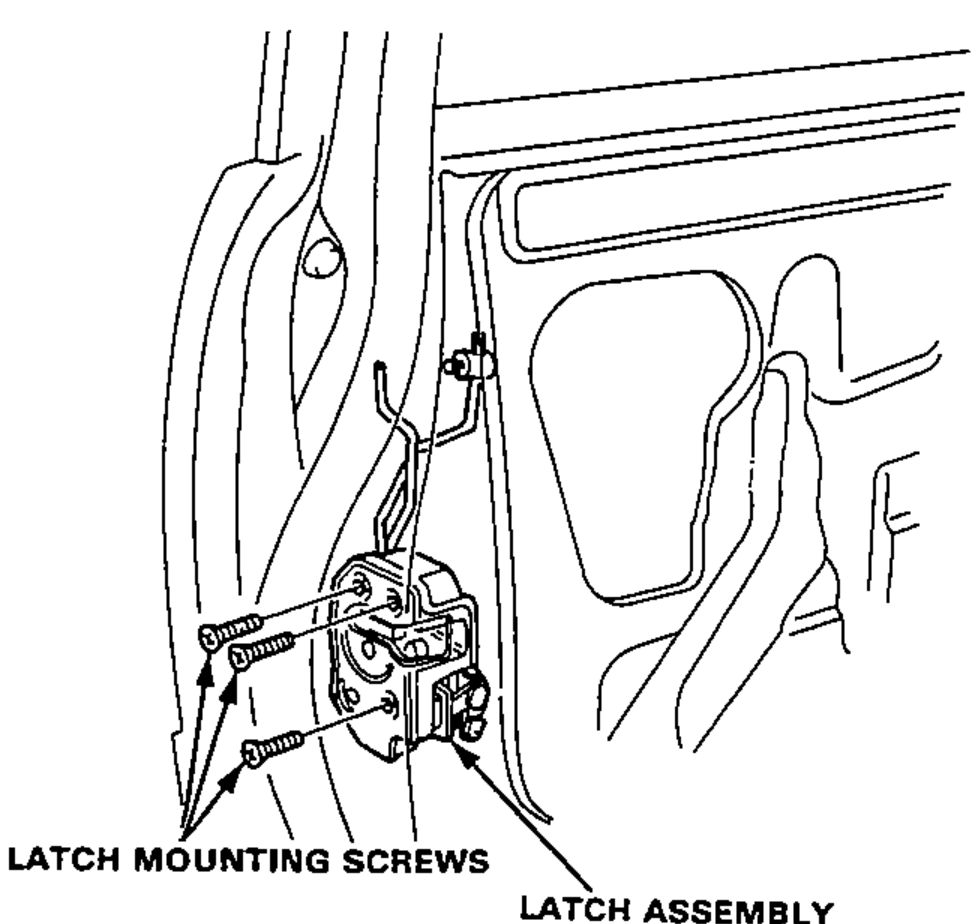

    Door latch assembly viewed from the door edge, showing the latch mounting screws being removed so the latch and rod can be pushed inside the door.
  7. 13
    Lower the window fully.
  8. 14
    Remove the door mirror (page 14-8, 9).
  9. 15
    Remove the screw and detach the clips, then remove the outer molding.

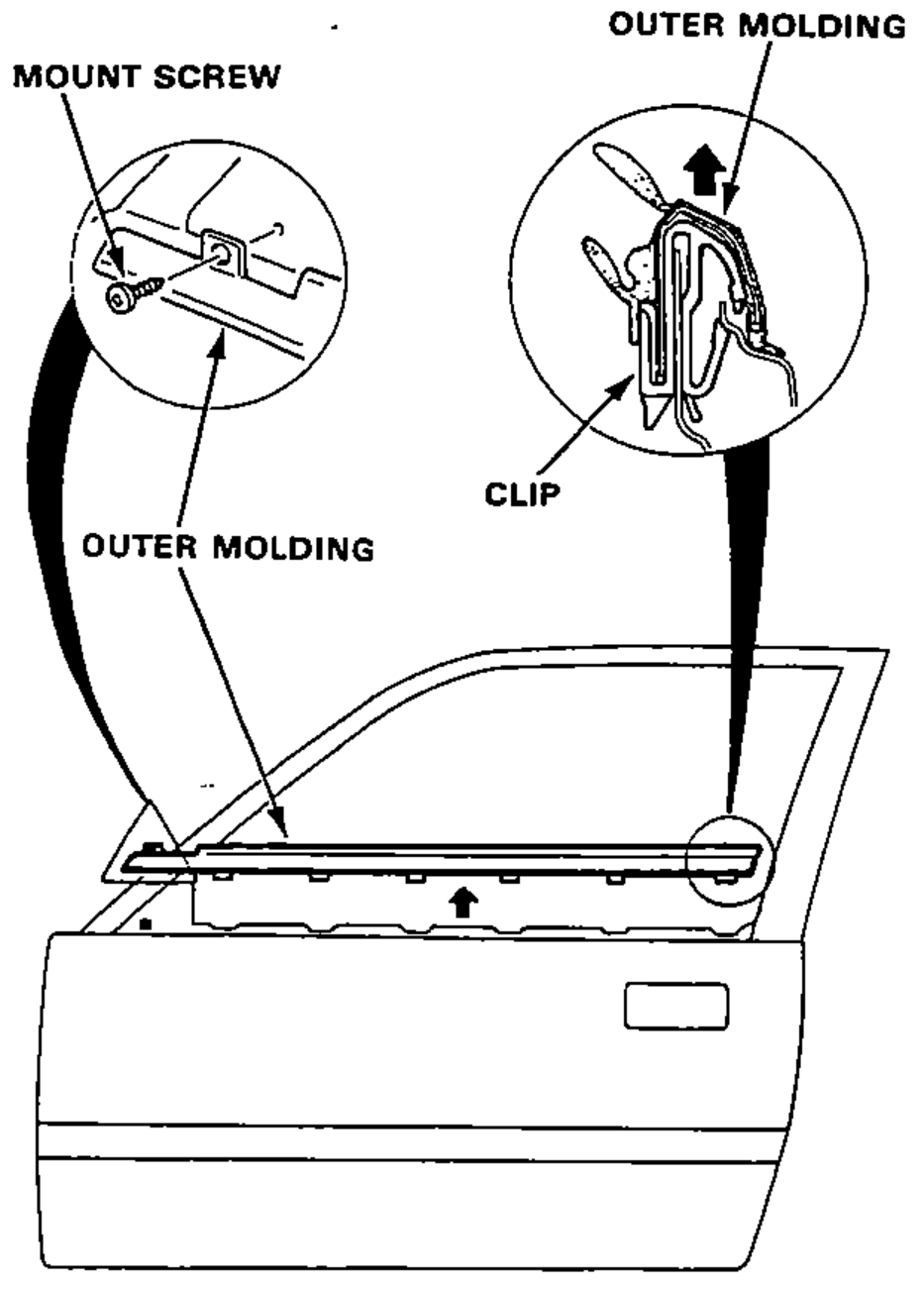

    Outer molding removal from the door, with magnified insets of the mount screw and of the clip that retains the outer molding.
