Honda CRX silhouetteCRX

Seats - Trim Cover Replacement

14-47prose procedure
Continued from 14-46

Trim Cover Replacement

Seat Back:

  1. 1
    Separate the seat cushion and back. (page 14-46).
  2. 2
    Remove the headrest and headrest guide (page 14-46).
  3. 3
    Remove the lower clips.

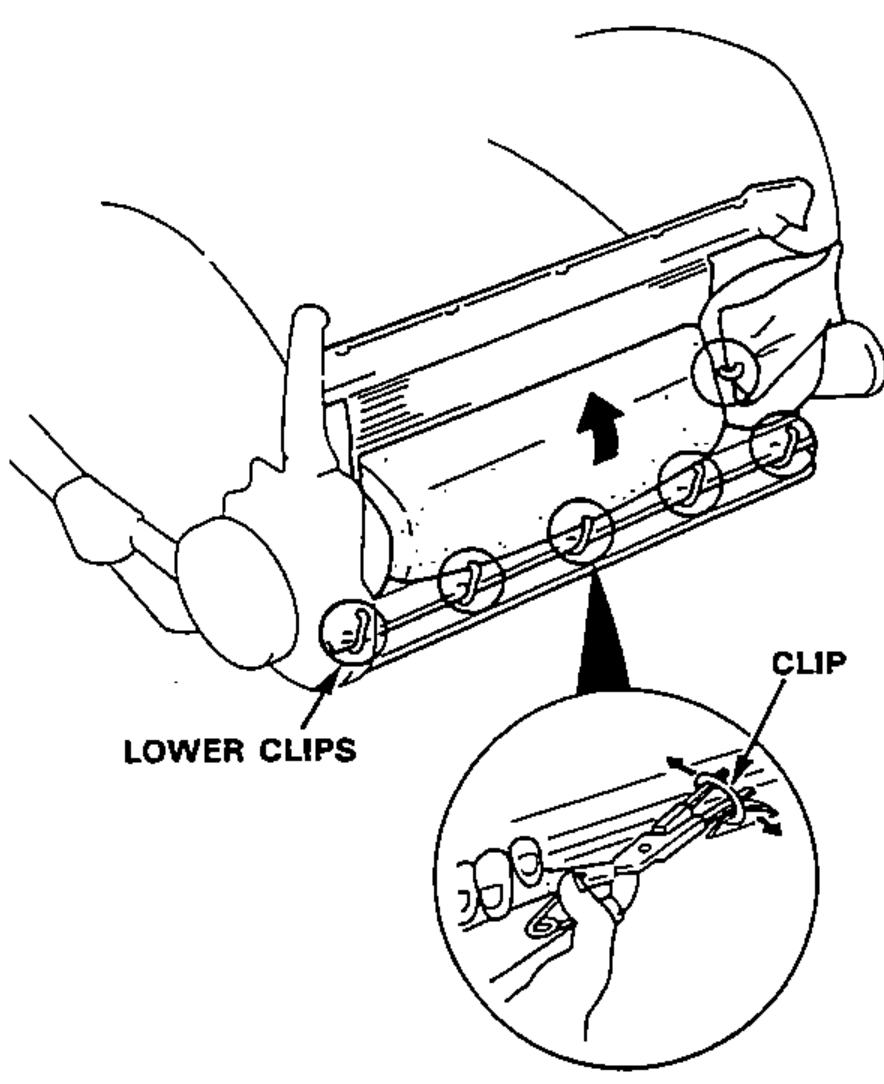

    Seat back frame with the trim cover being lifted; shows the lower clips along the bottom edge with a magnified inset detailing a single clip being released with pliers.
  4. 4
    Remove the inside clips, then remove the trim cover.

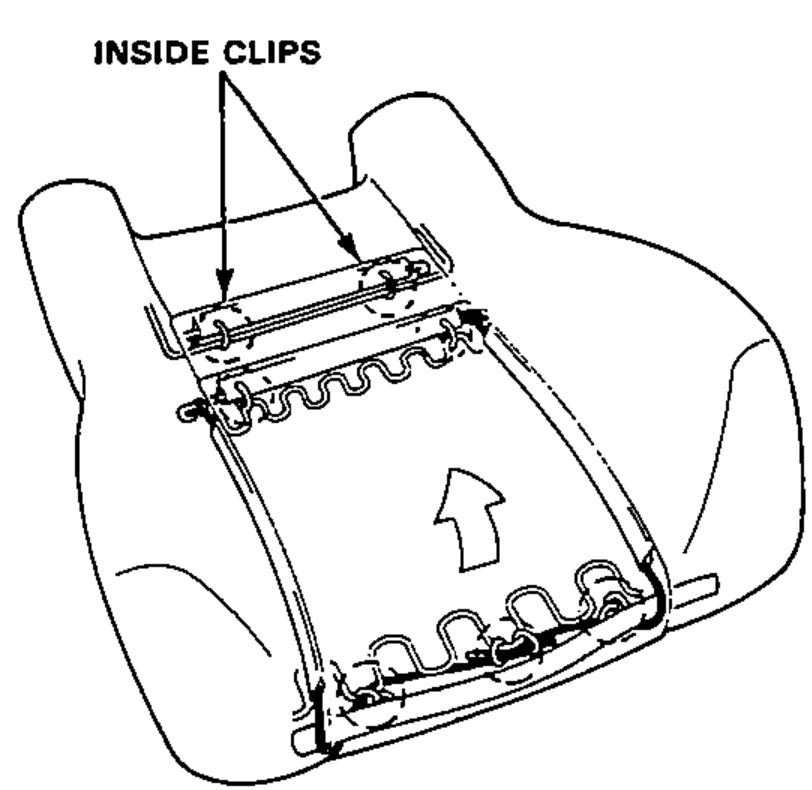

    Rear view of the seat back trim cover showing the inside clips at the top edge that must be removed to free the cover.

seat cushion:

  1. 5
    Remove the 14 clips and turn over the trim cover.

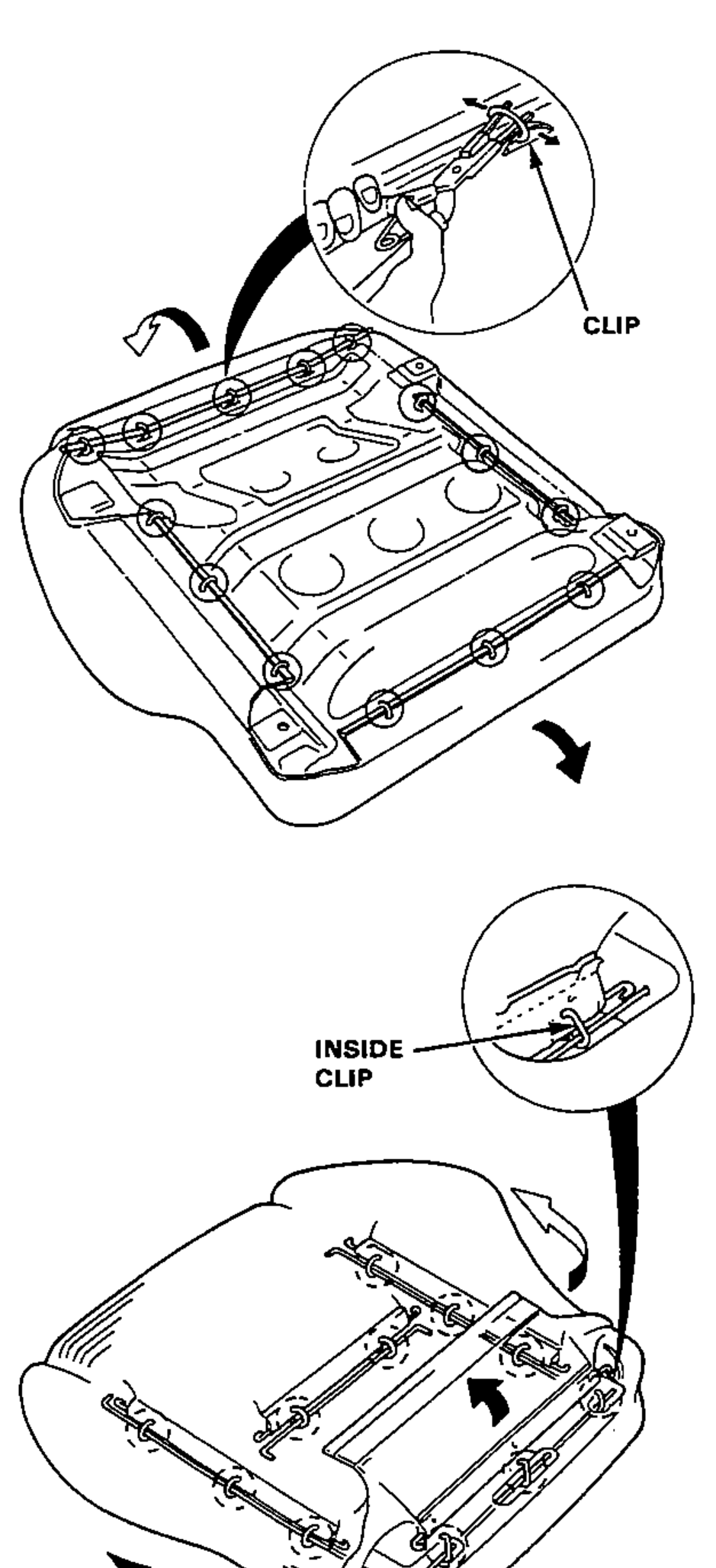

    Seat cushion frame and trim cover: top view showing the 14 clips around the frame turned over, an inset detail of a clip on the frame, and a lower view showing the inside clip being released to remove the cushion trim cover.
  2. 6
    Remove the inside clips, then remove the trim cover.
