Honda CRX silhouetteCRX

Rear Spoiler/Rear Panel and Corner Panel

14-64prose procedure

Rear spoiler / rear panel / corner panel apply to the CRX (hatchback) body.

Rear Spoiler Replacement

  1. 1
    Remove the tailgate trim panel (page 14-62) and rear wiper.
  2. 2
    Remove the 4 mount nuts and detach the 4 clips, then remove the rear spoiler.
    NOTE: Be careful not to drop the nuts inside the tailgate panel.

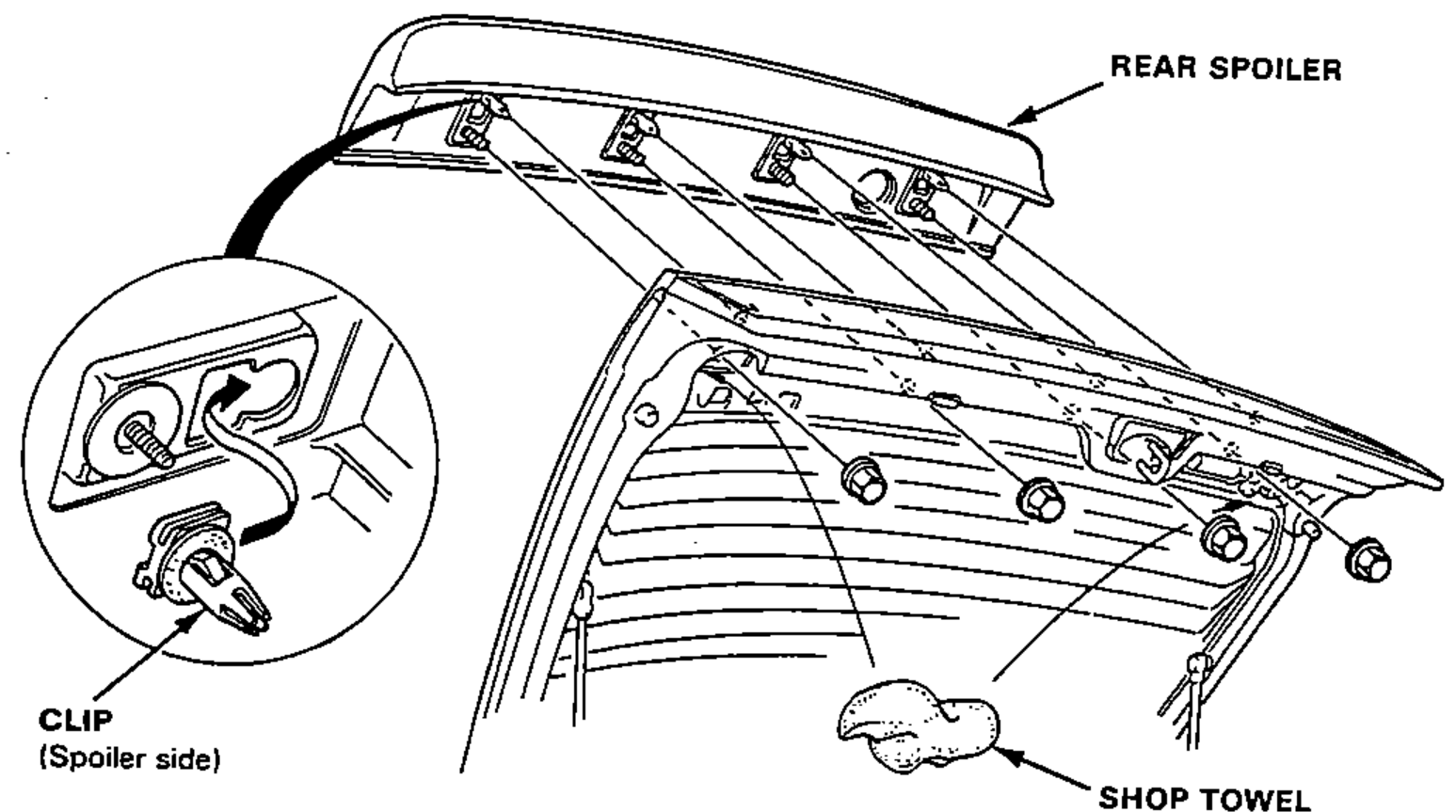

    Rear spoiler mounted on the tailgate, showing the four mount nuts and the clips (spoiler side) that secure it. A shop towel is placed on the surface. An inset details the clip on the spoiler side.
  3. 3
    Install the spoiler in the reverse order of removal.
    NOTE: Before attaching the spoiler, install the clips to the spoiler.

Rear Panel and Corner Panel Replacement

  1. 1
    Remove the rear trim panel, then remove the rear panel by removing the 7 mount nuts and disconnecting the connectors.

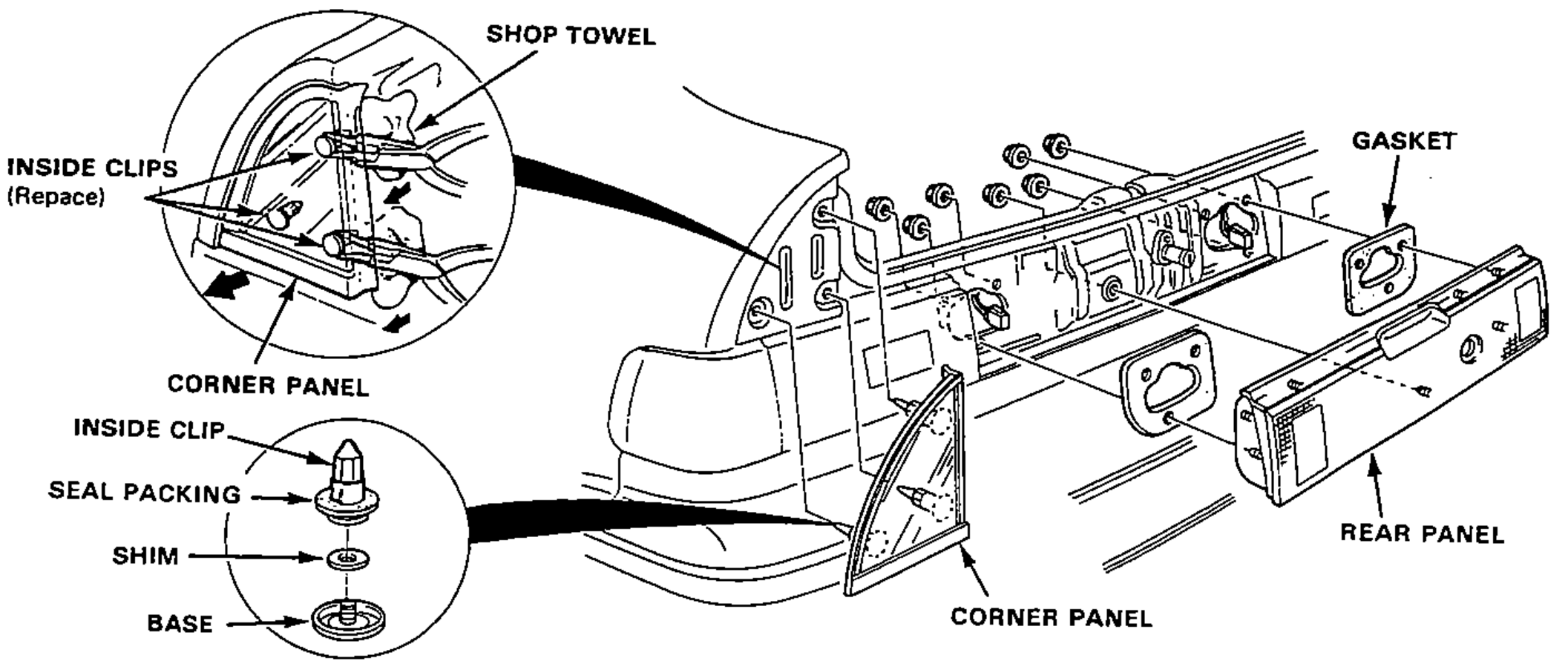

    Exploded view of the rear panel and corner panels at the rear of the vehicle, showing the rear panel with its gasket, the corner panel with inside clips, and an inset detailing the inside clip assembly (seal packing, shim, base). Inside clips are called out as replace items and a shop towel is shown in a working inset.
  2. 2
    Carefully pull out the 3 inside clips, then remove the corner panels.
  3. 3
    Install the panels in the reverse order of removal.
    NOTE: Before attaching the corner panels, install new clips and shims.
