Side Panels - Replacement

14-65prose procedure

Replacement

  1. 1
    Remove the plastic nut and 6 lower clips with a long flat-tip screwdriver.

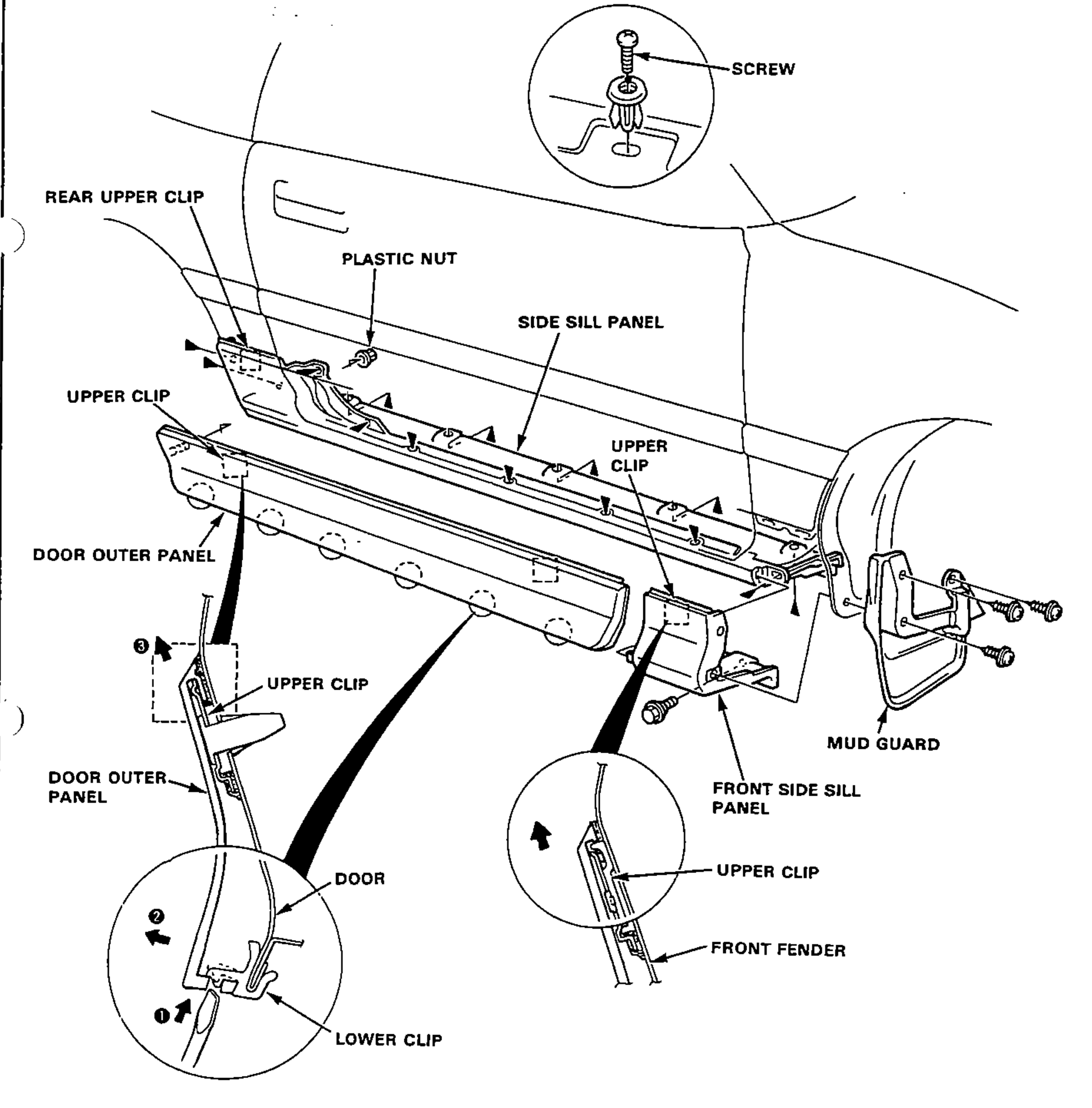

    Exploded view of the side (rocker) panels along the lower body, showing the door outer panel, side sill panel and front side sill panel with their upper clips, lower clips, plastic nut and screw locations, plus the mud guard and front fender. Insets detail a screw location, the door outer panel lower clip engagement, and the front side sill panel upper clip at the front fender.
  2. 2
    Lift the door outer panel straight up off the 2 upper clips, then remove the door outer panel.
  3. 3
    Remove the bolt, screw and 1 upper clip, then remove the front side sill panel.
  4. 4
    Remove the 14 screws and 1 rear upper clip, then remove the side sill panel.
    NOTE: Take care not to damage the side sill and door.
  5. 5
    Install the side panel in the reverse order of removal.
