Sunroof - Wind Deflector Replacement / Wind Deflector Adjustment

14-37prose procedure

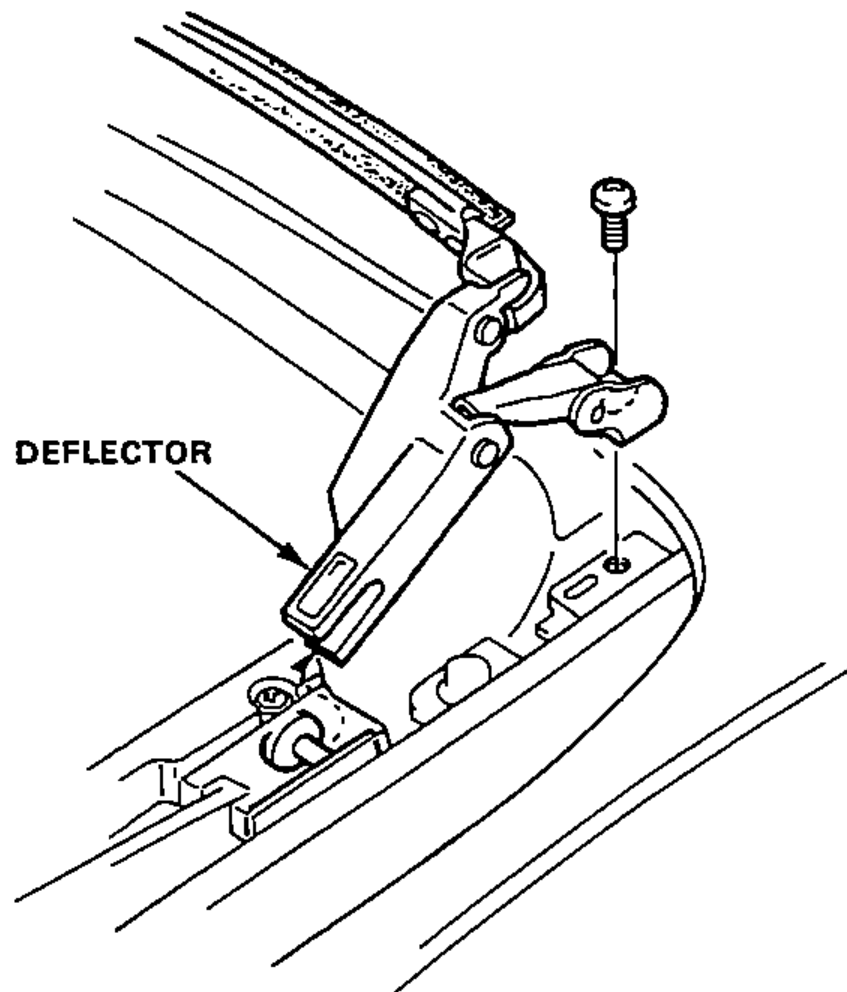

Wind Deflector Replacement

1
Remove the deflector mount screws, then remove the deflector.
2
Install the deflector in the reverse order of removal. Adjust the deflector.

Wind Deflector Adjustment

NOTE

A gap between deflector blade and roof opening edge will cause excessive wind noise when driving at high speed with the roof open.

1
Open the sunroof fully.
2

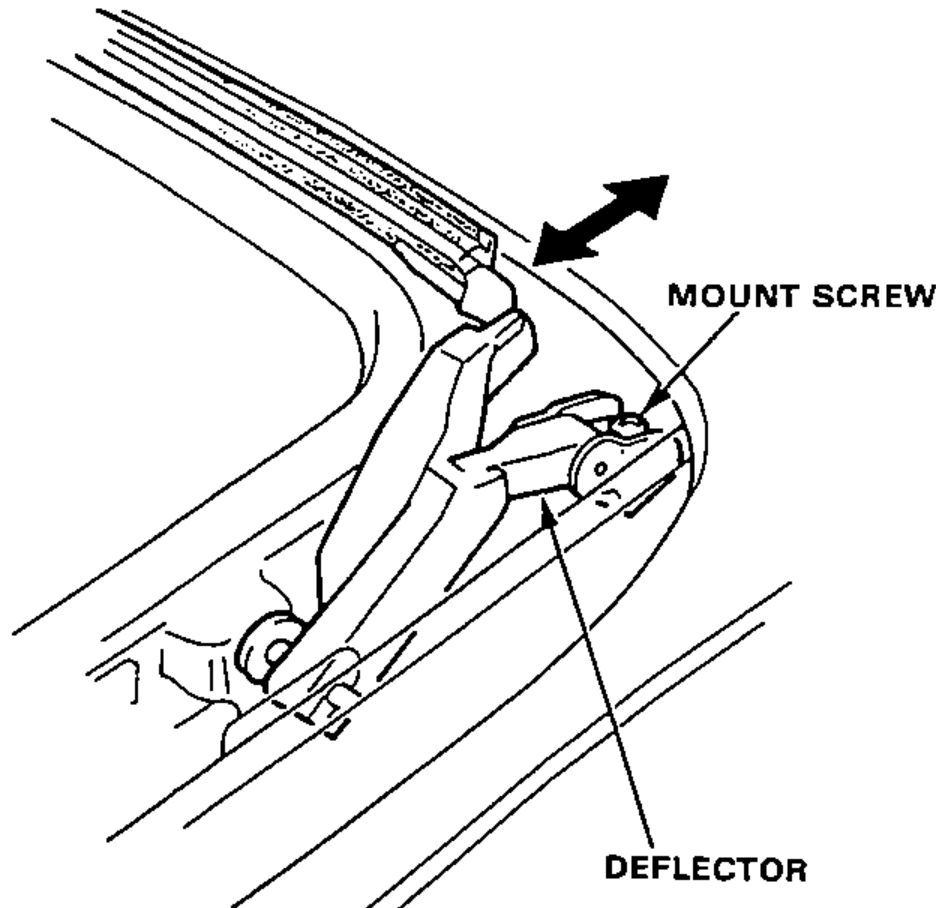

Loosen the deflector mount screws.
3

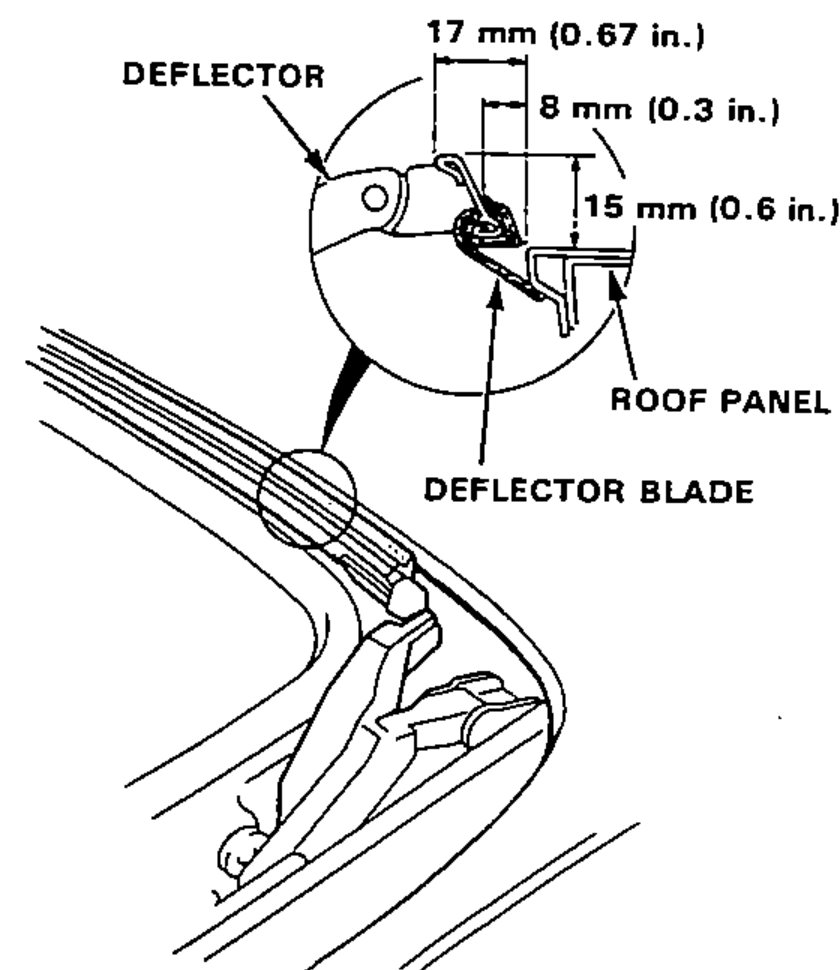

Adjust the deflector forward or backward so the edge of its blade touches the front edge of the roof opening evenly.
4
Check the height of the deflector.
NOTE: The height of the deflector cannot be adjusted. If damaged or deformed, replace or repair it.
