Doors - Disassembly
14-3prose procedureDisassembly

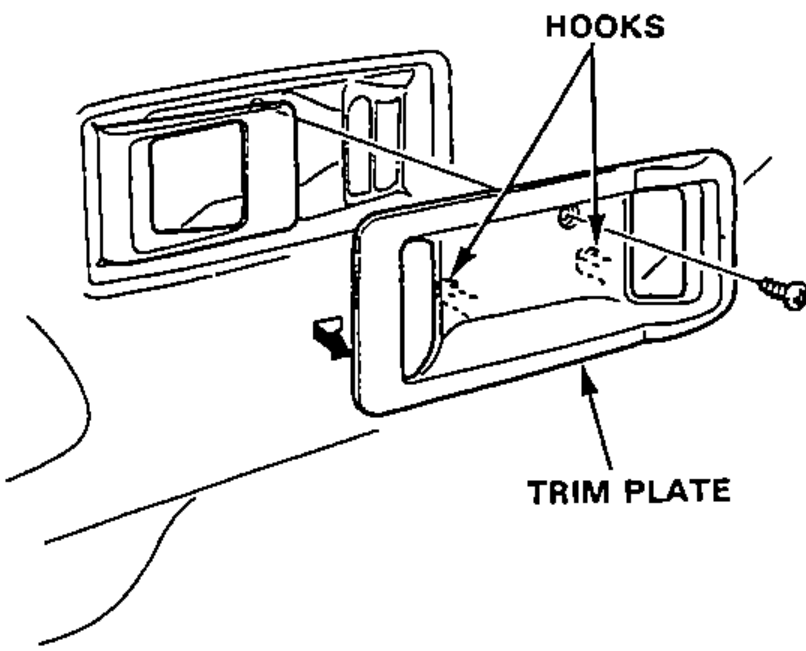

- 1Remove the trim plate screw, then carefully remove the trim plate.

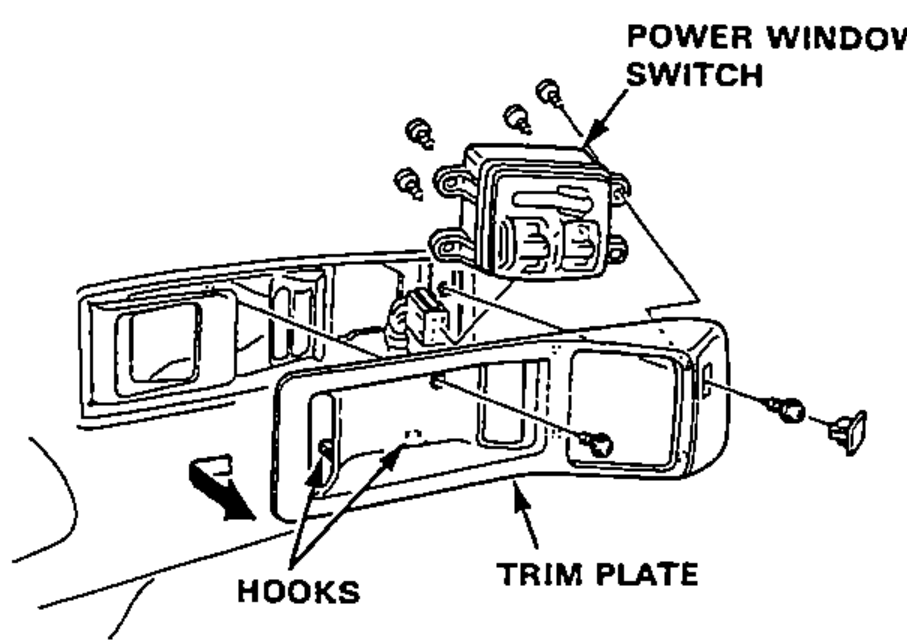

- 2Remove the power window switch, if equipped, from the trim plate by removing the 4 screws.

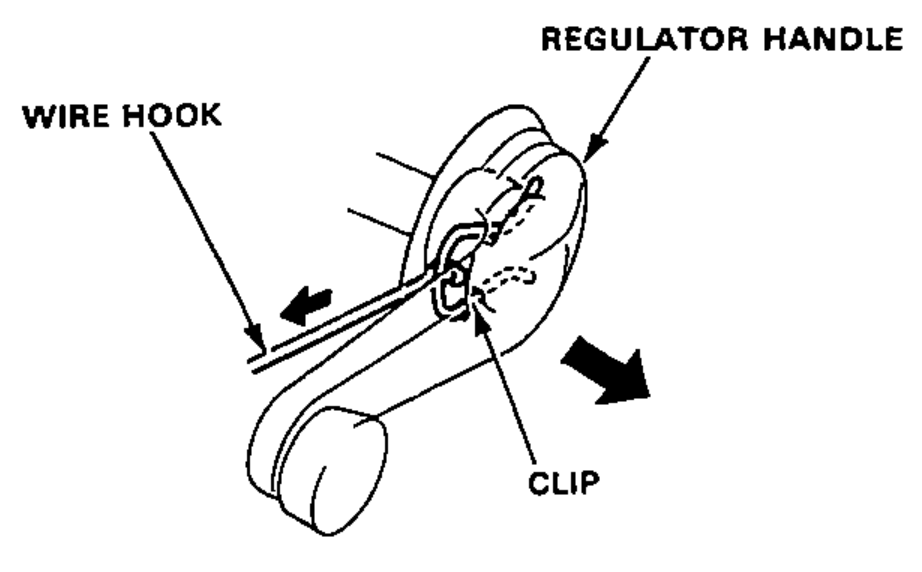

- 3If applicable, remove the regulator handle by pulling the clip out with a wire hook.

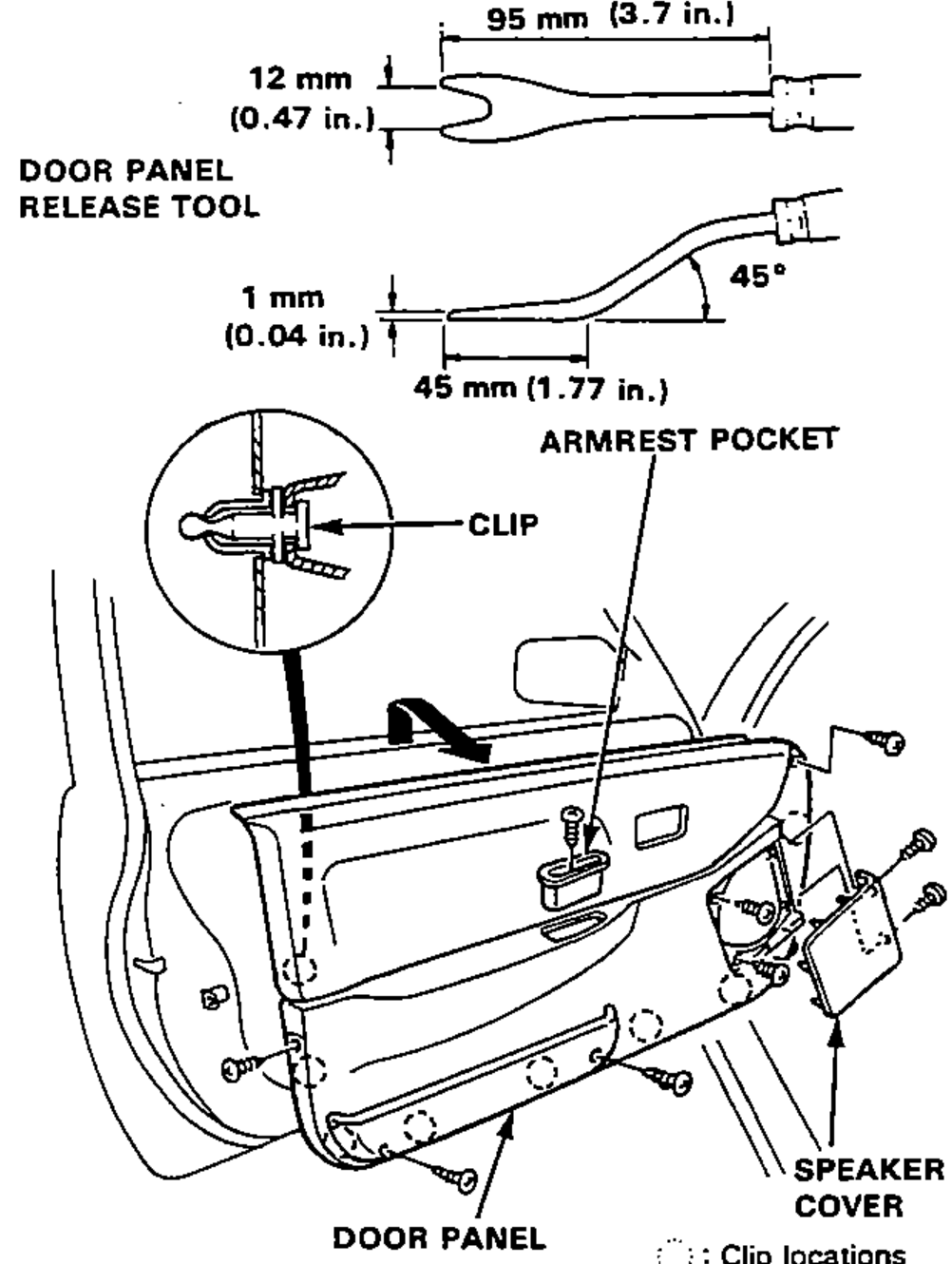

- 4Remove the screw and carefully pry up the armrest pocket. Remove the screws, then remove the speaker cover. Remove the screws and clips (see door panel release tool) attaching the door panel. Remove the door panel by pulling it upward.The speaker cover has 6 hooks on its back side.Remove the panel with as little bending as possible to avoid creasing or breaking it.
- 5Remove the screws, then remove the speaker and door panel bracket.

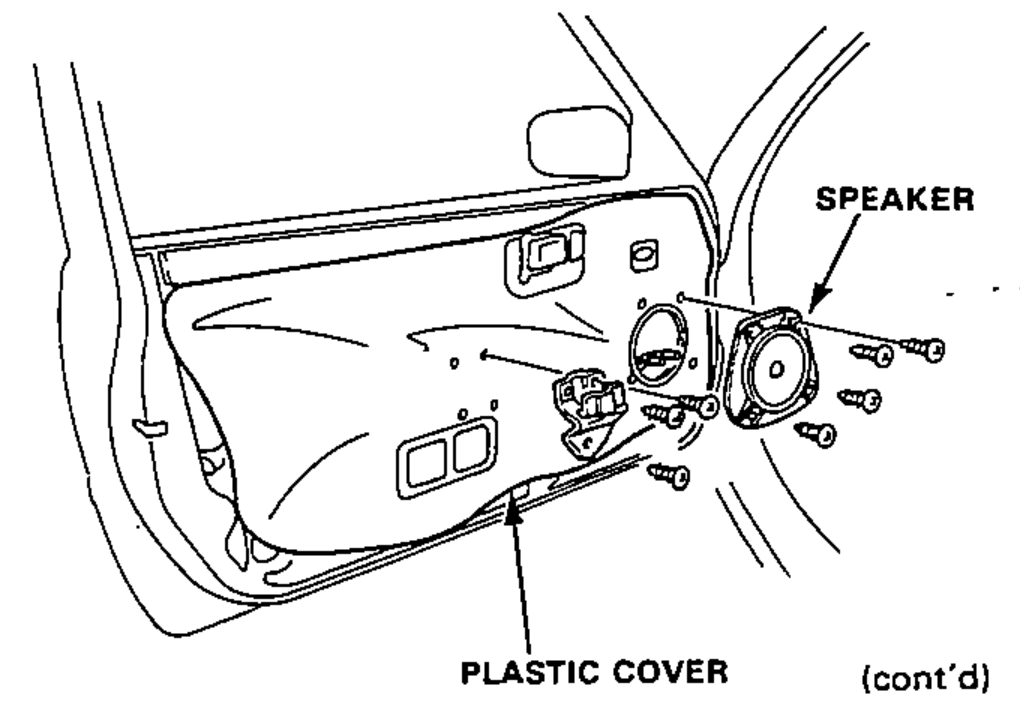

- 6Carefully remove the plastic cover.
| Specification | Value |
|---|---|
| Door panel release tool - overall length | 95 mm (3.7 in.) |
| Door panel release tool - fork slot width | 12 mm (0.47 in.) |
| Door panel release tool - tip thickness | 1 mm (0.04 in.) |
| Door panel release tool - bent section length | 45 mm (1.77 in.) |
| Door panel release tool - bend angle | 45° |
Door panel release tool - overall length
95 mm (3.7 in.)
Door panel release tool - fork slot width
12 mm (0.47 in.)
Door panel release tool - tip thickness
1 mm (0.04 in.)
Door panel release tool - bent section length
45 mm (1.77 in.)
Door panel release tool - bend angle
45°
