Honda CRX silhouetteCRX

Fuel Filler/Tailgate Opener - Replacement

14-63prose procedure

Tailgate/fuel-filler opener procedure applies to the CRX (hatchback) body.

Replacement

  1. 1
    To remove the opener cables, remove the following parts:
  2. 2
    Remove the screw and the release levers, then remove the opener cover. Remove the opener by removing the 2 bolts.

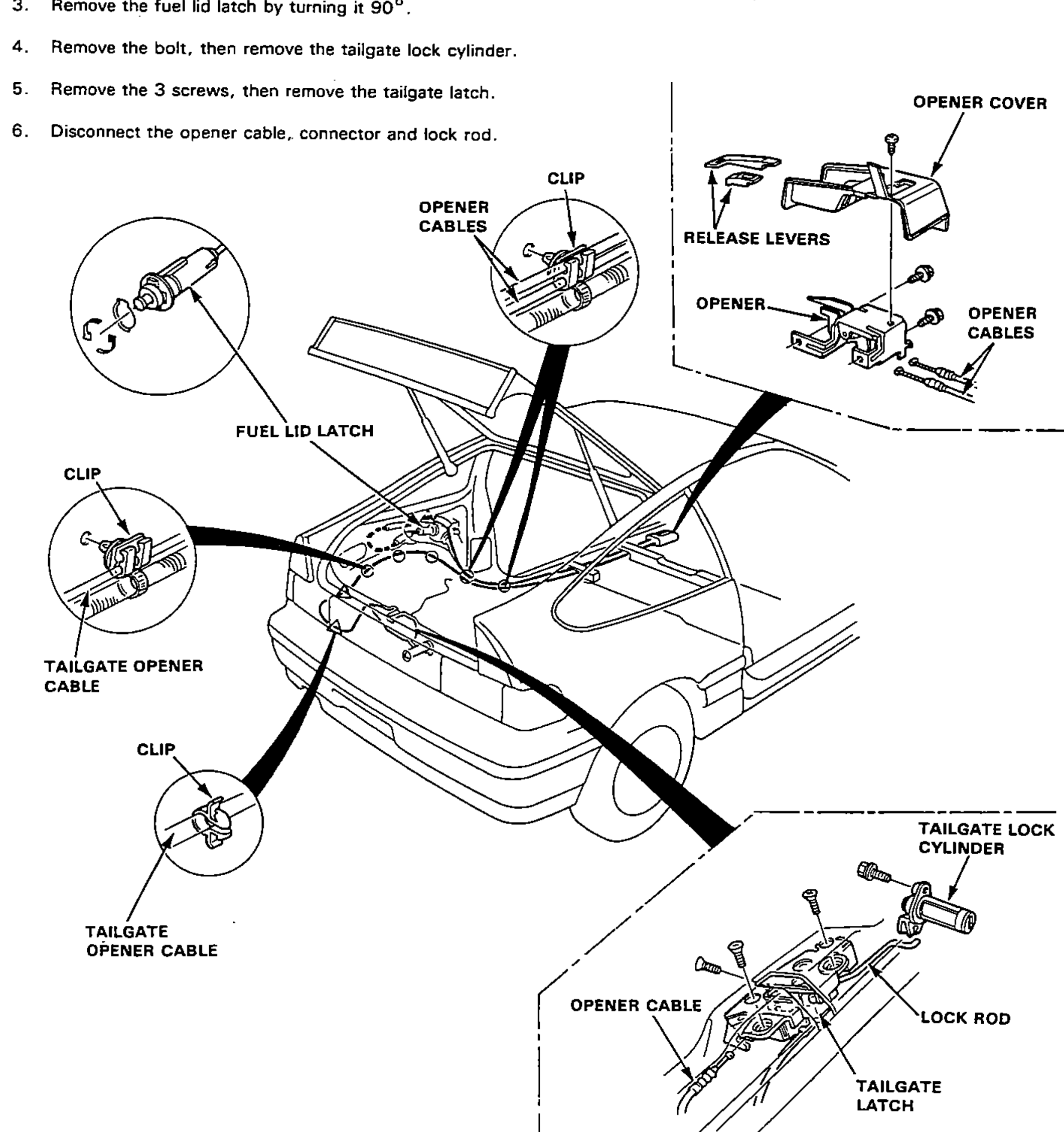

    Rear-quarter view of the CRX showing the routing of the tailgate and fuel-lid opener cables from the opener/release levers in the cabin to the fuel lid latch and the tailgate latch. Insets detail the opener cover, release levers and opener; the fuel lid latch; the clips holding the opener cables; and the tailgate lock cylinder, tailgate latch, opener cable and lock rod.
  3. 3
    Remove the fuel lid latch by turning it 90°.
  4. 4
    Remove the bolt, then remove the tailgate lock cylinder.
  5. 5
    Remove the 3 screws, then remove the tailgate latch.
  6. 6
    Disconnect the opener cable, connector and lock rod.
  7. 7
    To install, reverse the removal procedure. Check that the tailgate and fuel lid opener cables are routed and connected properly.
