Sunroof - Closing Fit / Closing Force Check
14-35prose procedureClosing Fit

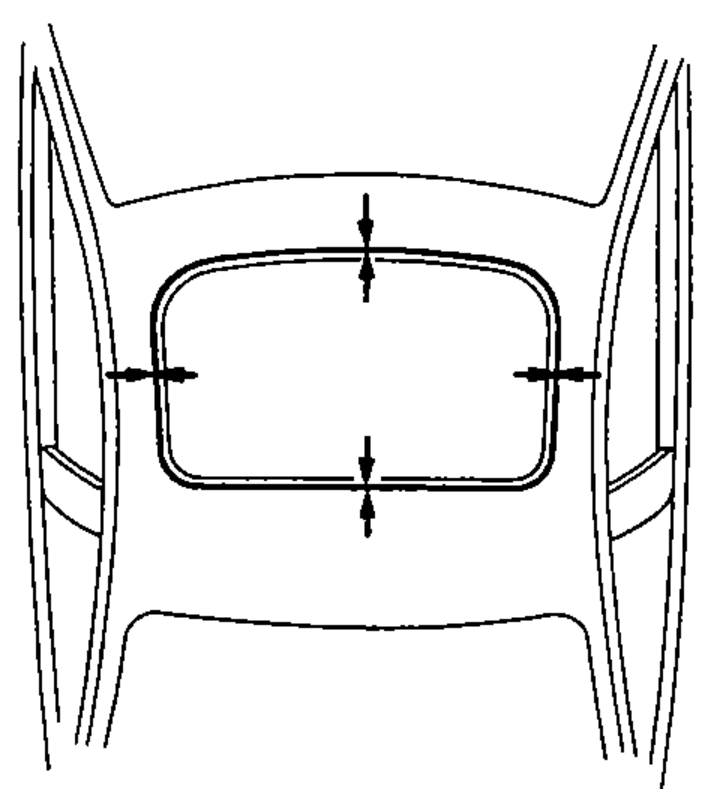

If the fit of the sunroof seal is too tight at the front seal when the sunroof is closed, or too tight at the rear seal when it is pulled down into the closed position, proceed as follows:
- 1Open the sunroof fully.

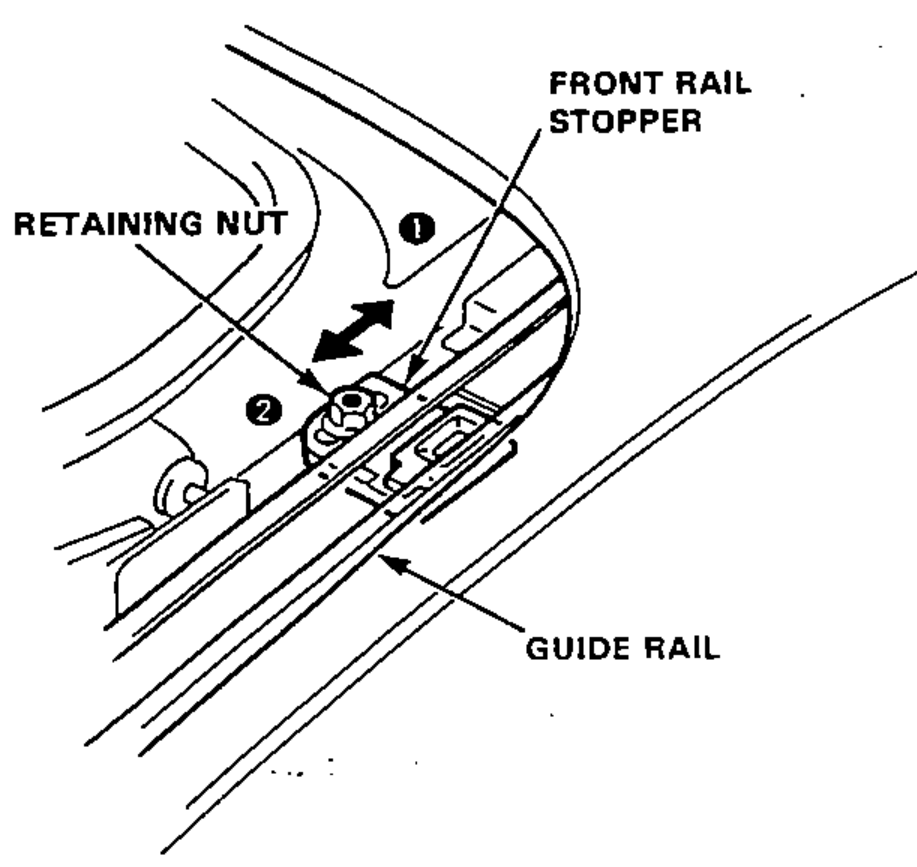

- 2Loosen the front rail stopper nuts.
- 3Slide the stoppers forward or backward until the sunroof closes snugly.NOTE: Slide the right and left stoppers equally.
Closing Force Check

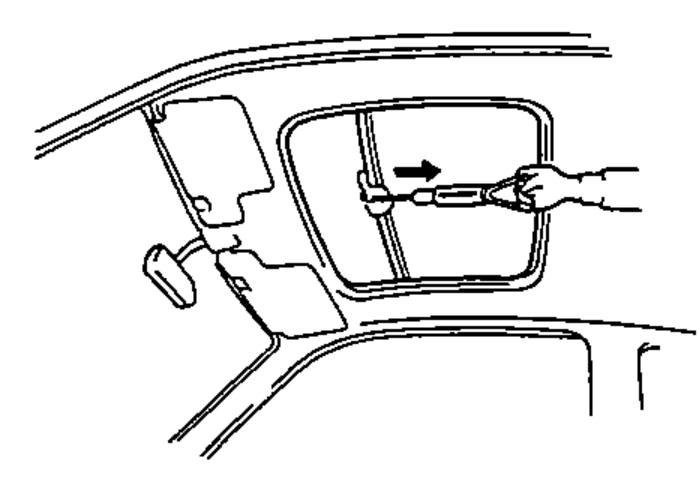

- 1After installing all removed parts, have a helper hold the switch to close the sunroof while you measure force required to stop it. Attach spring scale as shown. Read force as soon as sunroof stops moving, then immediately release the switch and spring scale.CAUTION: When using the spring scale, protect the leading edge of the sunroof with a shop towel.Closing Force: 196-245 N (20-30 kg, 44-66 lb)

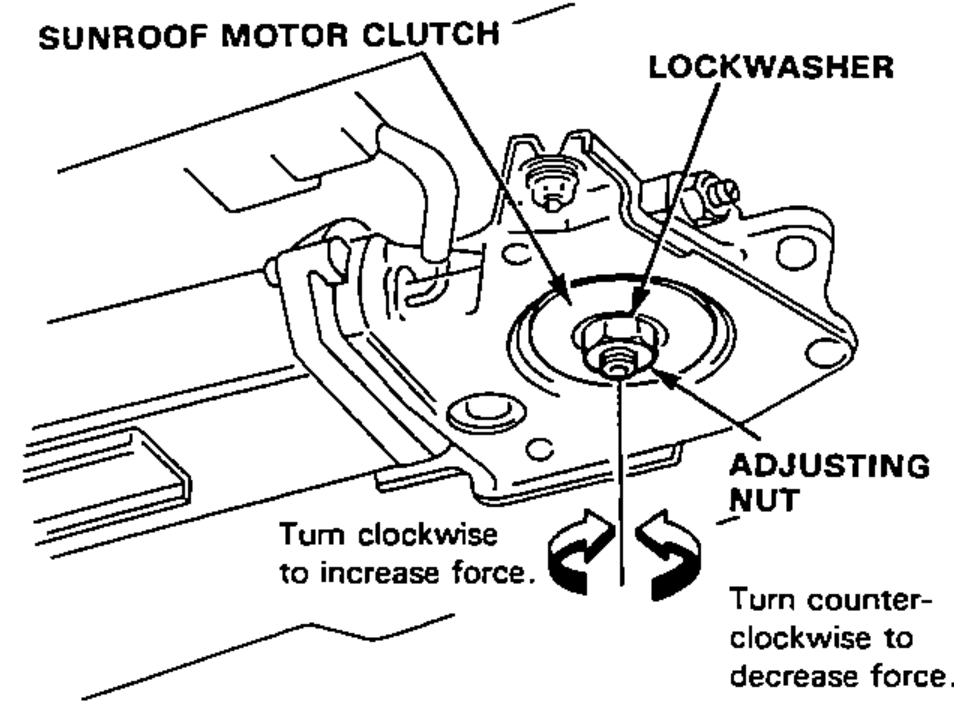

- 2If force is not within specification, adjust by turning sunroof motor clutch adjusting nut.
- 3After adjusting, install a new lockwasher and bend it flat against the adjusting nut.
| Specification | Value |
|---|---|
| Closing Force | 196-245 N (20-30 kg, 44-66 lb) |
Closing Force
196-245 N (20-30 kg, 44-66 lb)
