Seat Belts - Rear Replacement

14-50prose procedure

Rear Replacement

  1. 1
    Remove the rear seat (page 14-48).
  2. 2
    Remove the quarter trim panel (page 14-44).
  3. 3
    Remove the the anchor bolts with a 17 mm socket or box-end wrench.

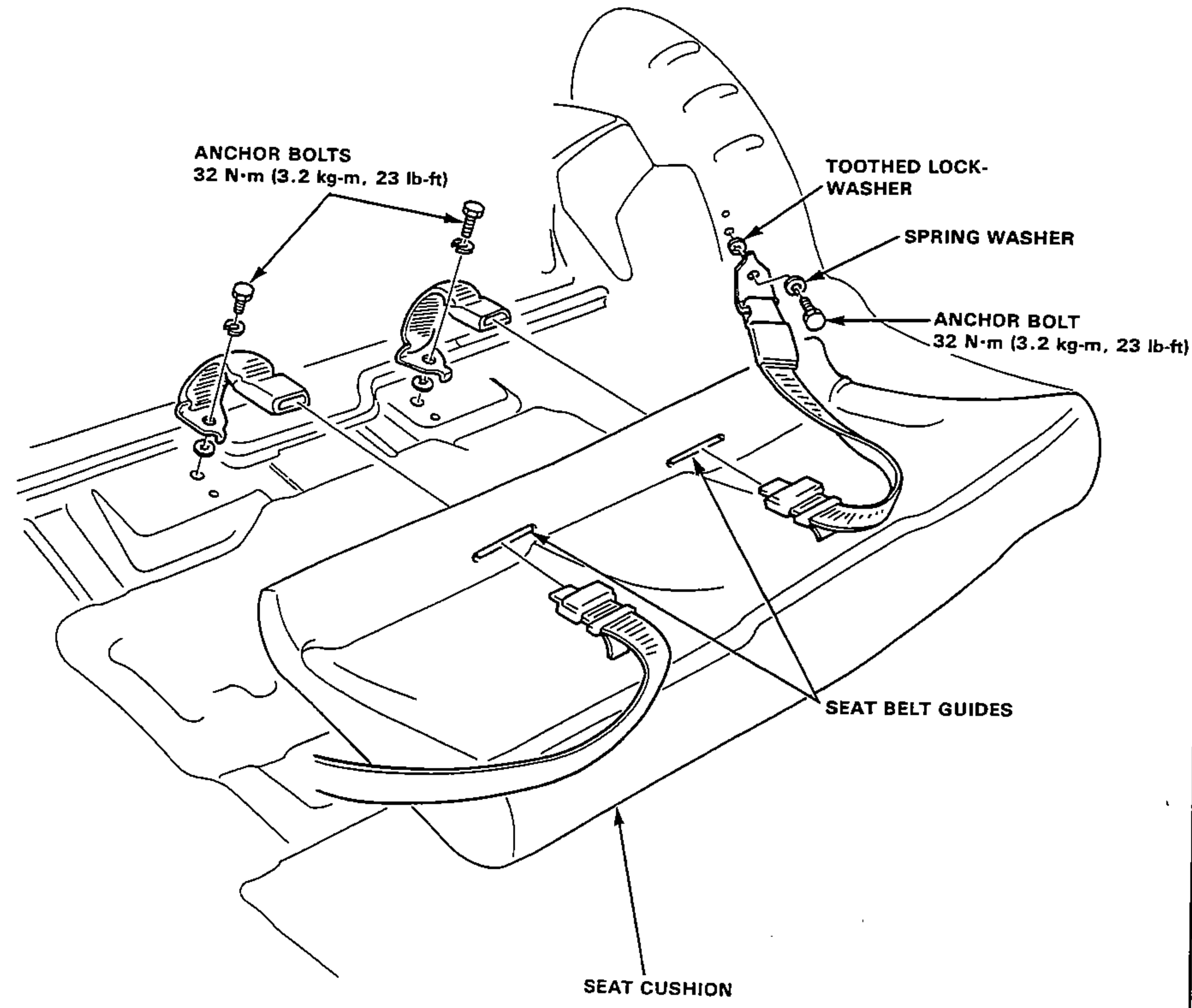

    Rear seat belt installation on the rear floor/seat cushion area. Shows the two inner anchor bolts with buckle assemblies, the outer belt anchor bolt with toothed lock-washer and spring washer, the seat belts routed through the seat belt guides, and the seat cushion.
  4. 4
    Install the seat belt in the reverse order of removal.
    Before attaching the quarter trim panel, make sure there are no twists in the belts.
    Pass the seat belts through the seat belt guides of the seat cushion and side box lid (page 14-44).
Anchor bolts
32N·m
