Sunroof - Rear Slide Bracket Replacement / Rear Slide Bracket Wear Inspection
14-38prose procedureRear Slide Bracket Replacement
- 1Remove the sunroof panel (page 14-36).

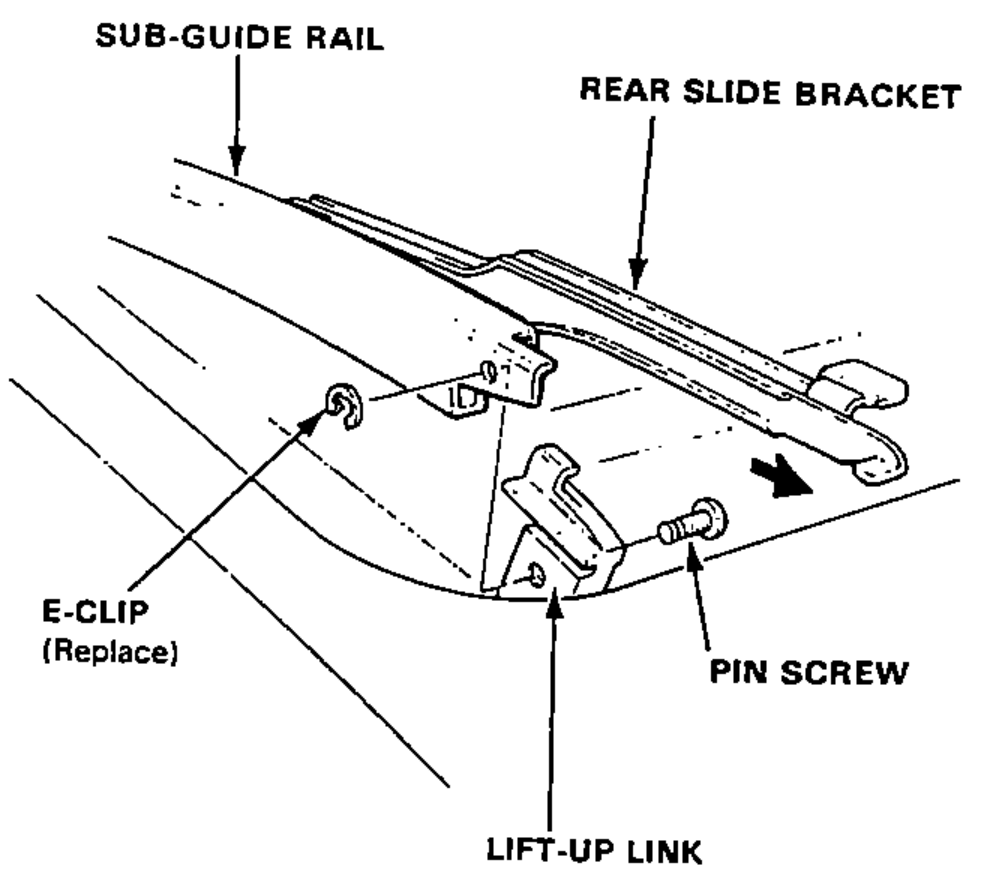

- 2Remove the e-clip and pin screw, then separate the lift-up link and sub-guide rail.
- 3Slide the rear slide brackets off the guide rail.
- 4Install the brackets in the reverse order of removal. Before installing the rear slide brackets, check that there is no excessive play between the brackets and roof guide rails (on the sunroof panel and the frame.)
Rear Slide Bracket Wear Inspection
Remove the rear slide brackets. Check the roof guide rails (on the sunroof panel and the frame) and rear slide brackets for excessive wear on the sliding faces. Replace the rear slide brackets with new ones if worn excessively.
