Honda CRX silhouetteCRX

Power Door Mirror

14-8prose procedure

Removal

  1. 1
    Remove the door panel and disconnect the power mirror connector.

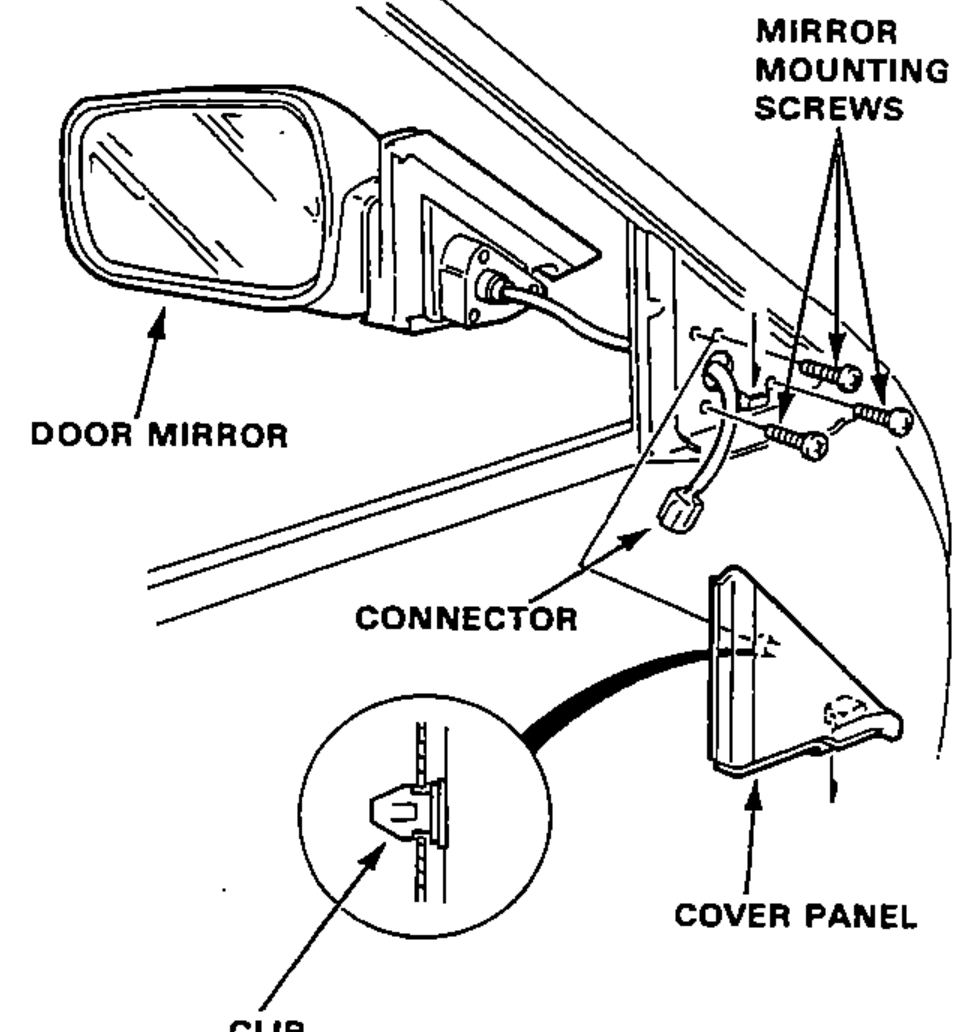

    Exploded/illustrated view of the door mirror removal. Shows the door mirror mounted on the door, with the mirror mounting screws, the electrical connector, the cover panel, and the retaining clip.
  2. 2
    Pry out the cover panel with a flat-tip screwdriver, then remove the cover panel.
  3. 3
    Remove the mirror mounting screws while holding the mirror.

Mirror Glass Replacement

  1. 1
    Heat the edge of the glass with a low powered heat gun for several minutes, then remove the glass.

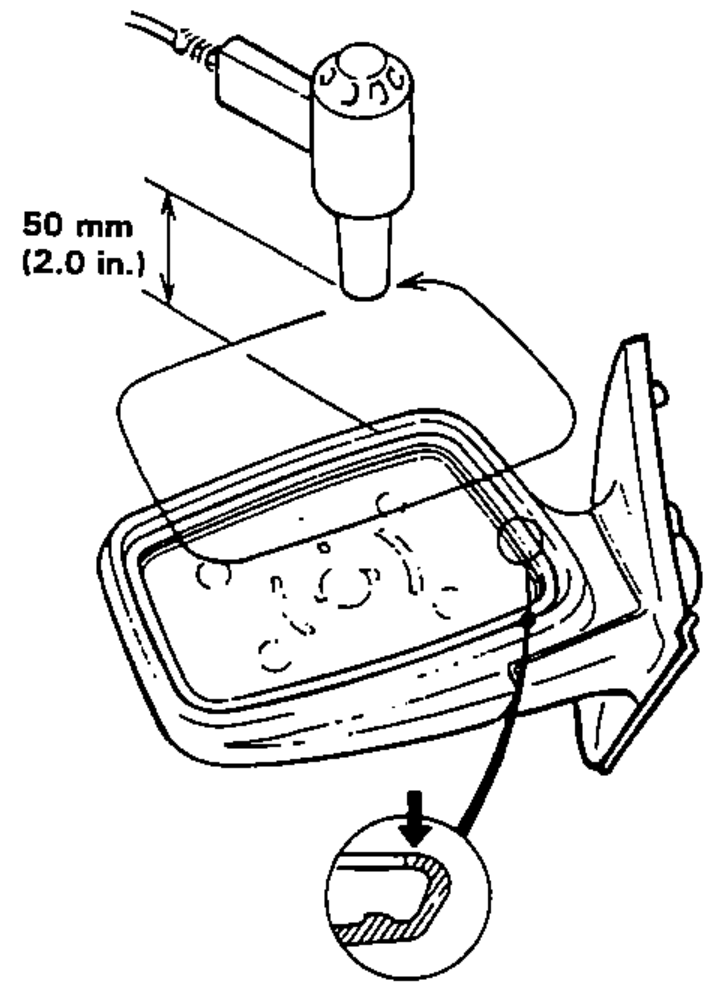

    Mirror glass replacement, step 1. Shows a low-powered heat gun held about 50 mm (2.0 in.) from the edge of the mirror glass to remove it from the mirror case, with a detail of the glass edge.
  2. 2
    Install the glass in the mirror case, narrow end first.

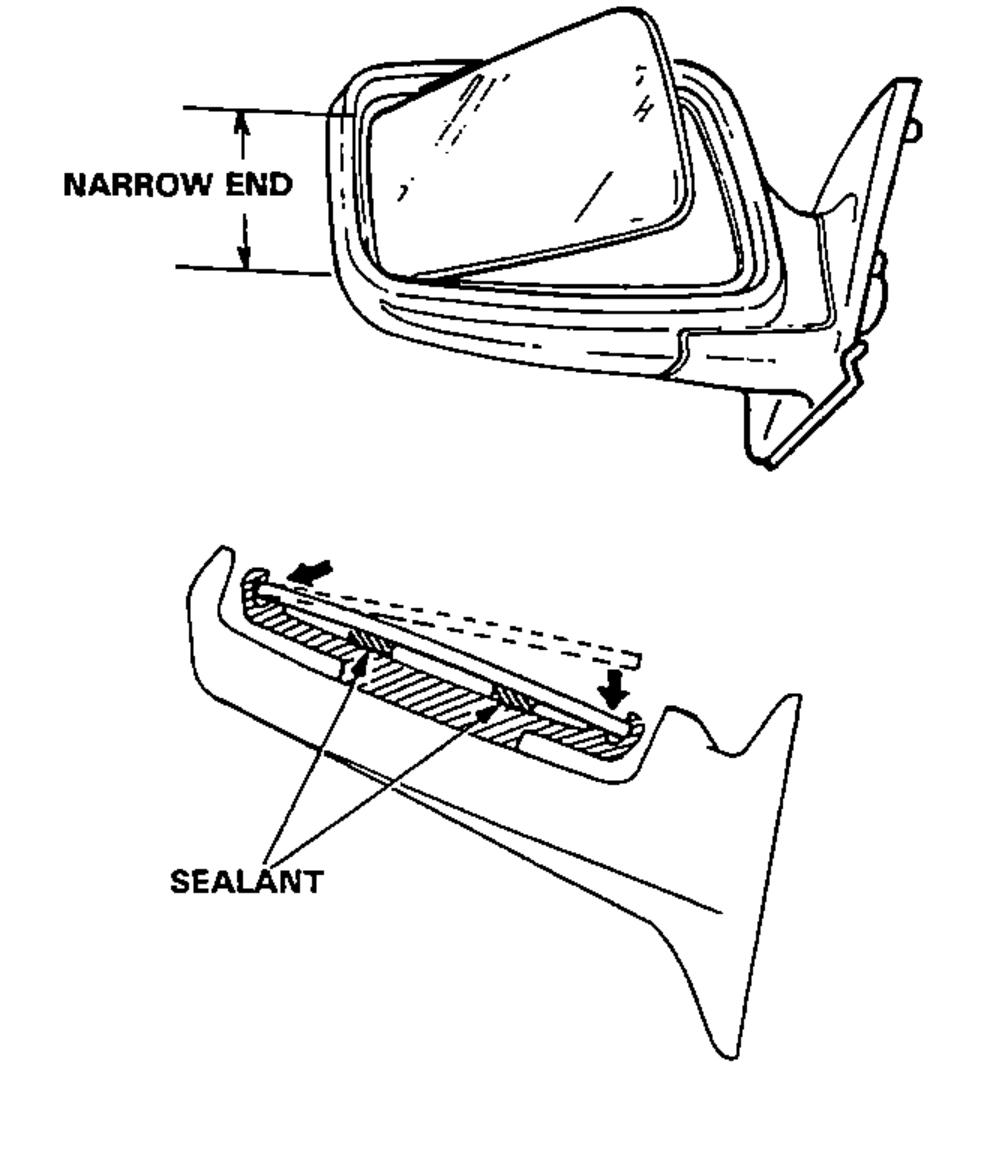

    Mirror glass replacement, step 2. Shows installing the mirror glass into the mirror case narrow end first, with a lower detail view indicating where sealant is applied.
