Doors - Disassembly (cont'd)

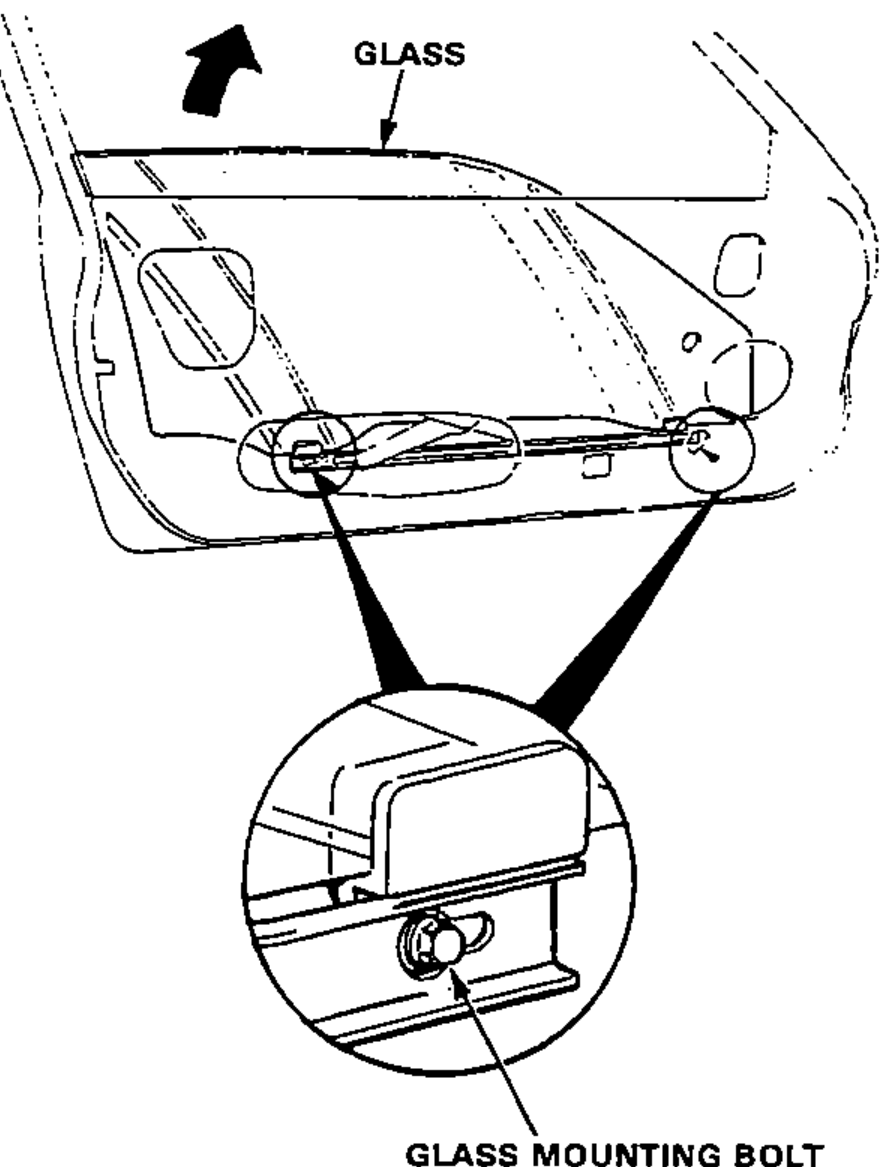

14-5prose procedure- 16Carefully raise the window until you can see its mounting bolts. Loosen the bolts and pull the door glass out through the window slot.

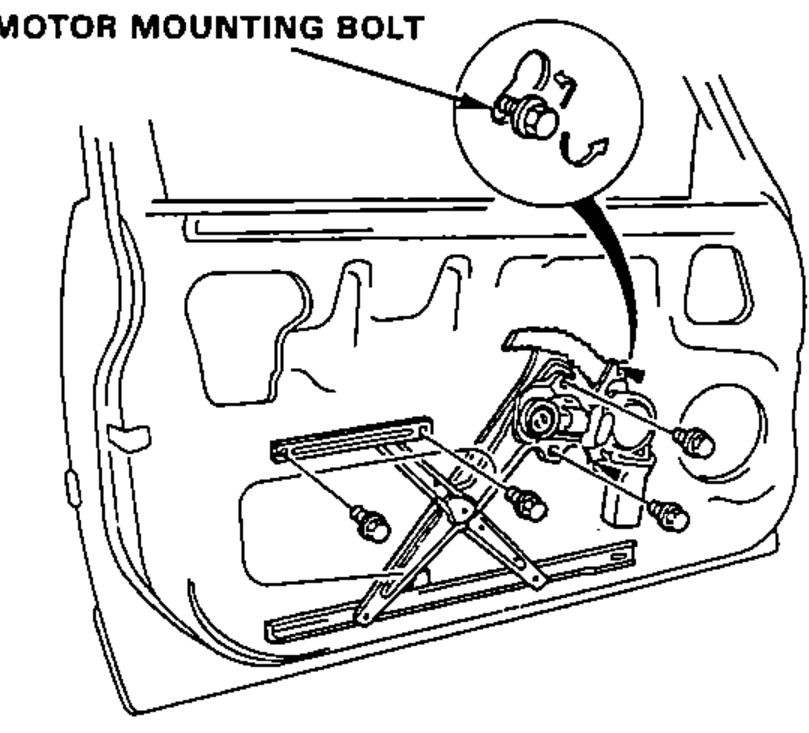

- 17Remove the 4 mounting bolts and loosen the 2 motor mounting bolts, then take out the regulator assembly through the lower hole in the door.
- 18Remove the glass run channel.

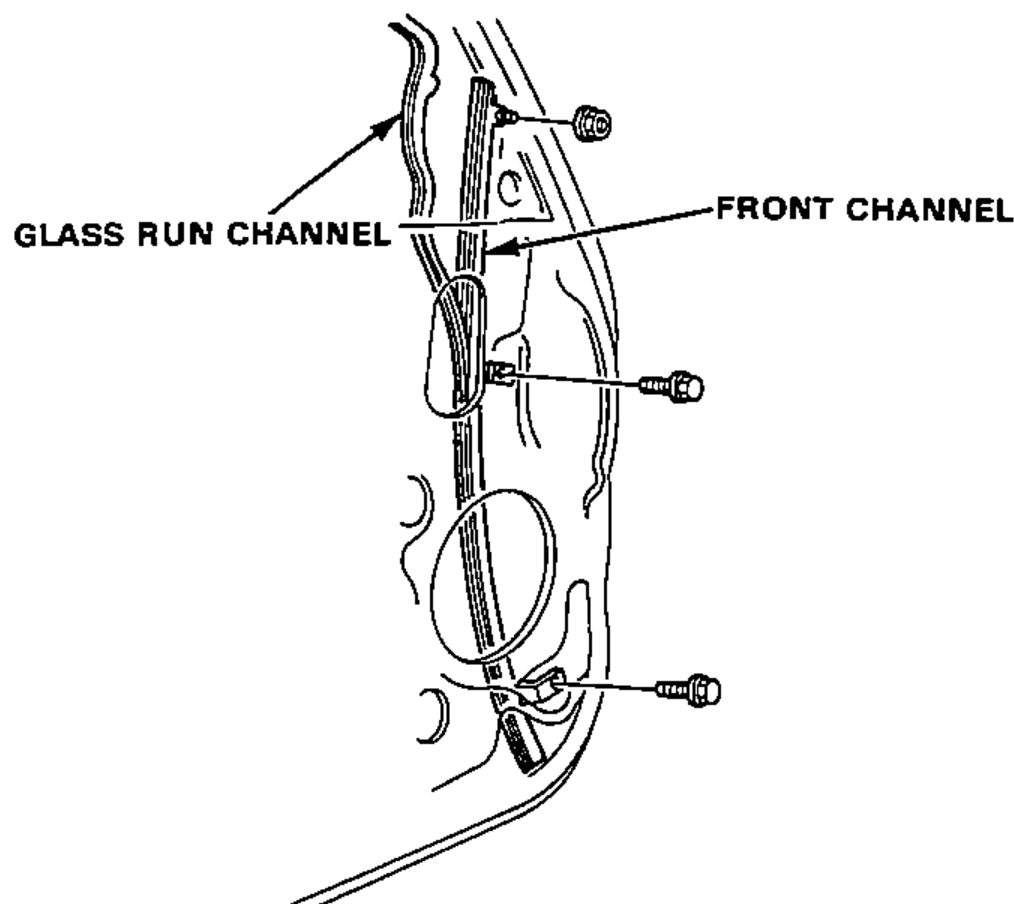

- 19Remove the front channel by removing the 2 bolts and the nut.Before installation, insert the glass run channel into the front channel.

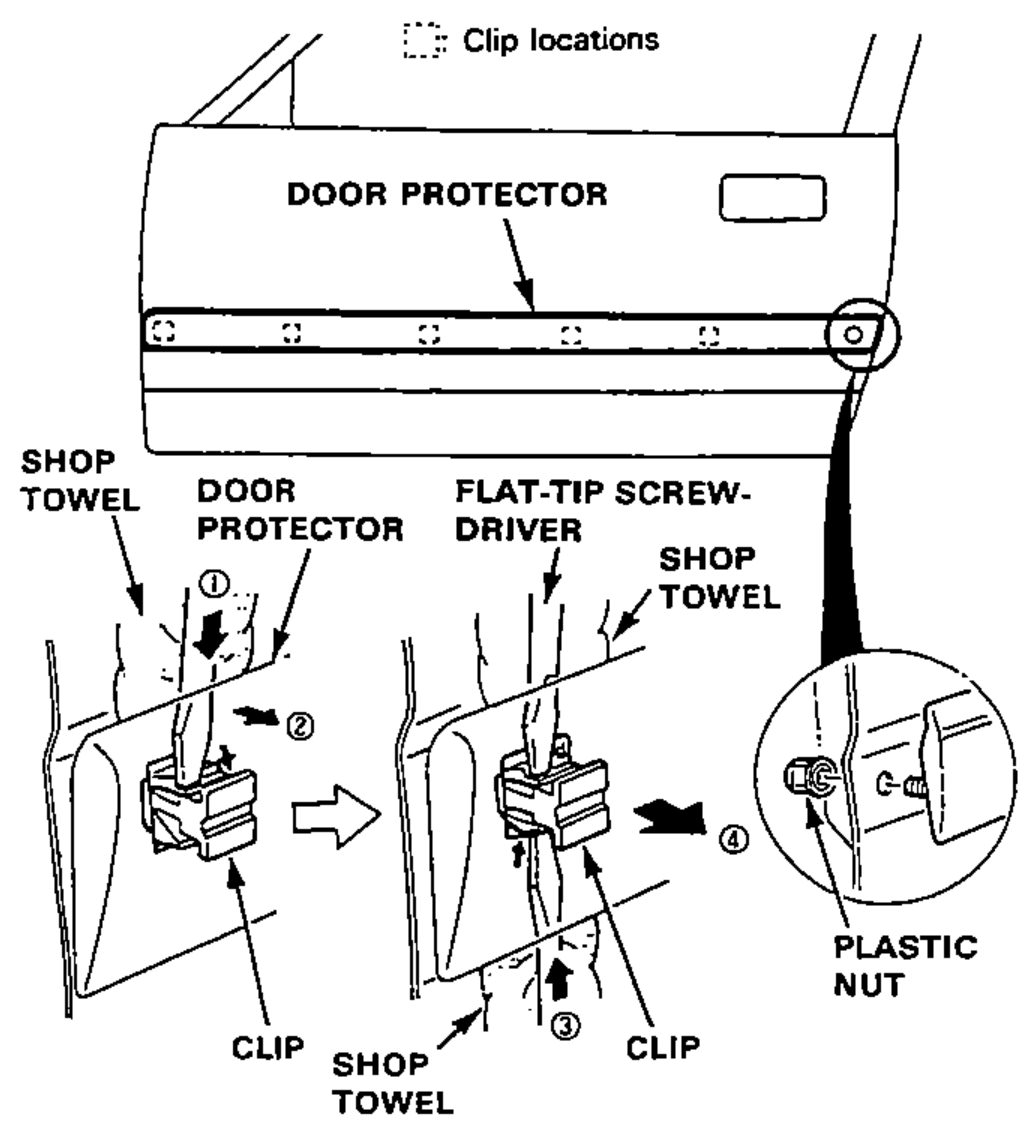

- 20Remove the door protector by removing the nut and detach the clips from the inside, or outside.
