Front Bumper - Replacement

14-58prose procedure

NOTE applies to cars with A/C: cut off and discard the 5 radiator grille covers when installing a new bumper.

Replacement

  1. 1
    Remove the right and left front turn signal lights.

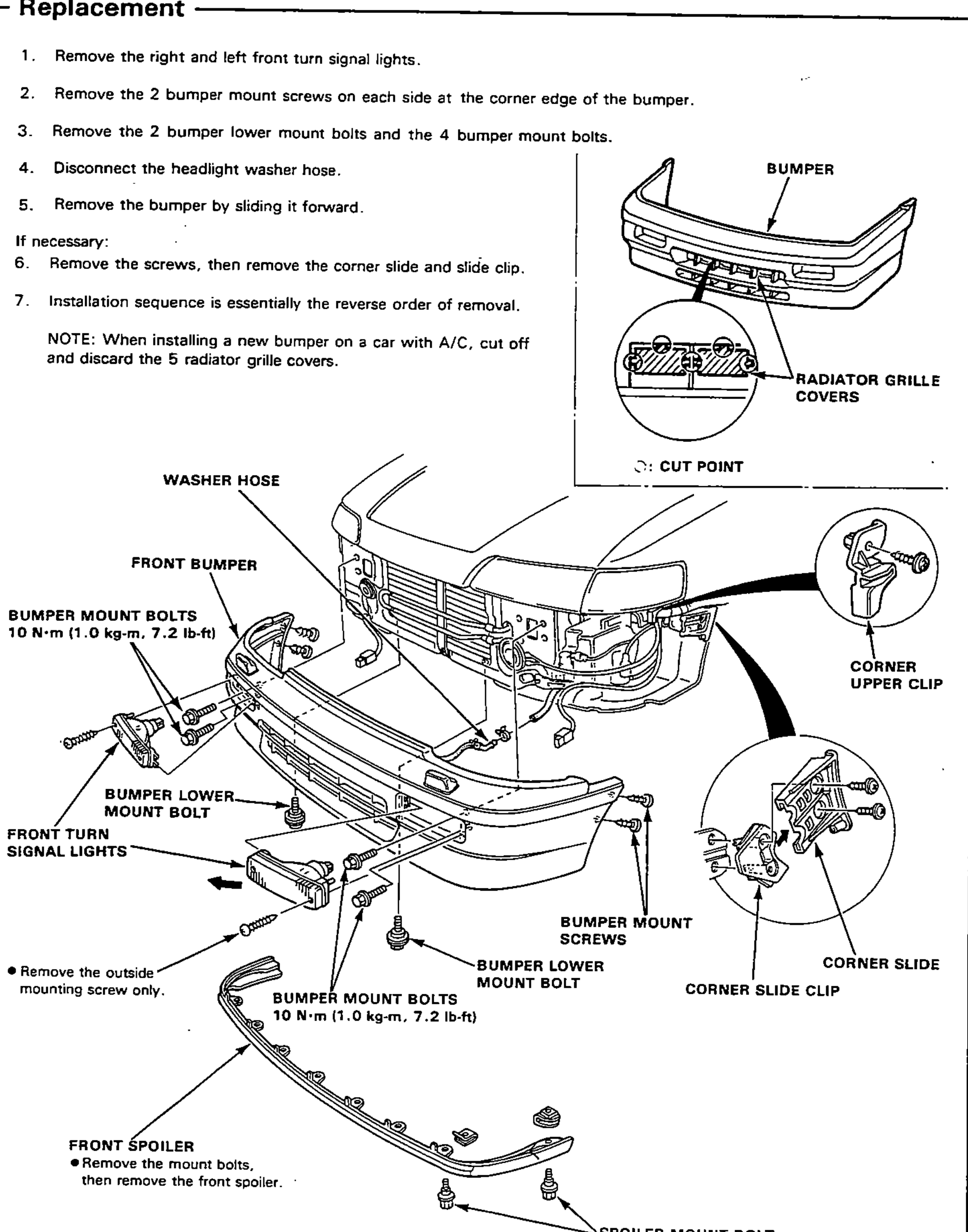

    Exploded view of the front bumper assembly showing the washer hose, front bumper, bumper mount bolts and bumper lower mount bolt, front turn signal lights, bumper mount screws, corner slide, corner slide clip and corner upper clip, plus the front spoiler with its spoiler mount bolts. An upper inset shows the bumper and the radiator grille covers with a cut point.
  2. 2
    Remove the 2 bumper mount screws on each side at the corner edge of the bumper.
  3. 3
    Remove the 2 bumper lower mount bolts and the 4 bumper mount bolts.
  4. 4
    Disconnect the headlight washer hose.
  5. 5
    Remove the bumper by sliding it forward.
  6. 6
    If necessary: Remove the screws, then remove the corner slide and slide clip.
  7. 7
    Installation sequence is essentially the reverse order of removal.
    NOTE: When installing a new bumper on a car with A/C, cut off and discard the 5 radiator grille covers.
Bumper mount bolts
10N·m
