Hood - Replacement/Adjustment

14-60prose procedure

Replacement/Adjustment

  1. 1
    Pull the windshield washer hose out of the hood.

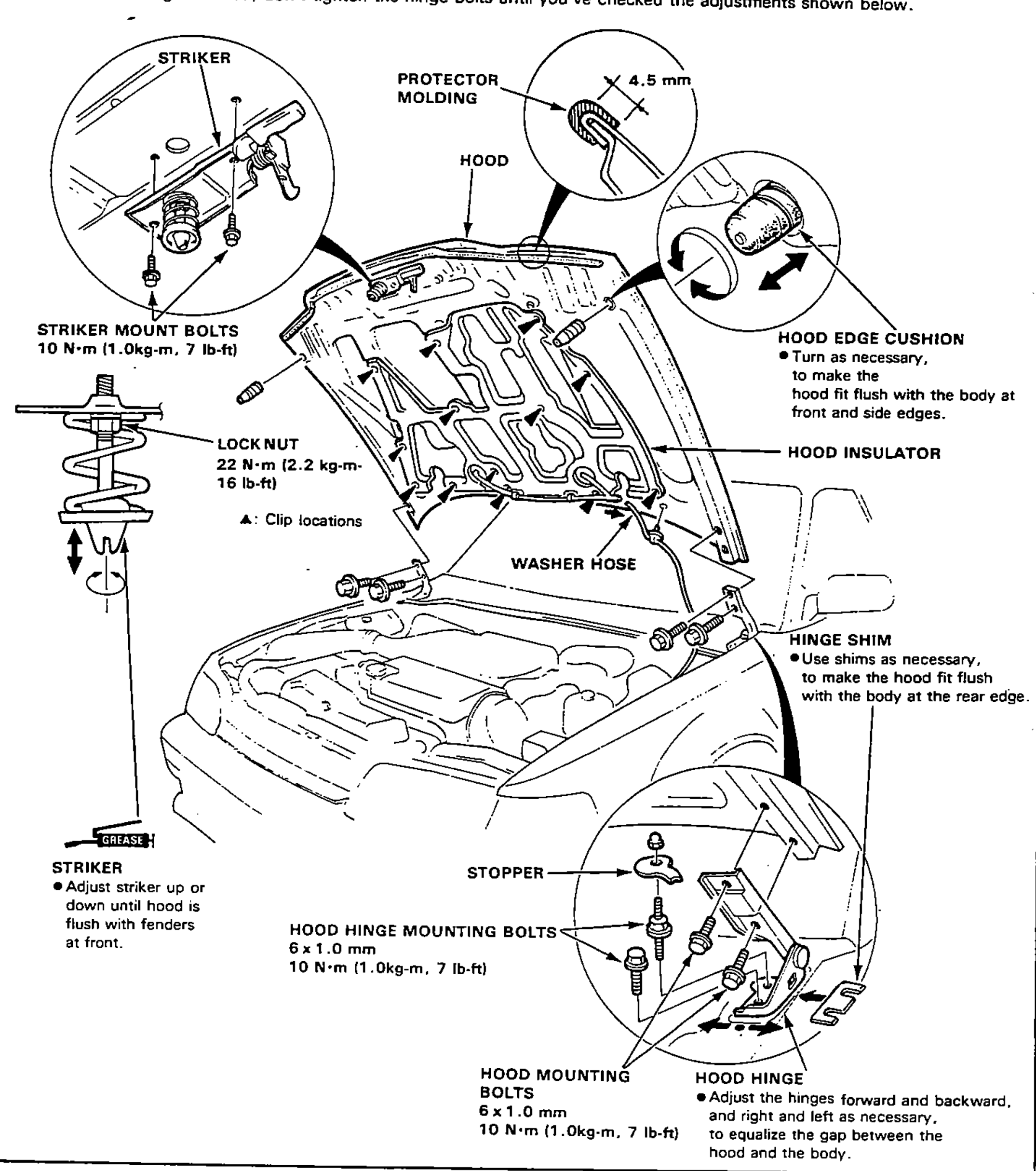

    Overall hood replacement/adjustment illustration showing the raised hood with the hood insulator and clip locations, the washer hose, protector molding (with a 4.5 mm gap detail inset), the hood edge cushion, hinge shim, striker and striker mount bolts (inset), lock nut, hood hinge and hood mounting bolts, and the stopper. Adjustment notes are called out around the diagram.
  2. 2
    Hold the hood up and remove the 2 hood mounting bolts on each side, then remove the hood.
  3. 3
    To remove the hood hinges, remove the front windshield wiper and air scoop.
  4. 4
    When installing the hood, don't tighten the hinge bolts until you've checked the adjustments shown below.
Striker mount bolts
10N·m
Lock nut
22N·m
Hood hinge mounting bolts (6 x 1.0 mm)
10N·m
Hood mounting bolts (6 x 1.0 mm)
10N·m
