Sunroof - Height Adjustment / Side Clearance Adjustment

14-34prose procedure

Height Adjustment

The roof panel should be flush with the sunroof seal.
  1. 1
    To adjust the front of the sunroof, remove the slide bracket mount bolt and add or remove shims between the slide bracket and the slide pin as shown.
    NOTE: The shims should be of equal thickness on both sides.

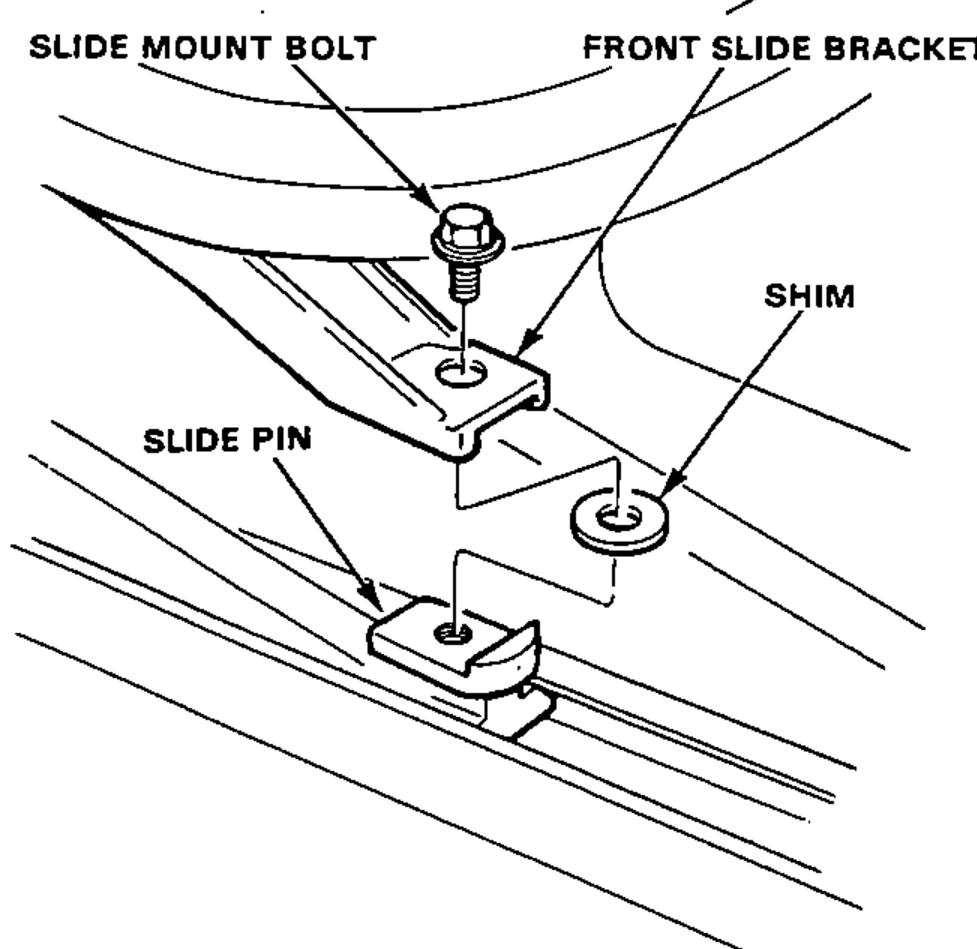

    Exploded view of the sunroof front slide bracket showing the slide mount bolt, slide pin and shim used for front height adjustment.
  2. 2
    To adjust the rear height, remove the lift-up link (page 14-41) and add or remove shims between the lift-up link and frame as shown.
    NOTE: The shims should be of equal thickness on both sides.

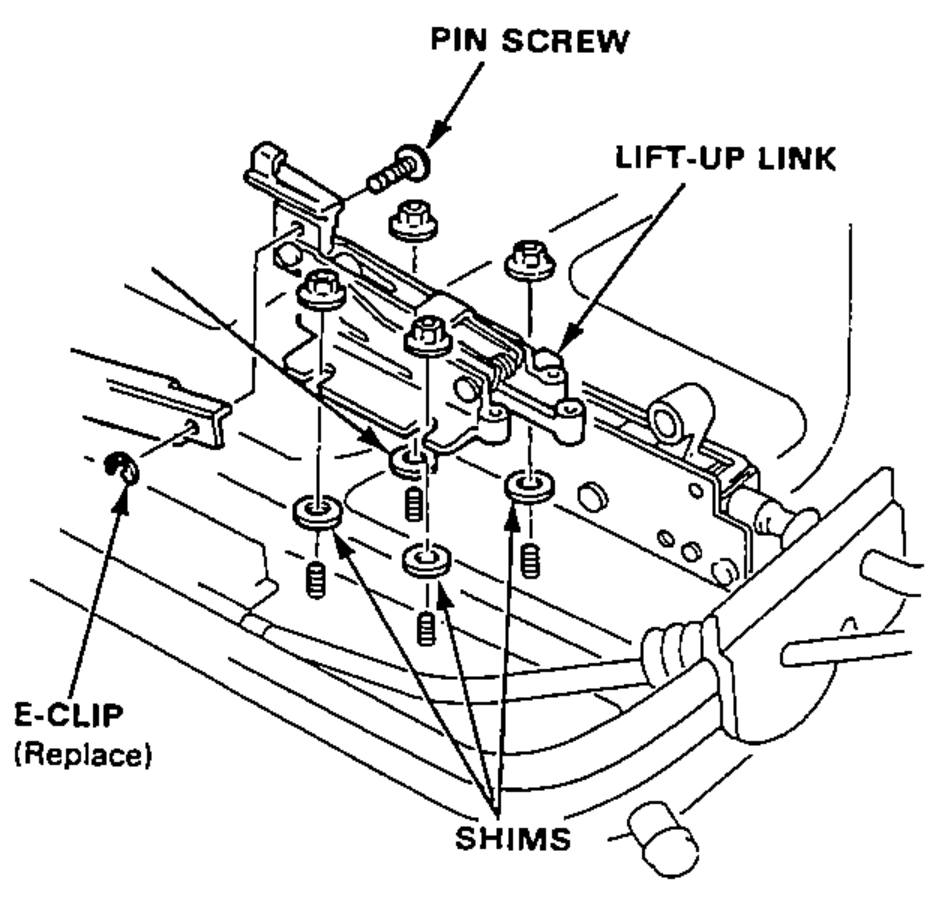

    Exploded view of the sunroof lift-up link assembly showing the pin screw, lift-up link, E-clip and shims used for rear height adjustment.

Side Clearance Adjustment

If sunroof seal fits too tightly against the roof panel on one side when closed, remove the headliner, then:
  1. 1
    Loosen all frame mount bolts.

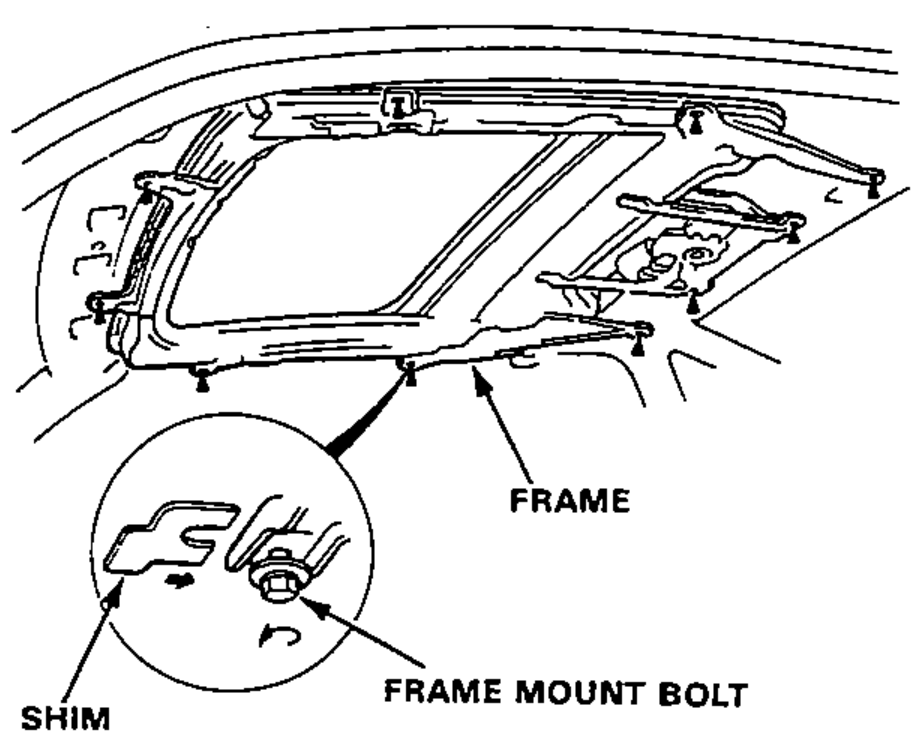

    View of the sunroof frame from below the headliner showing the frame, frame mount bolt and shim, with an inset detail of the shim installation for side clearance adjustment.
  2. 2
    Side-to-side fit of sunroof seal can be adjusted by moving it right or left by hand.
  3. 3
    If necessary, use shims as required to make the sunroof panel fit flush with the roof panel.

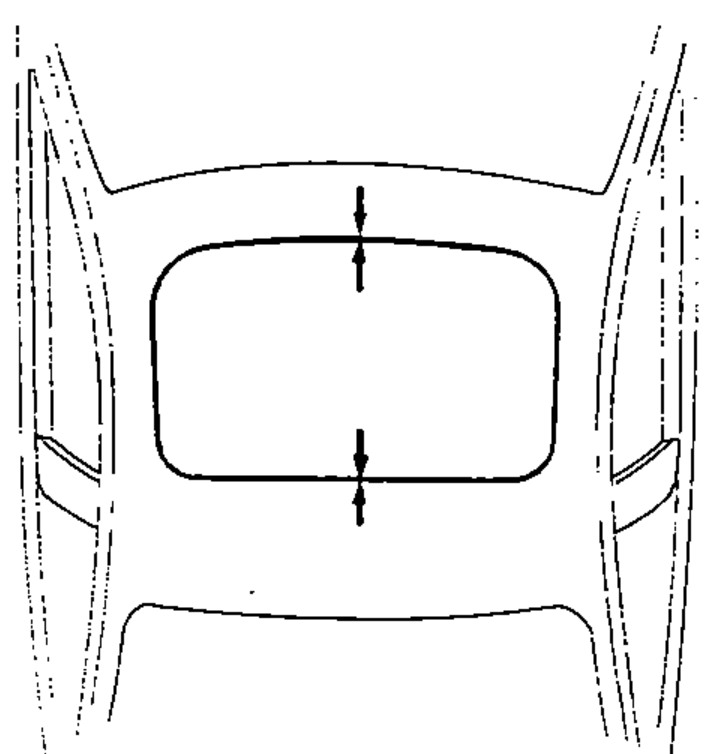

    Rear view of the roof showing the sunroof panel opening with arrows indicating the flush fit check between the sunroof panel and the roof panel.
  4. 3
    Tighten bolts, recheck.
