Honda CRX silhouetteCRX

Headliner - Replacement

14-45prose procedure

Roof trim removal applies to Sunroof model.

Replacement

  1. 1
    Remove:

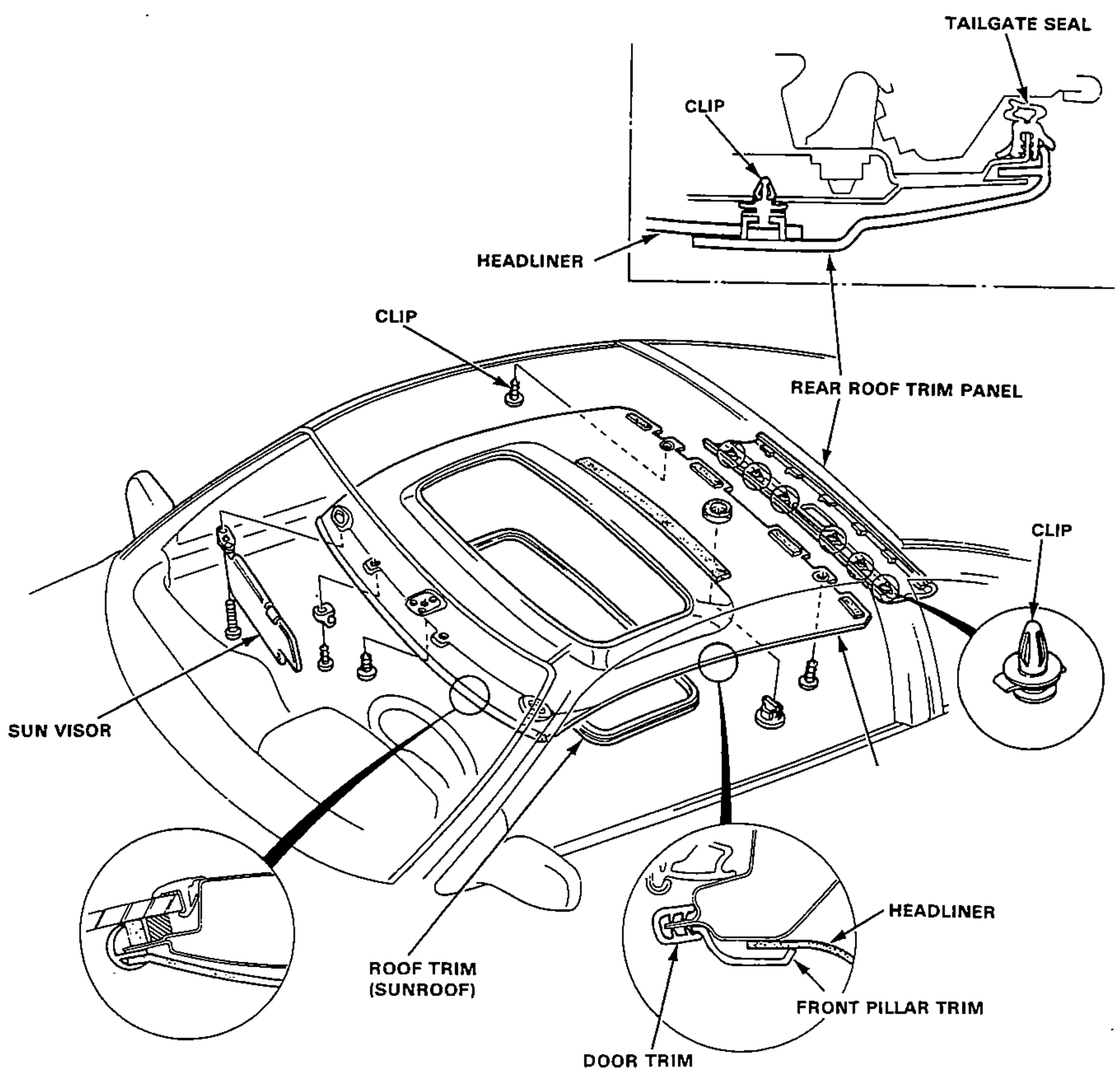

    Exploded/perspective view of the roof and headliner assembly. Shows the sun visor, sunroof roof trim, front pillar trim, door trim, rear roof trim panel with clips, and the headliner edge relative to the tailgate seal. Inset detail views show the roof trim (sunroof) section and the front pillar trim / headliner engagement, plus the rear roof trim panel clip section near the tailgate seal.
  2. 2
    Remove the clips and rear roof trim panel, then remove the headliner.
  3. 3
    Assemble the headliner in the reverse order of disassembly.
    When installing the headliner inside the passenger compartment, be careful not to fold or bend it. Also, be careful not to scratch the body.
    Check that the two sides of the headliner are securely attached to the trim.
