Doors - Assembly

14-6prose procedure
Continued from 14-5

Assembly

Assemble the door in the reverse order of disassembly, and also:
  1. 1

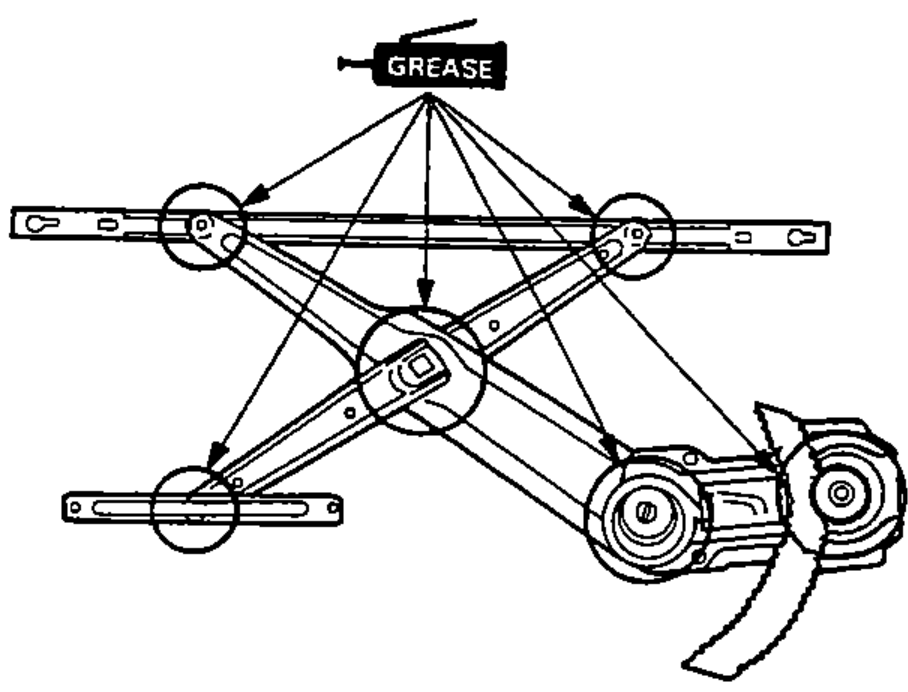

    Grease all the sliding surfaces of the window regulator where shown.
    Window regulator with arrows pointing to all the sliding surfaces that must be greased before assembly.
  2. 2

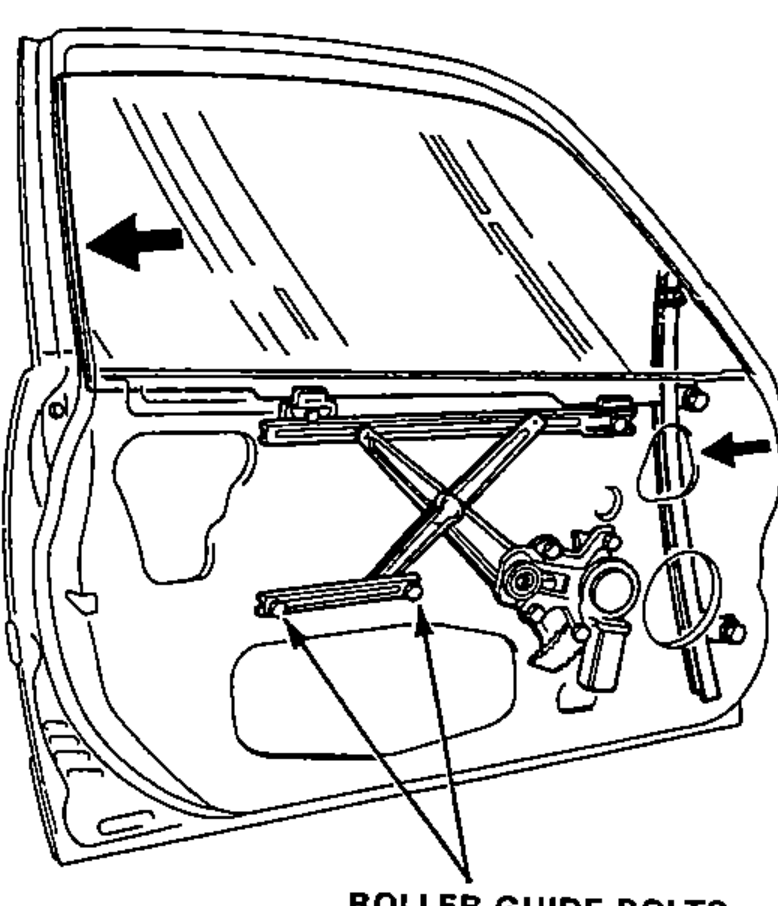

    To adjust window fit in the door, raise the window as far up as possible and hold it against the door sash. Then, tighten the roller guide bolts.
    Door interior view with the window raised against the door sash, showing the roller guide bolts to tighten when adjusting window fit.
  3. 3

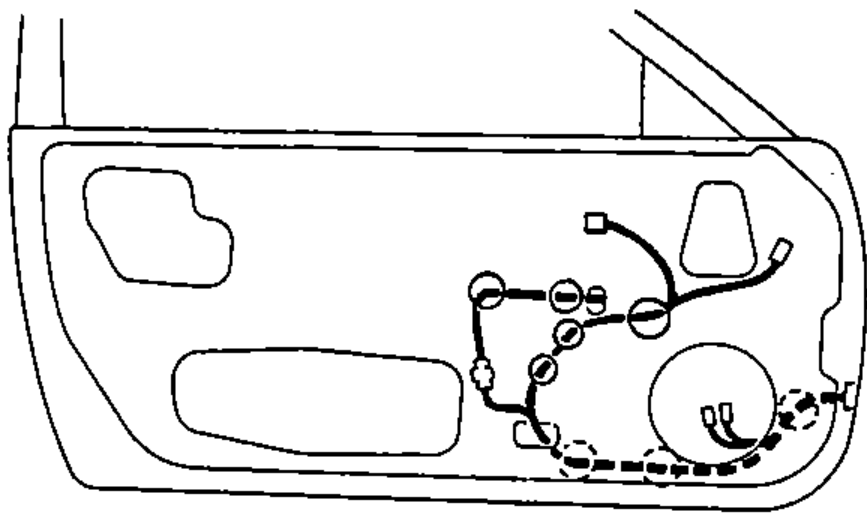

    Fix the wire harness correctly on the door.
    Inner door panel showing the correct routing of the wire harness and the clip locations for fixing it to the door.
  4. 4

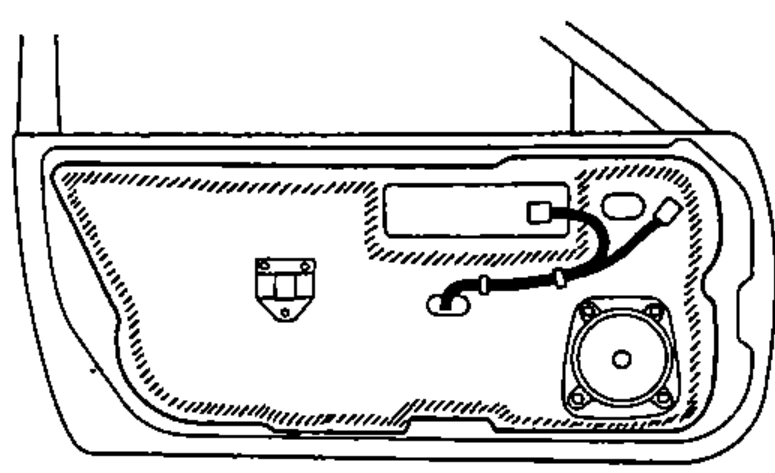

    When reinstalling the plastic cover, apply adhesive along the edge where necessary to maintain a continuous seal and prevent air/water leaks.
    Repair any torn section of the plastic cover.
    Inner door panel showing the plastic cover reinstalled with adhesive applied along its edge to maintain a continuous seal.
  5. 5

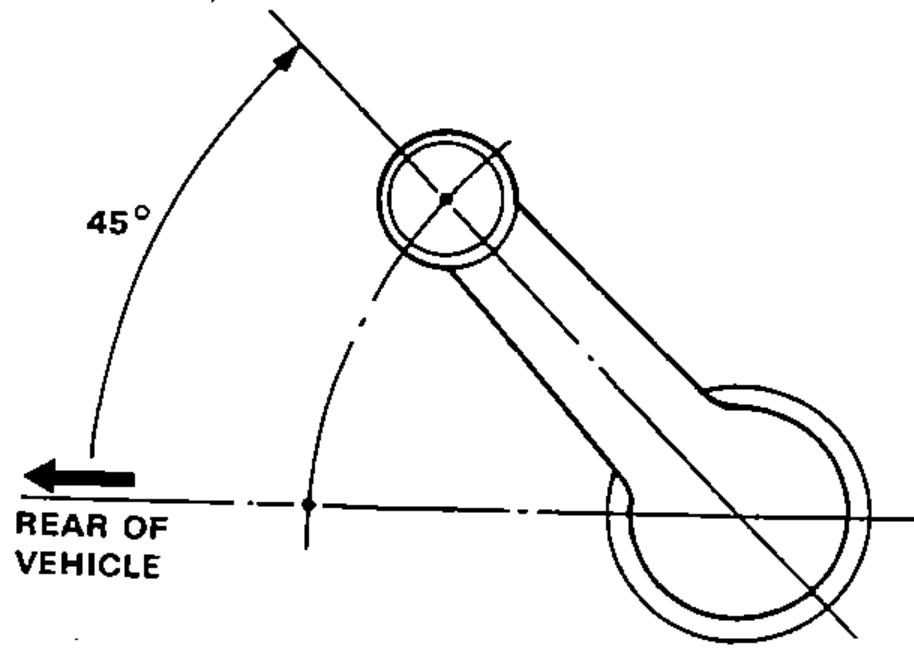

    Install the regulator handle so it points backward, and up at a 45 degree angle with the window closed.
    Regulator handle orientation diagram showing the handle pointing backward and up at a 45 degree angle relative to the rear of the vehicle with the window closed.
