Sunroof - Guide Rail Replacement

14-42prose procedure

Guide Rail Replacement

Roof Guide Rail (on Sunroof panel):

  1. 1
    Remove the sunroof panel (page 14-36).
  2. 2
    Remove the nuts and sub-guide rails.

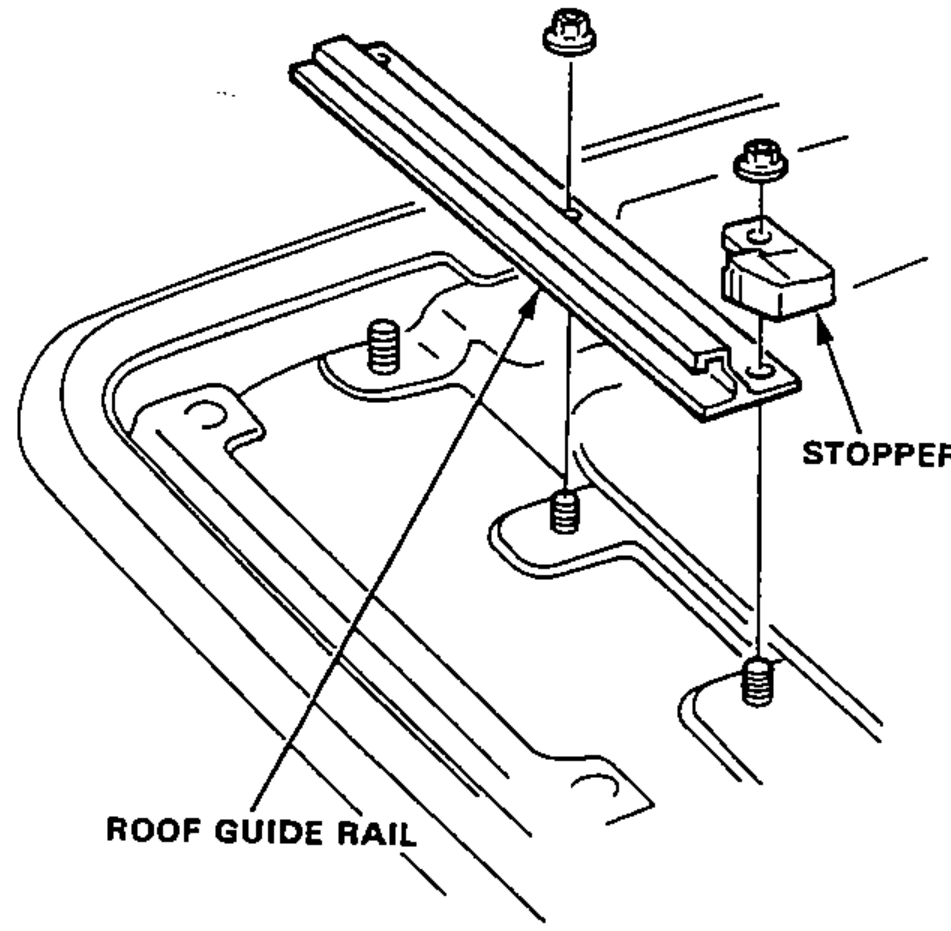

    View of the roof guide rail on the sunroof panel showing the sub-guide rail nuts, roof guide rail and stopper.

Guide Rail:

  1. 1
    Remove the frame (page 14-39).
  2. 2
    Remove 1 bolt and the 3 nuts attaching the guide rail.
  3. 3
    Remove the sub-guide rail.

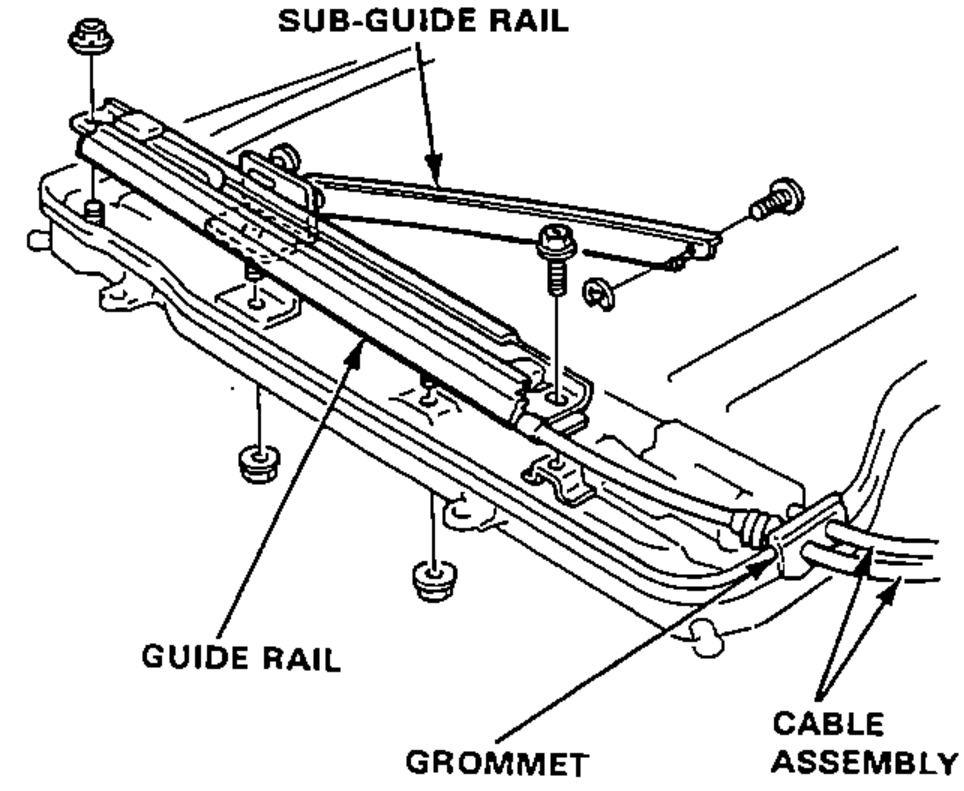

    View of the guide rail assembly on the frame showing the sub-guide rail, guide rail, grommet and cable assembly.
  4. 4
    Pry the guide rail stopper out of the hole of the guide rail; pull out the cable.
    NOTE: Remove the guide rail slowly and carefully; it is cemented to the frame.

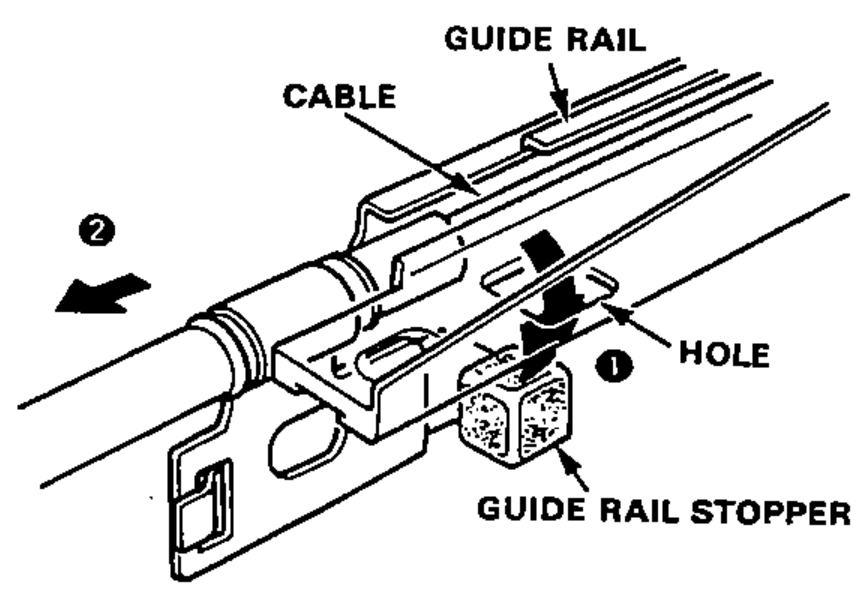

    Detail of the guide rail end showing the cable, guide rail, hole and guide rail stopper, with arrows indicating how to pry the stopper out of the hole and pull out the cable.
  5. 5
    Install the guide rail in the reverse order of removal.

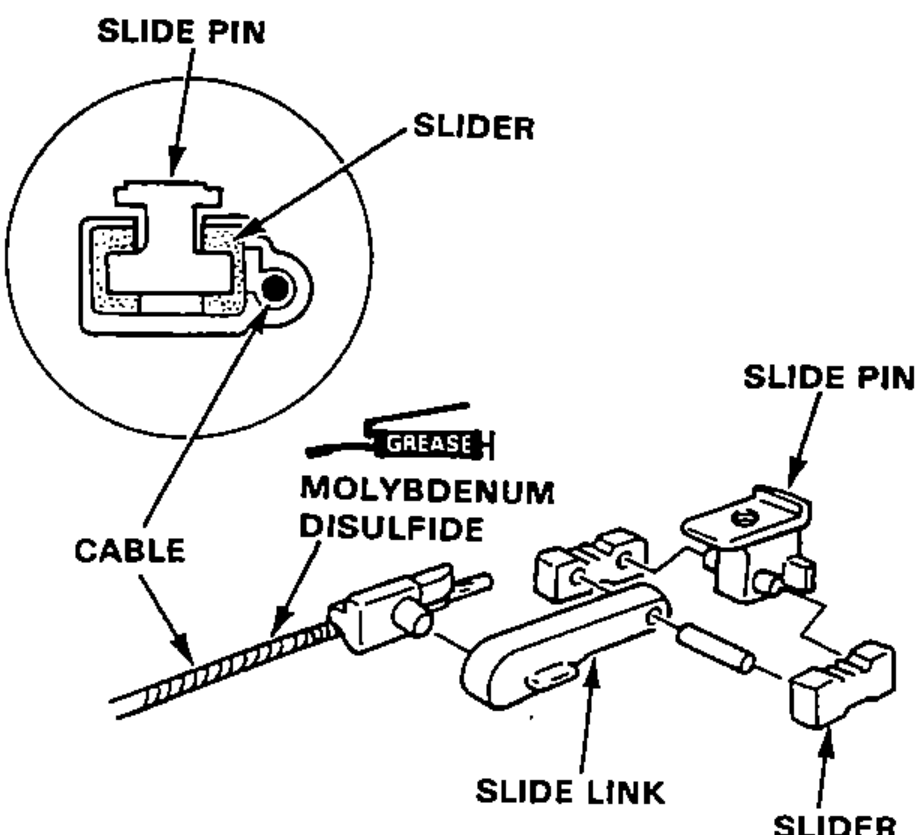

    Reassembly detail of the cable end showing the slide pin, slider and slide link, with an inset cross-section; molybdenum disulfide grease is applied to the slide pin.
