Honda CRX silhouetteCRX

Quarter Glass - Removal

14-28prose procedure

Removal

  1. 1
    Remove the quarter window trim.

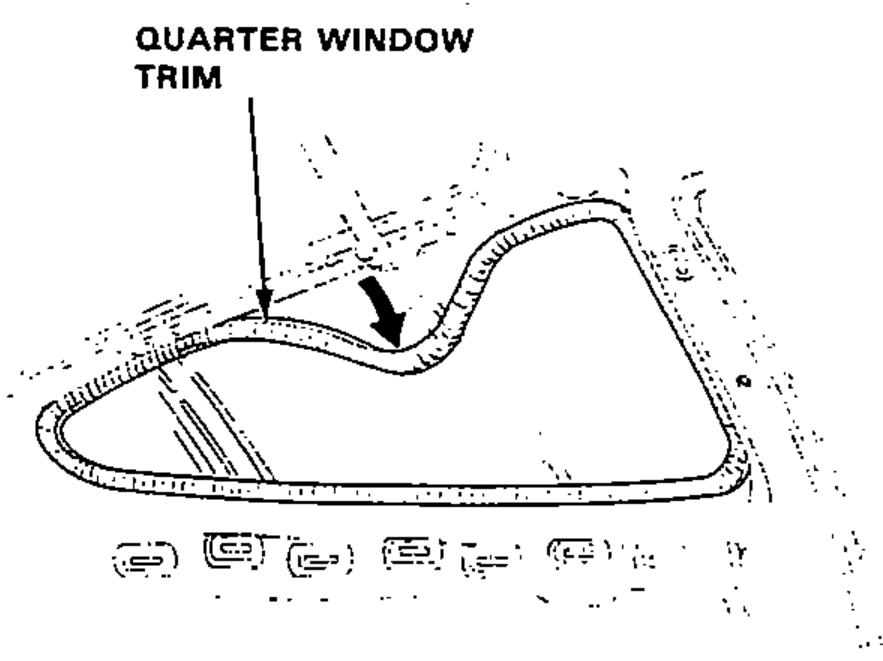

    Quarter window opening from inside the car showing the quarter window trim being removed.
  2. 2
    From inside the car, use a knife to cut through the glass adhesive all the way around.

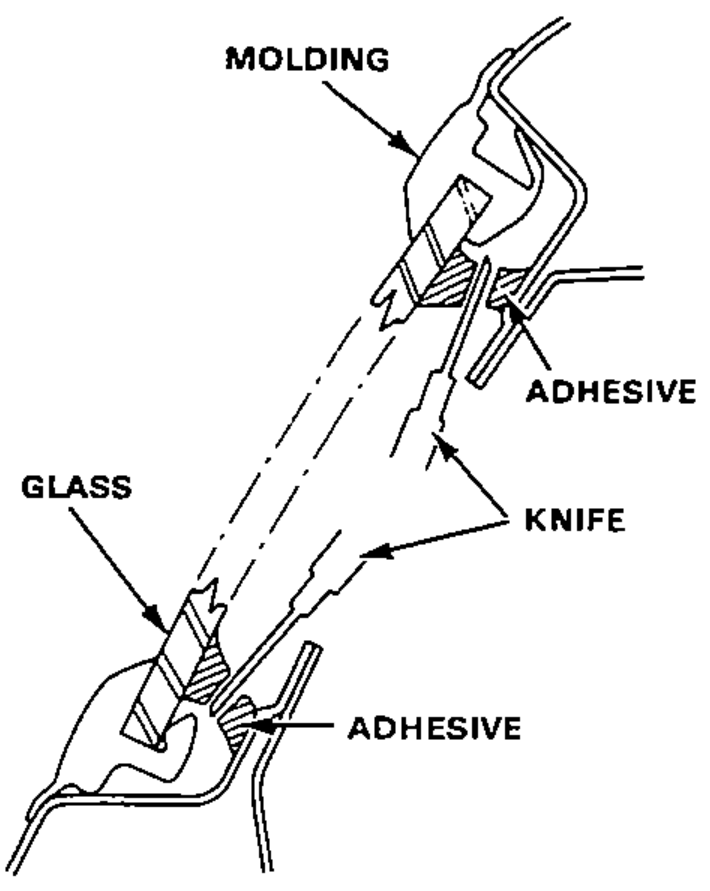

    Cross-section of the quarter glass edge showing a knife cutting through the adhesive between the glass, molding, and body.
  3. 3
    As an assembly, pry the glass and upper and front moldings away from the car at the clip points shown.

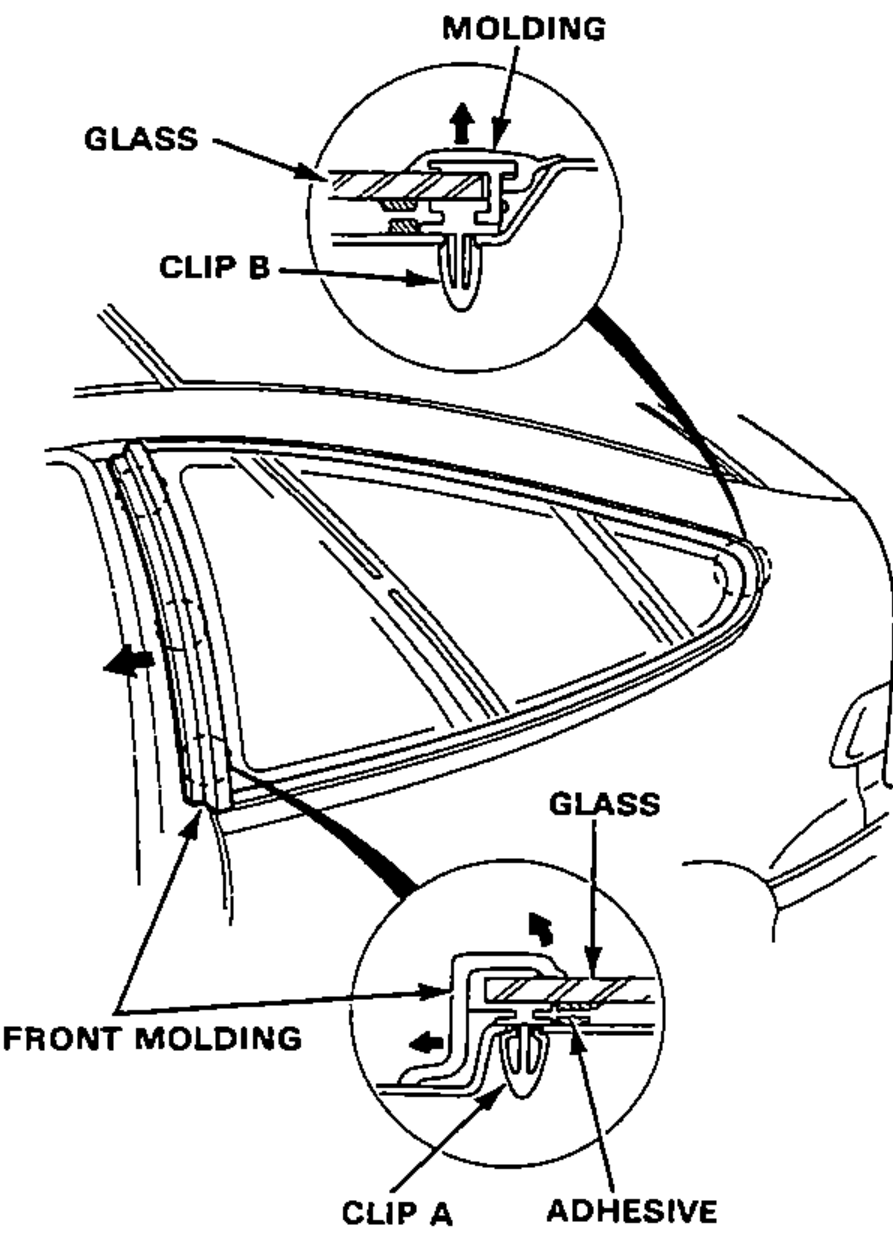

    Rear quarter of the car showing the glass and upper/front moldings being pried away at the clip points; enlarged circles show clip B (upper) and clip A (front) cross-sections with the glass, molding, and adhesive.
  4. 4
    Remove the quarter glass molding if the glass is to be reused.
