Honda CRX silhouetteCRX

Lower Hatch Glass - Installation (cont'd)

14-27prose procedure
Continued from 14-26
  1. 13
    Use suction cups to hold the glass, then set it on the adhesive. Lightly push on the glass until its edges are fully seated on the adhesive all the way around.
    Do not open or close the tailgate until the adhesive is dry.

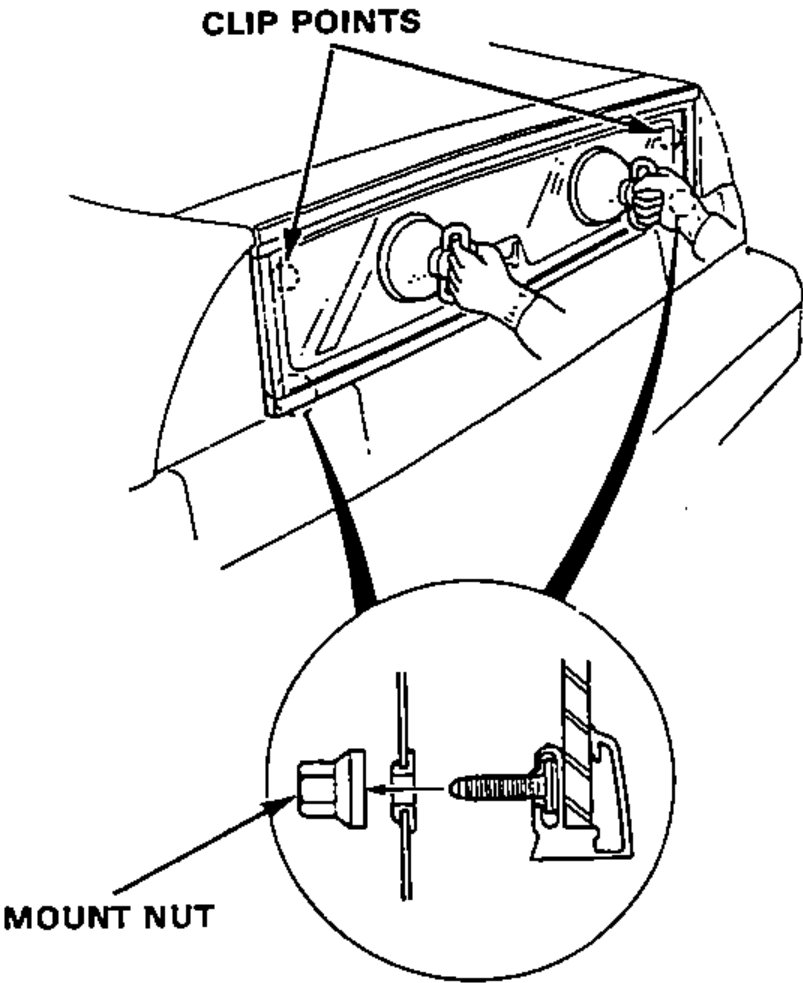

    Hands using suction cups to set the lower hatch glass onto the adhesive; clip points are indicated at the corners and an enlarged circle shows a mount nut on a stud at the molding.
  2. 14
    Scrape or wipe the excess adhesive off with a putty knife or gauze.
    Use a shop towel dampened with alcohol or unleaded gasoline to remove adhesive from a painted surface or glass.
  3. 15
    After the adhesive is dry, spray water over the glass and check for leaks. Mark leaking areas and let the glass dry, then seal with sealant.
    Let the car stand for at least 4 hours after glass installation. If the car has to be used within the first 4 hours, it must be driven slowly.
  4. 16
    Reinstall all remaining removed parts.
