Disassembly/Inspection
11-13parts diagram- 1Remove the upper column holder, bending plate and bending plate spring.
- 2Remove the tilt lock plate by removing the tilt adjusting bolt.
- 3Remove the tilt lever, column hanger spring and bending plate base by removing the tilt lock bolt.
- 4Position the ignition switch in "I".
- 5Remove the snap ring, then remove the steering shaft from the bottom of the column.
- 6Remove the retaining collar.

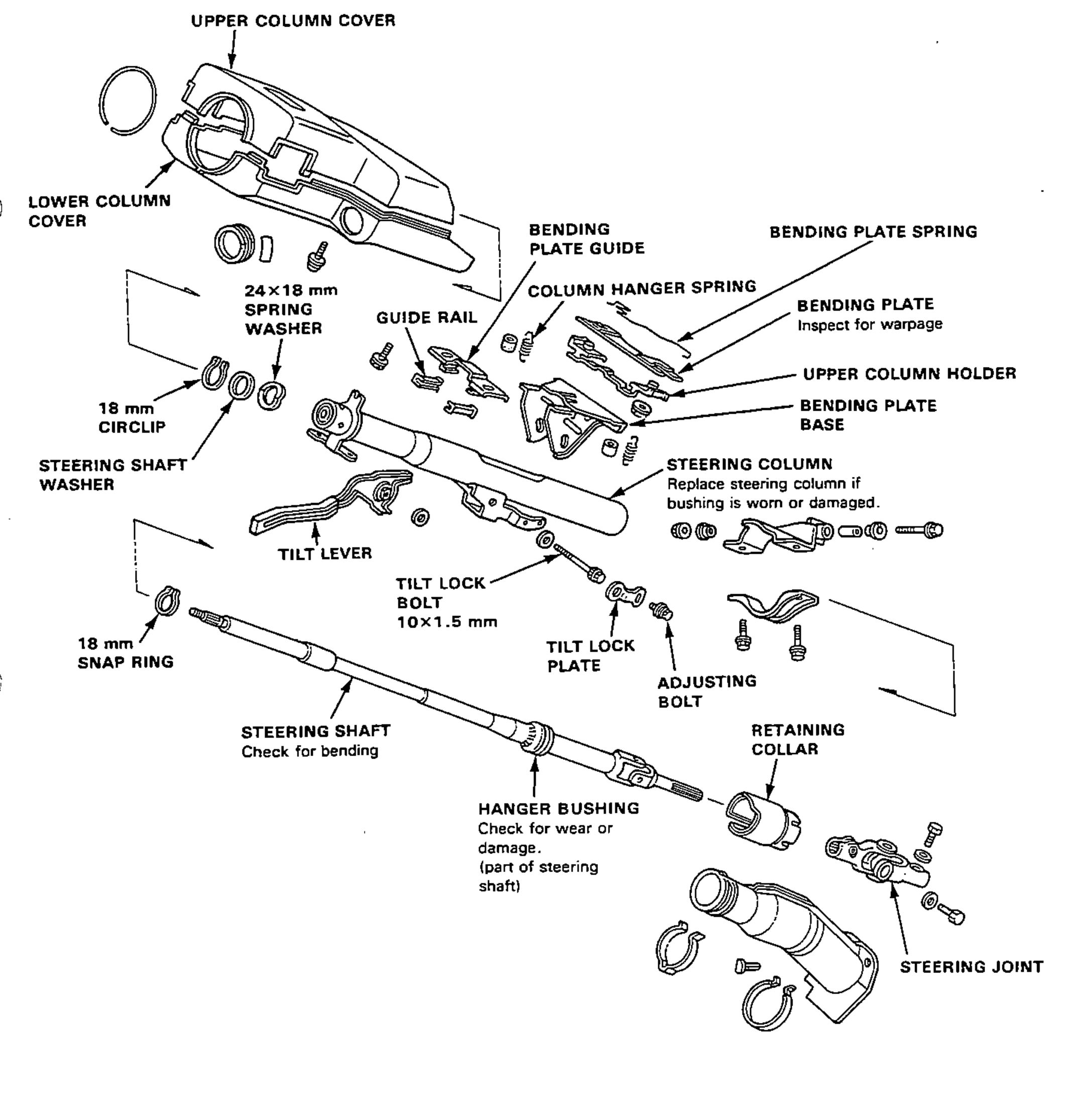

Parts Diagram
Diagram image not available
