Steering Gearbox - Steering Rack Removal (contd)

11-54prose procedure
Continued from 11-53

Steering Rack Removal (contd)

  1. 8
    Remove the shift extension from the transmission case.

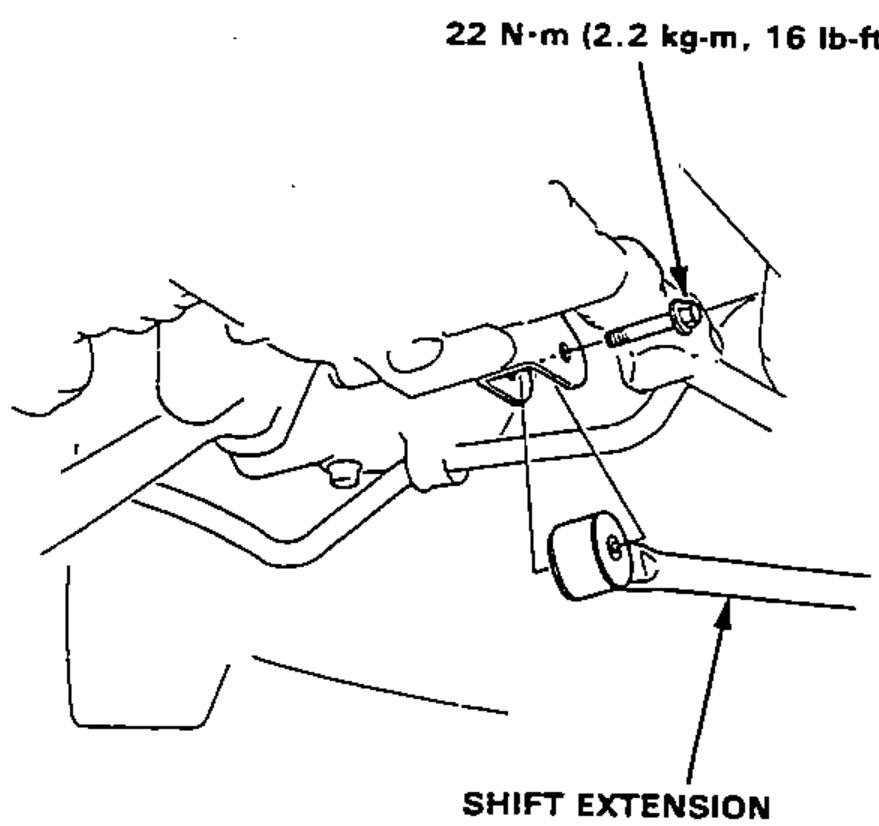

    Illustration of the shift extension at the transmission case with mounting bolt tightening torque called out.
  2. 9
    Slide the boot at the connecting position of the gear shift rod.
  3. 10
    Drive out the spring pin with a punch, then disconnect the shift rod.
    NOTE: On reassembly, install the pin retainer back into place after driving in the spring pin as shown.

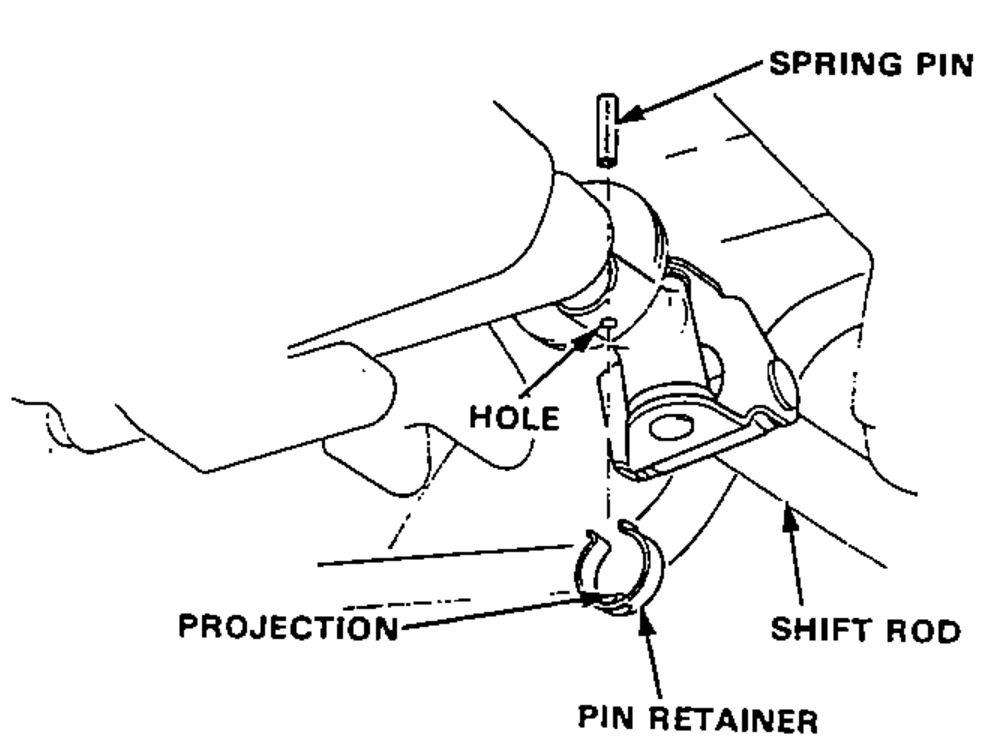

    Detail of the gear shift rod connection showing the spring pin, pin retainer, hole and projection alignment for reassembly.
  4. 11
    Remove the self-locking nuts connecting the exhaust header pipe to exhaust pipe B, then separate exhaust pipe B from the header pipe.
    CAUTION: Replace the exhaust gasket and self-locking nuts when you reinstall the pipe.

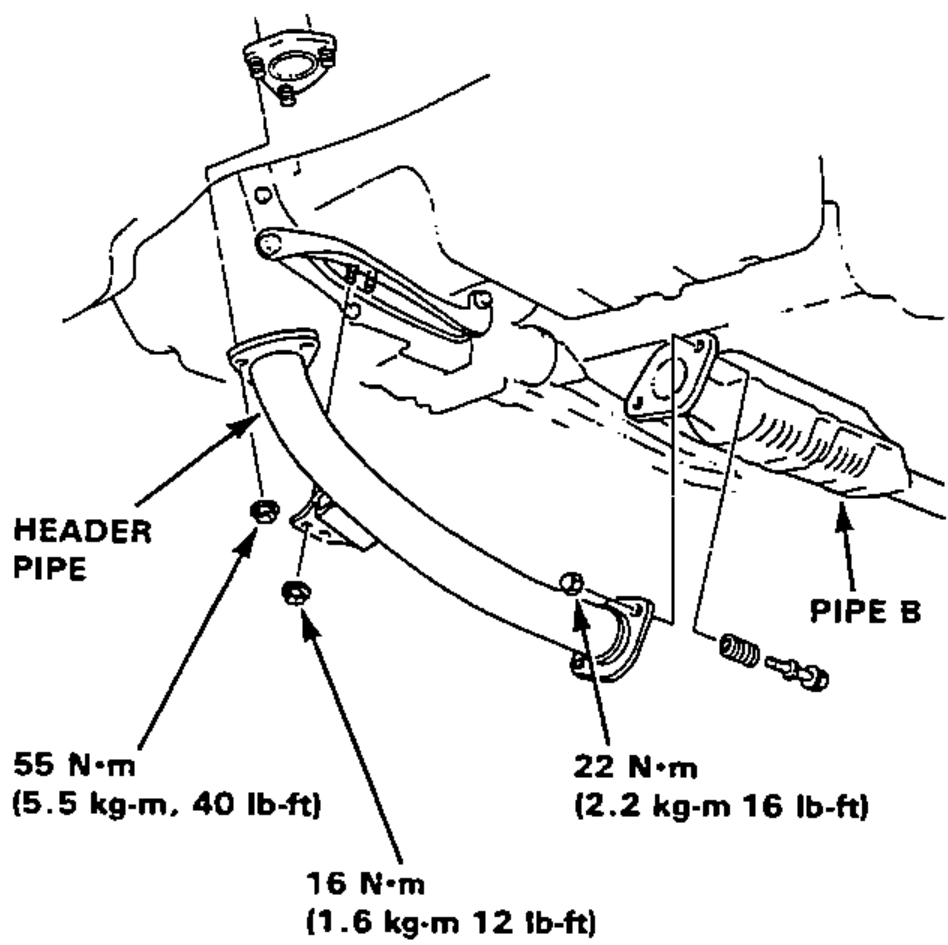

    View of the exhaust header pipe and exhaust pipe B connection, showing the self-locking nut joint and multiple tightening torque callouts.
  5. 12
    Remove the header pipe.
  6. 13
    Remove the gearbox shield.

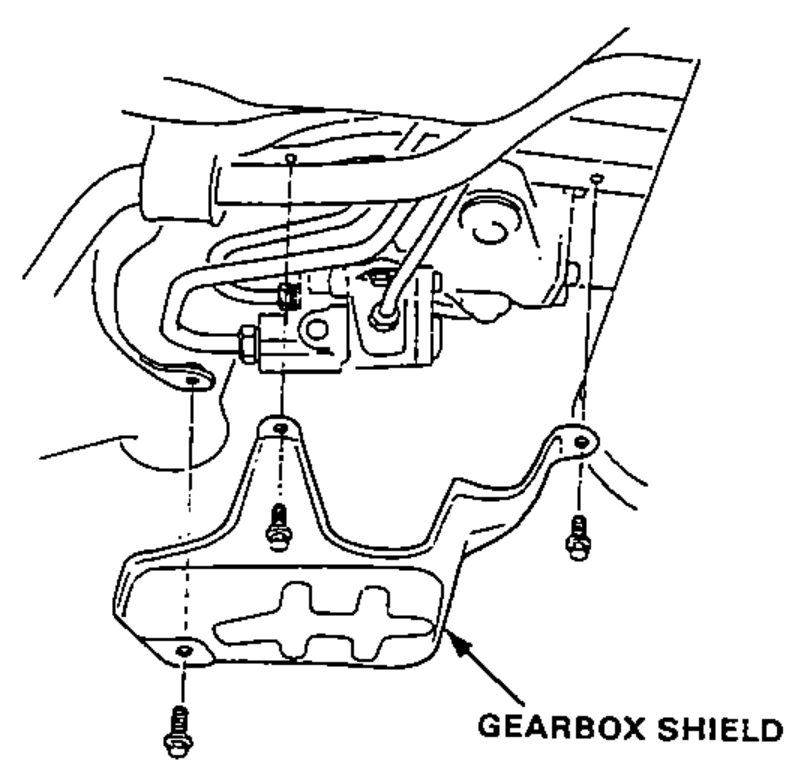

    Underside view showing the gearbox shield and its mounting bolts.
