Housing Disassembly

11-43prose procedure
  1. 1
    Remove the pump from car (page 11-39).
  2. 2
    Remove the pulley (page 11-40) and pump front cover.

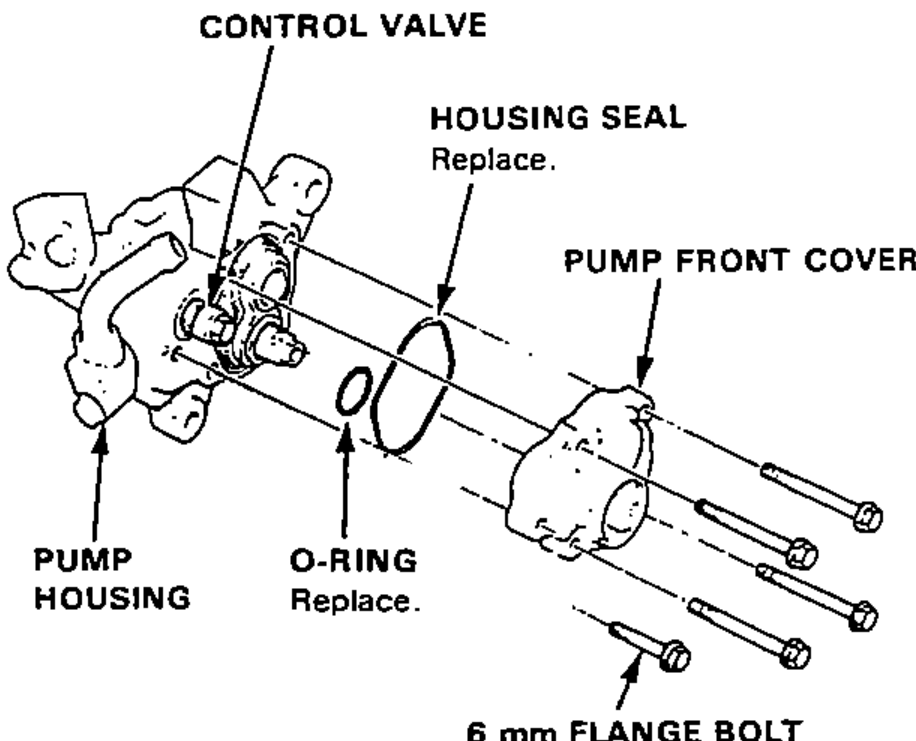

    Exploded view of the power-steering pump front assembly showing the control valve, housing seal, O-ring, pump front cover and mounting bolts separating from the pump housing.
  3. 3
    Remove the housing seal from the pump housing.
  4. 4
    Remove the dowel pins, plunger seal, control valve O-ring from the pump housing.
  5. 5
    Separate the port housing from the pump housing.
  6. 6
    Remove the dowel pins from the pump housing and remove the housing seal and O-ring from the port housing.

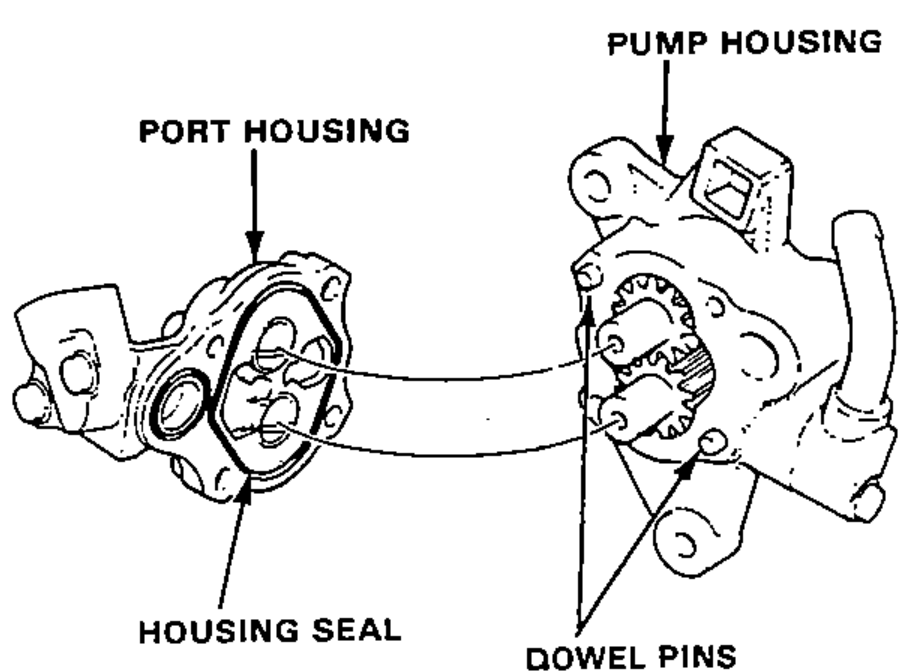

    Exploded view showing the port housing separating from the pump housing, with the housing seal and dowel pins called out.
  7. 7
    Remove the pump drive and driven gears from the pump housing.

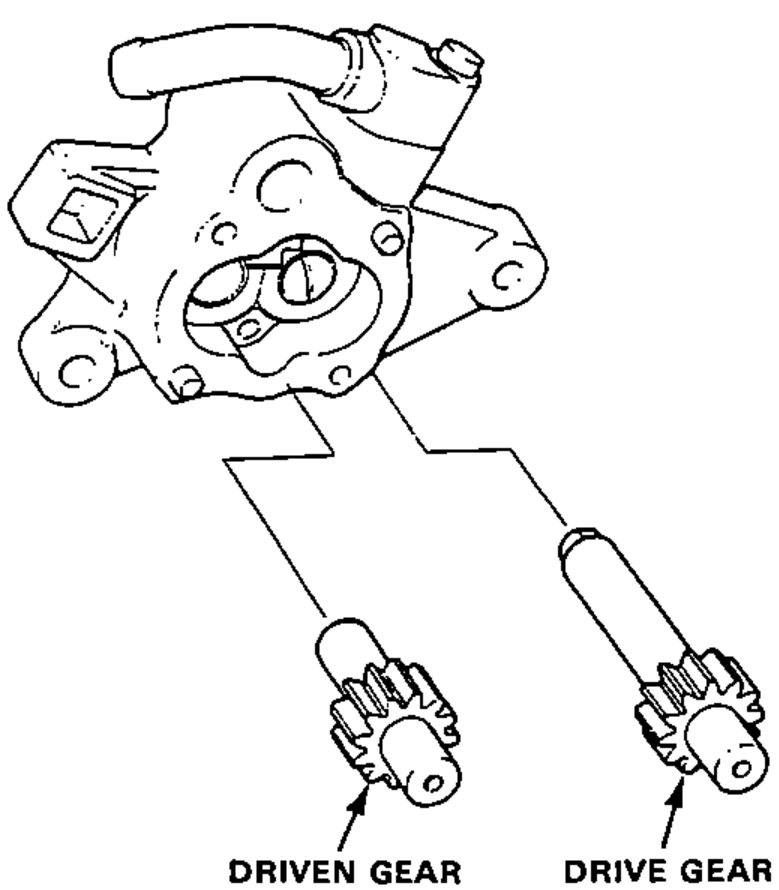

    Illustration of the pump housing with the drive and driven gears being removed from it.
  8. 8
    Remove the plungers from the pump housing.
  9. 9
    Pry the oil seal out of the pump front cover.

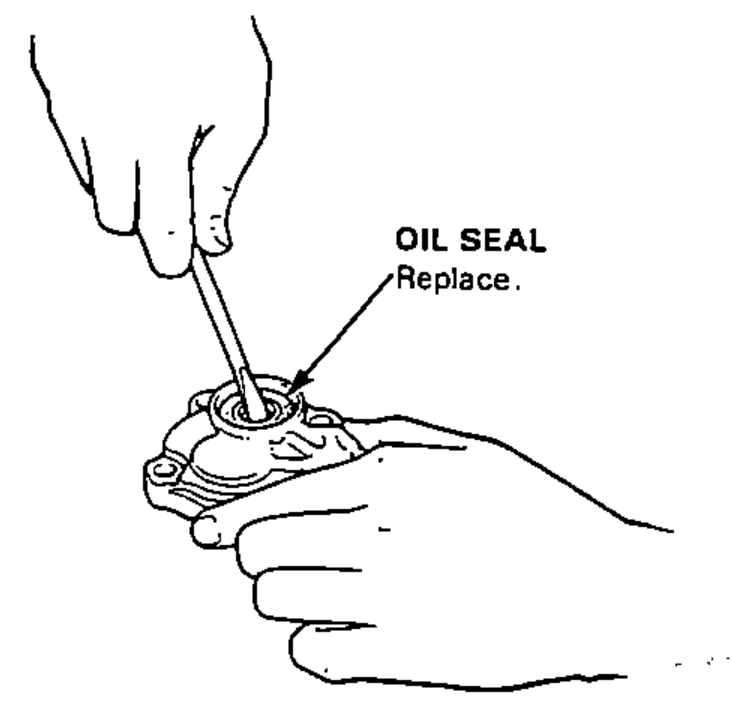

    Illustration of prying the oil seal out of the pump front cover by hand with a tool.
