Steering Gearbox - Valve Body Unit Overhaul (cont'd)

11-52prose procedure
Continued from 11-51

Valve Body Unit Overhaul (cont'd)

  1. 4
    Install and tighten the 6 mm flange bolts in the control valve body unit.
    CAUTION: Make sure the mating surface of the valve body and cap are flush at the upper side.

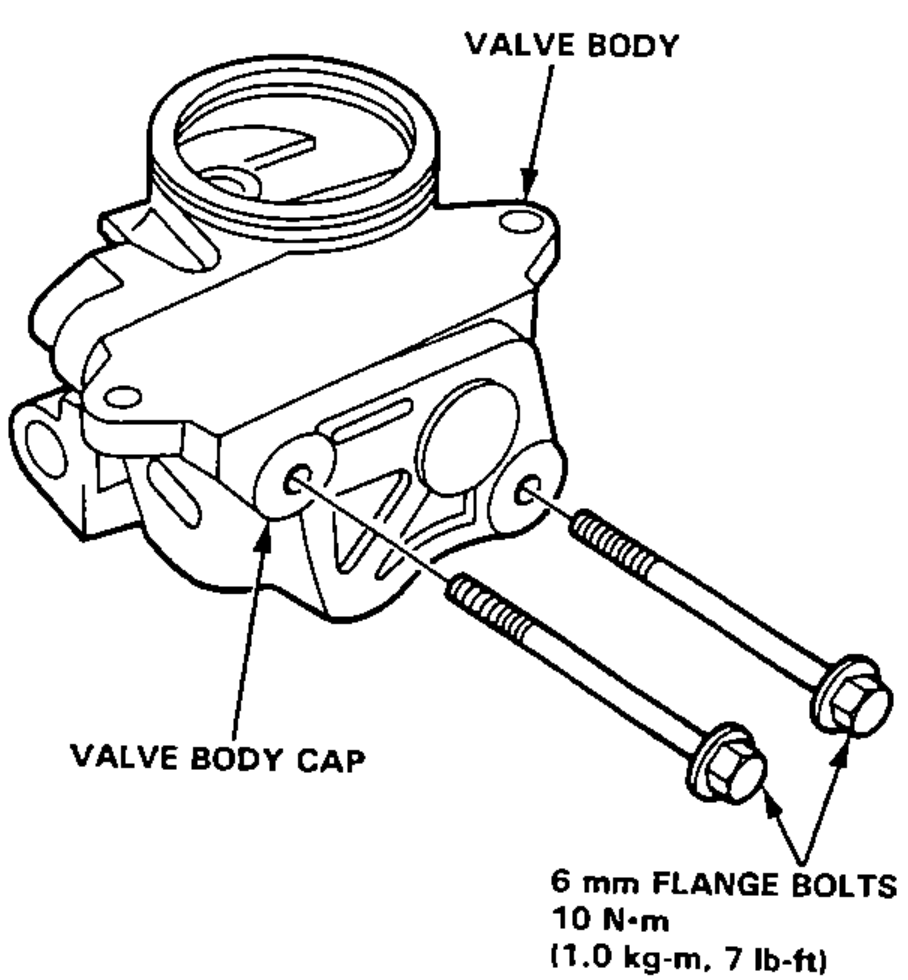

    Illustration of the valve body with the valve body cap and 6 mm flange bolts, showing bolt tightening torque.
  2. 5
    Make sure the control valve moves smoothly, and returns to neutral position.

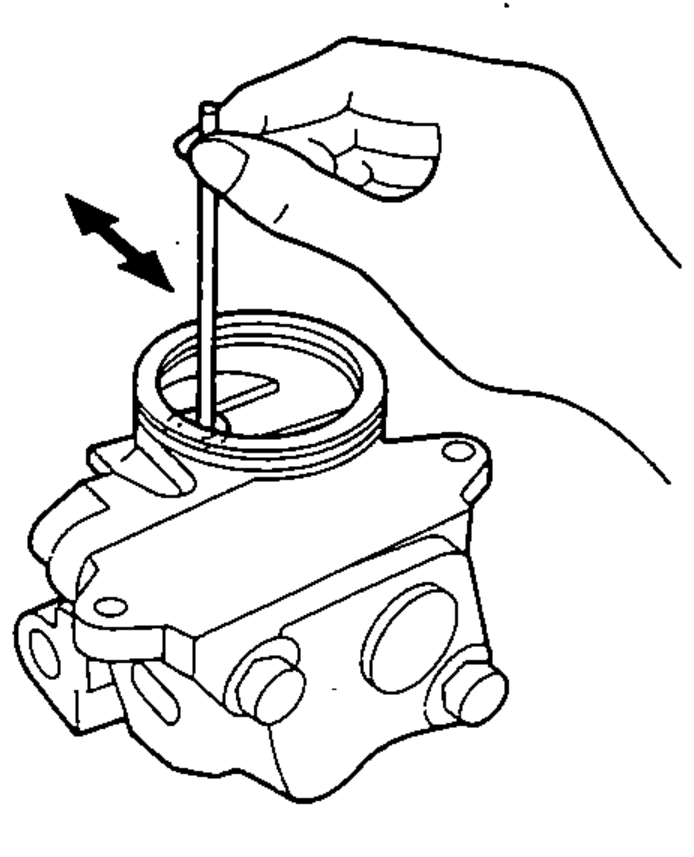

    Illustration of checking that the control valve moves smoothly by hand and returns to neutral position.

Installation:

  1. 6
    Coat the 9.8×1.9 mm O-rings with grease, and install them together with the orifices.

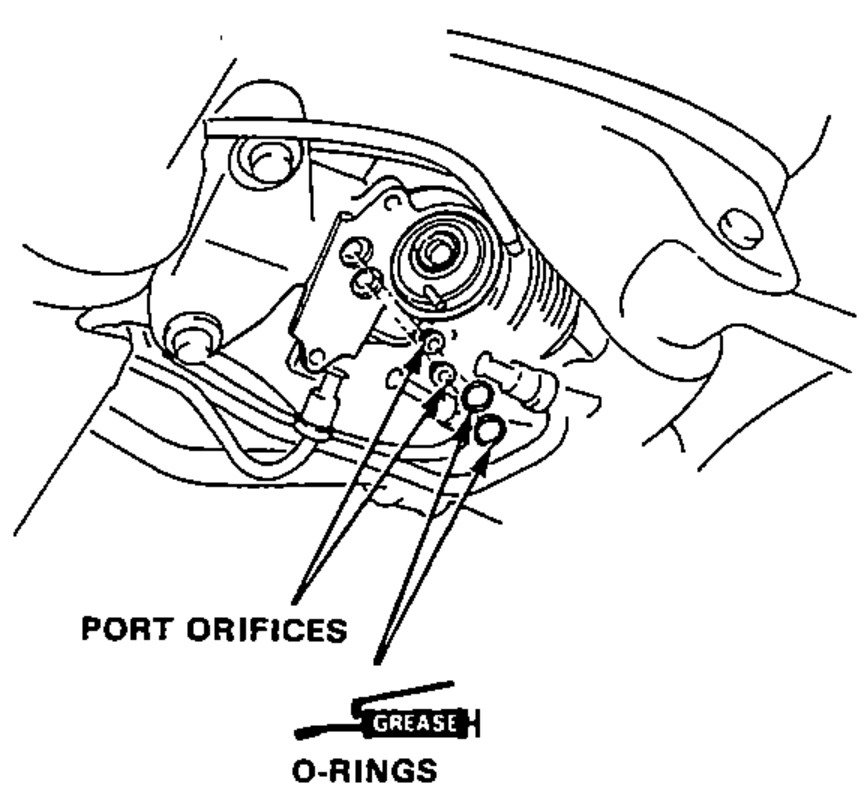

    View of the gear housing showing the port orifices and the greased O-rings being installed together with the orifices.
  2. 7
    Install the O-ring to the valve body unit, then install the valve body unit on the gear housing with the two 6 mm bolt.
    CAUTION: When installing, be careful not to hit the pinion holder pin.
    CAUTION: Make sure the O-rings are in place and not pinched.

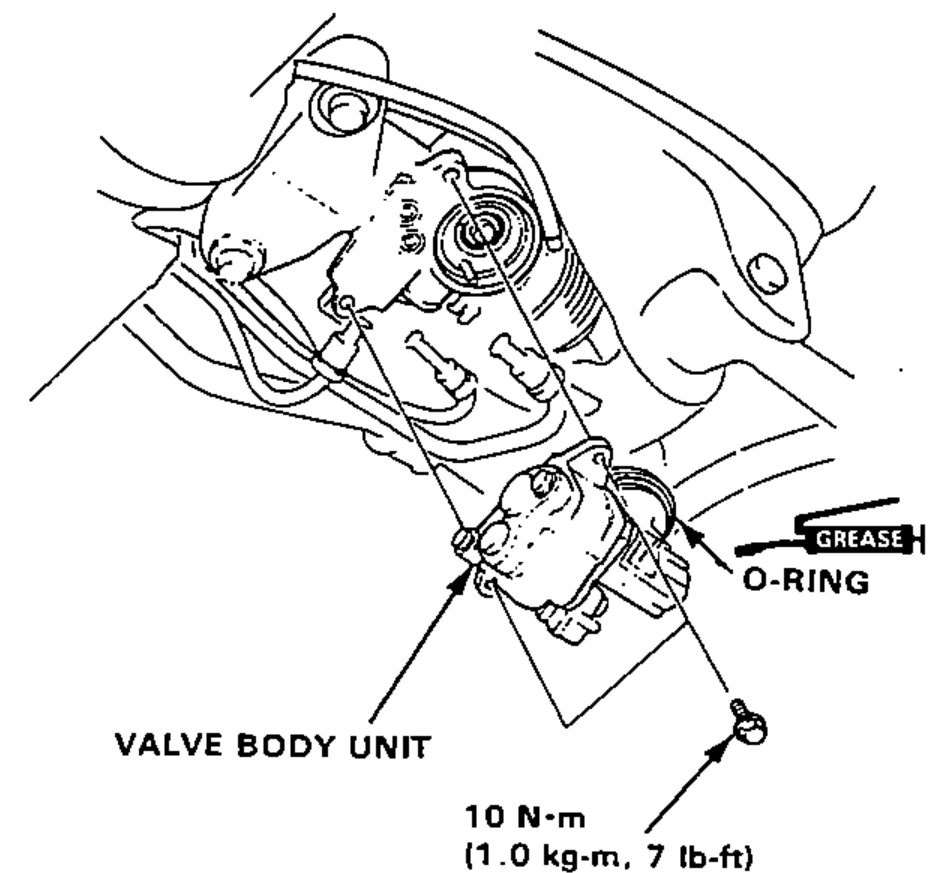

    Illustration of installing the valve body unit on the gear housing with the greased O-ring and two 6 mm bolts, showing tightening torque.
