Steering Pump - Housing Reassembly

11-44prose procedure

Housing Reassembly

  1. 1
    Coat the outer surfaces of the plungers with power steering fluid, then install them in the pump housing. Make sure the plunger holes are positioned as shown.

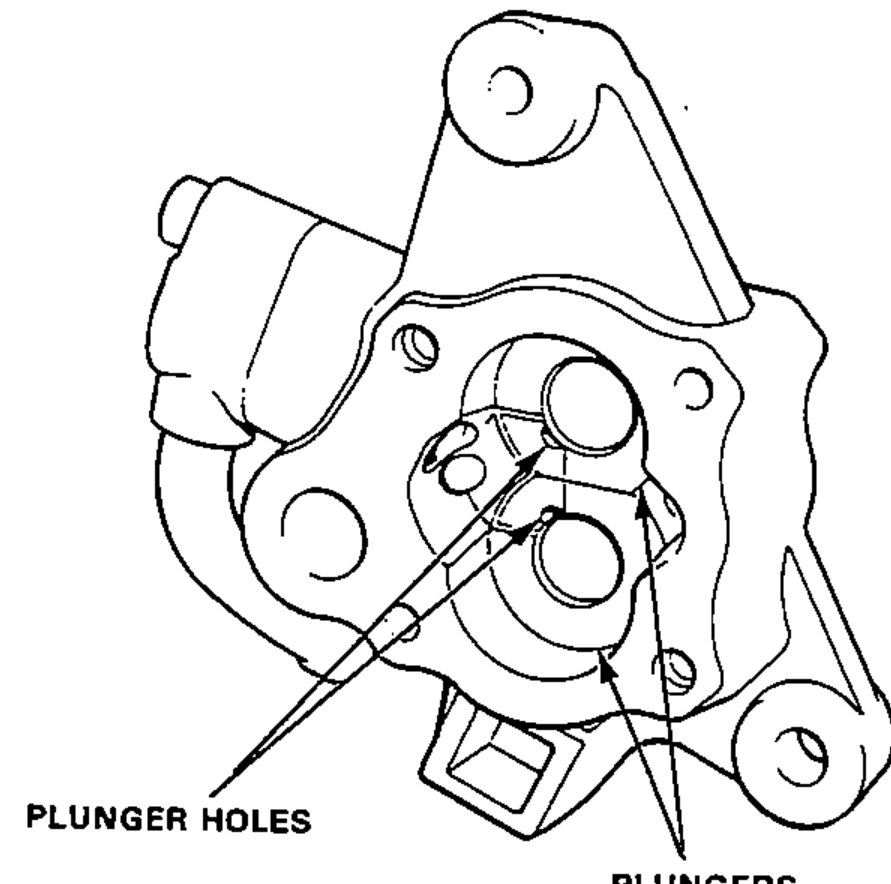

    Face view of the pump housing showing the plunger holes with the plungers installed and correctly positioned.
  2. 2
    Coat the inside of the plungers with power steering fluid.
  3. 3
    Install the pump drive and driven gears in the pump housing.

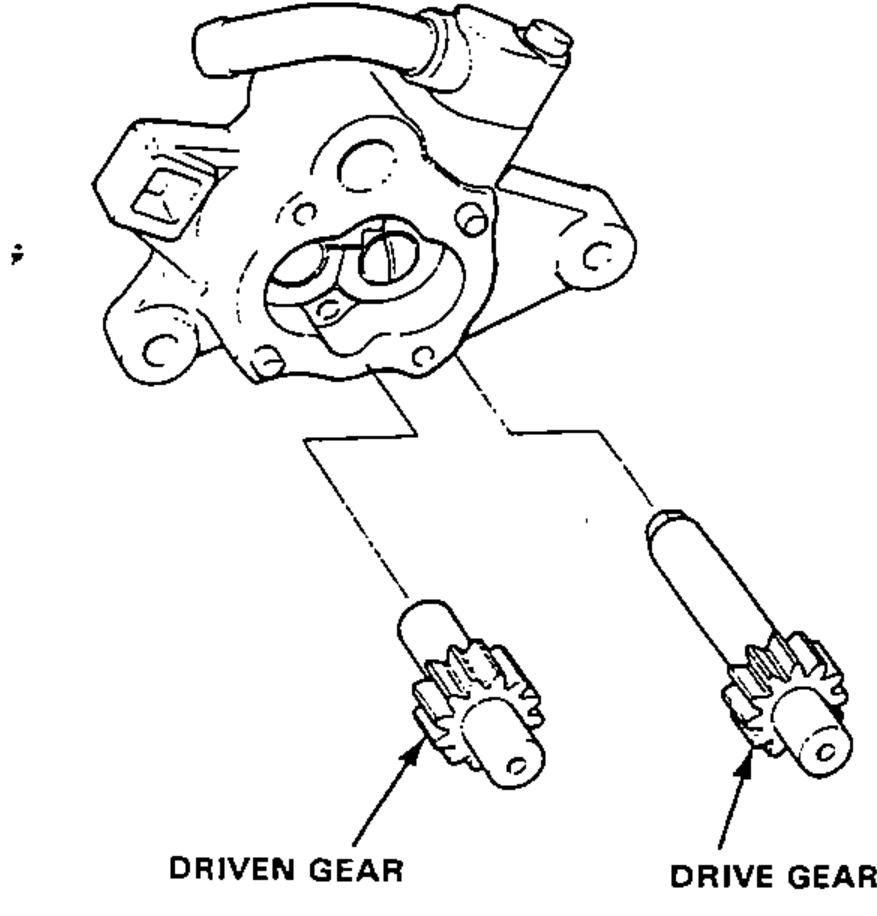

    Illustration of installing the pump drive and driven gears into the pump housing.
  4. 4
    Coat the bushings on the port housing with power steering fluid.
  5. 5
    Install the dowel pins in the pump housing, then install the new housing seal and O-ring in the port housing.
    NOTE: Coat the new housing seal with grease.
  6. 6
    Install the port housing on the pump housing.

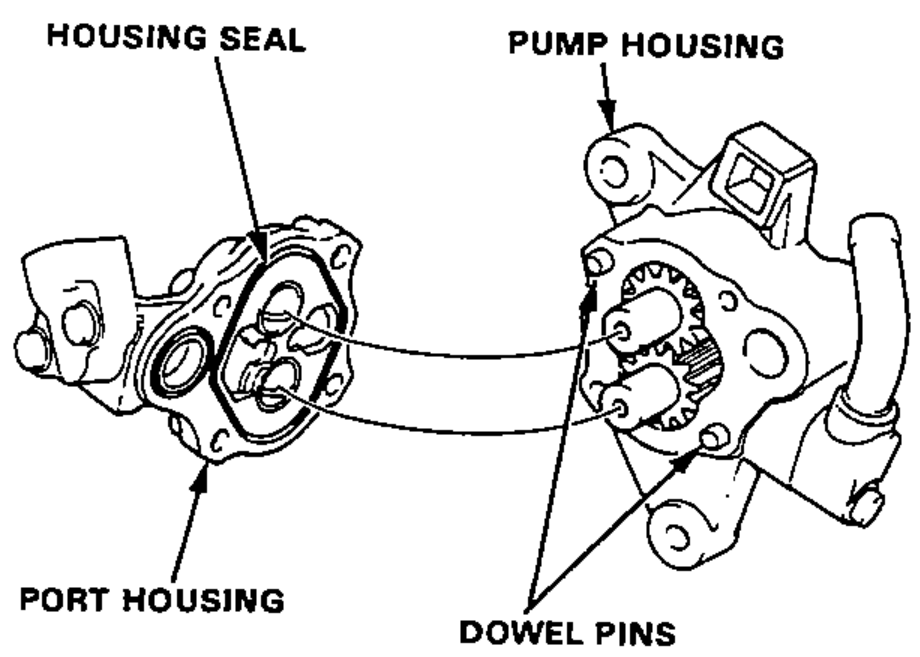

    Illustration of installing the port housing onto the pump housing, with the housing seal and dowel pins called out.
  7. 7
    Grease the new plunger seal and install it over the plungers.
  8. 8
    Install the dowel pins.
  9. 9
    Fill the groove of the pump housing with grease and install the new housing seal in the pump housing.
  10. 11
    Grease the new O-ring and install it in the pump housing.
  11. 12
    Install the control valve.
  12. 13
    Install the pump front cover.
    NOTE: Tighten the front cover bolts in the order shown.

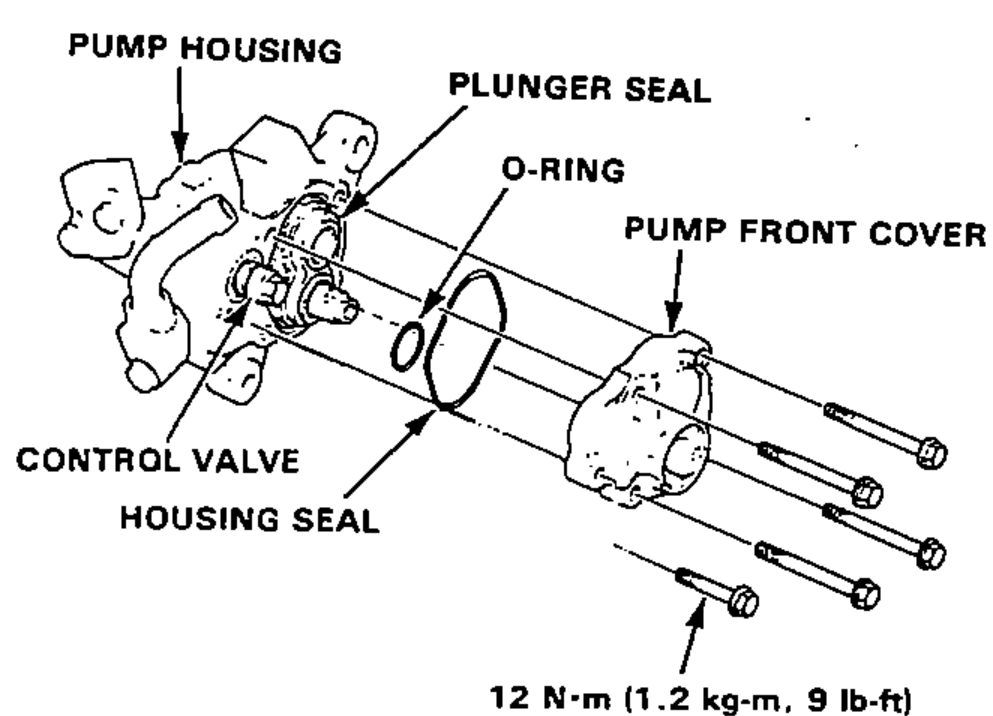

    Exploded view of the pump front cover assembly showing the plunger seal, O-ring, control valve and housing seal, with front-cover bolt tightening torque.
