Column - Reassembly (cont'd)

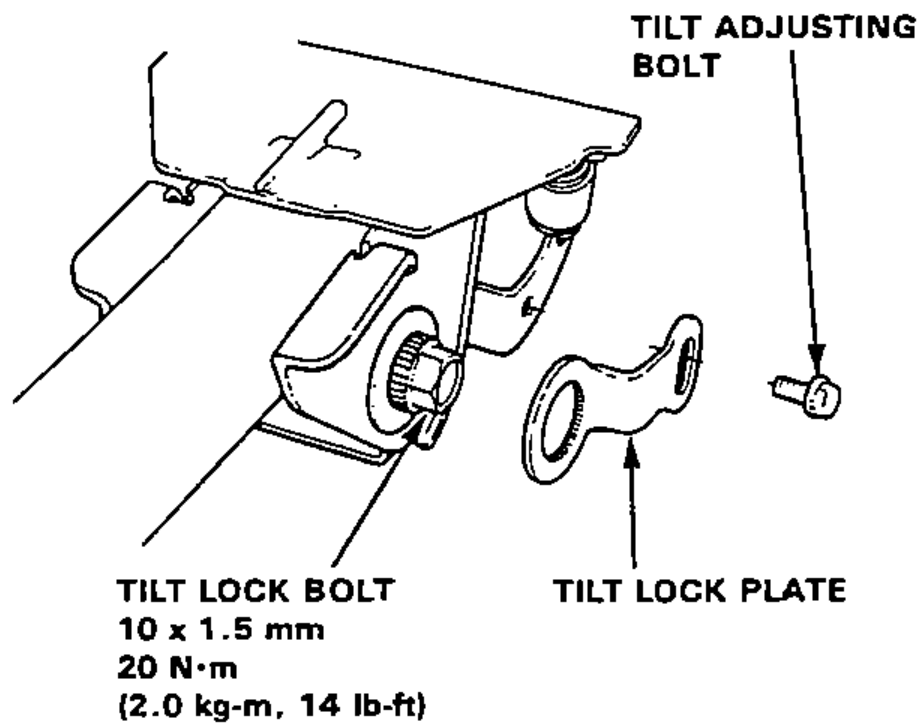

11-33prose procedure- 8Tighten the tilt lock bolt to 20 N·m (2.0 kg-m, 14 lb-ft), then position the tilt lock plate on the splined portion of tilt lock bolt and loosely attach with the tilt adjusting bolt.

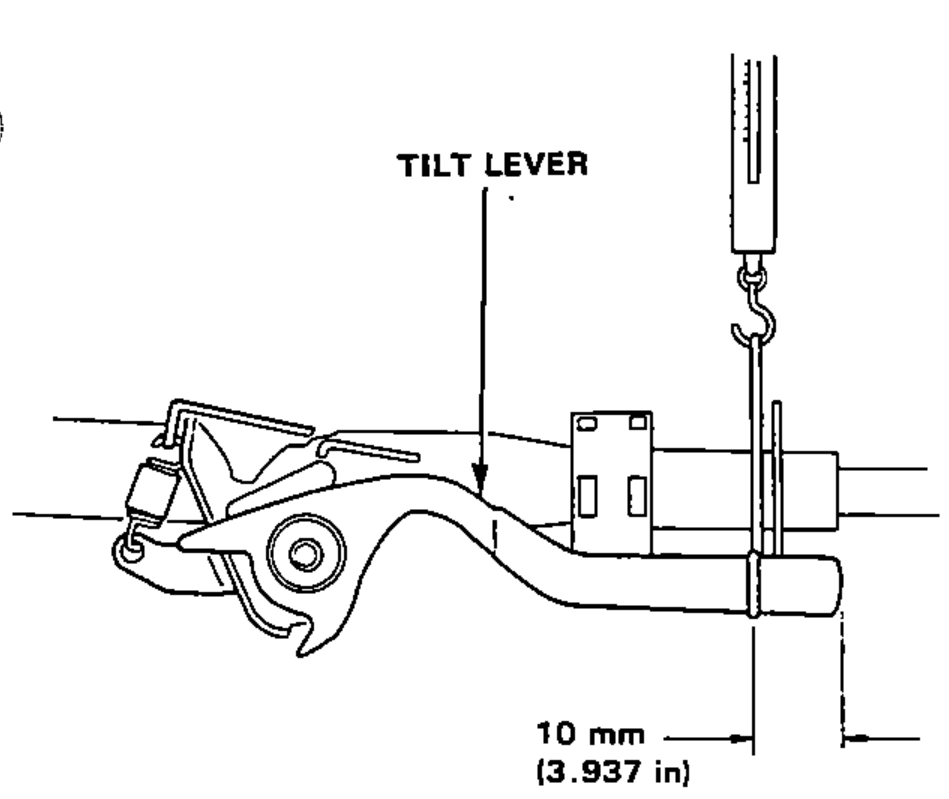

- 9Attach a spring scale 10 mm (3.937 in) from the end of the knob. Measure the force required to move the lever. Preload: 80 N (8.0 kg, 18 lbs)
- 10If the force measured is not within the specification, remove the tilt lock plate then reset it in the position where the correct force can be obtained.

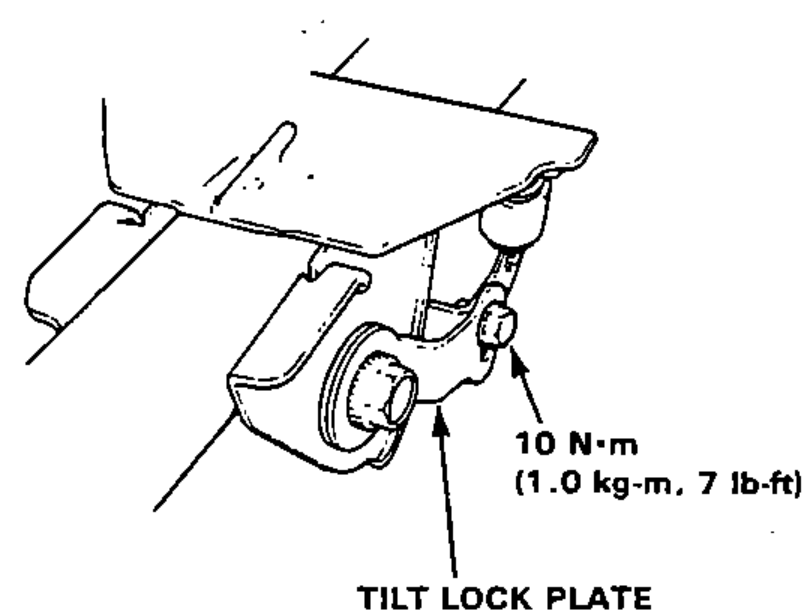

- 11Tighten the tilt adjusting bolt.

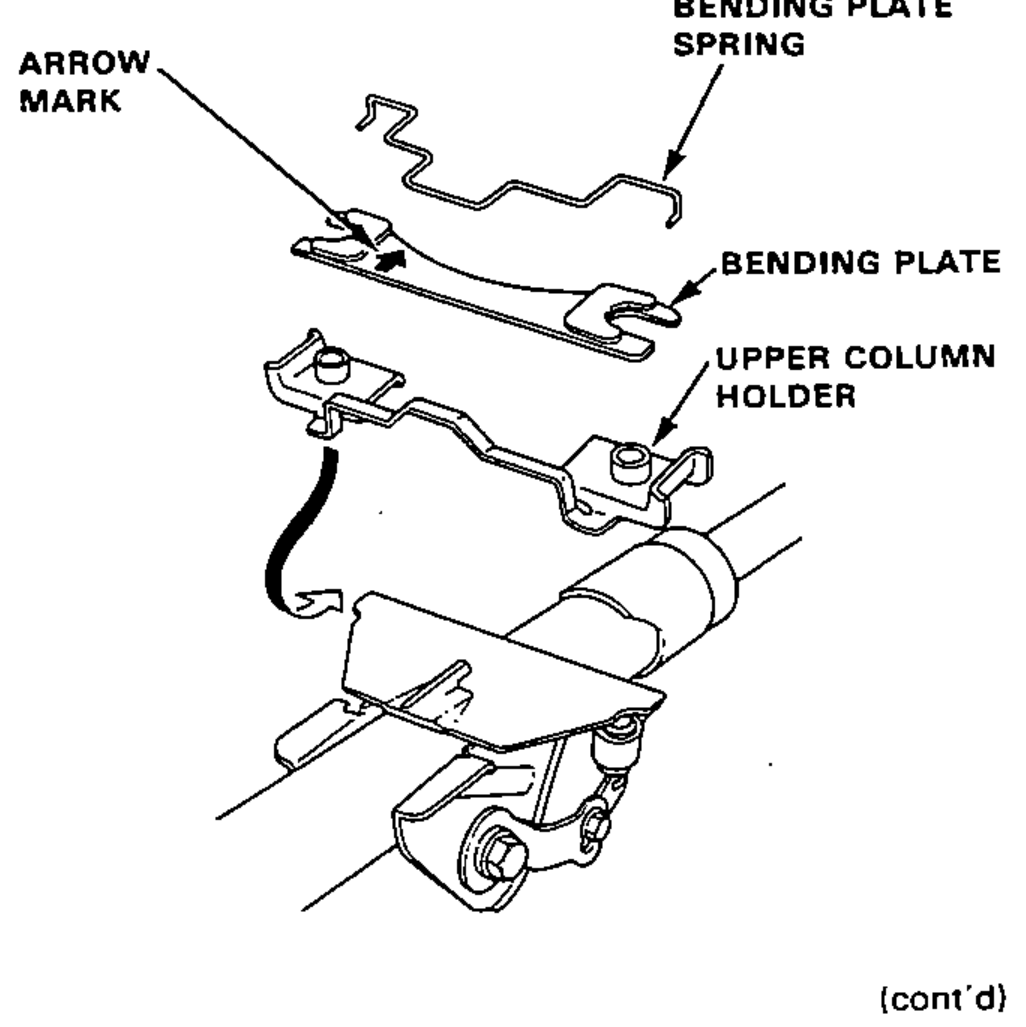

- 12Install the upper column holder and bending plate with the bending plate spring on the bending plate base.Install the bending plate with arrow mark facing the steering gearbox.
