Honda CRX silhouetteCRX

Steering Rack (Seal and Bushing Installation)

11-63prose procedure
Continued from 11-62
  1. 34

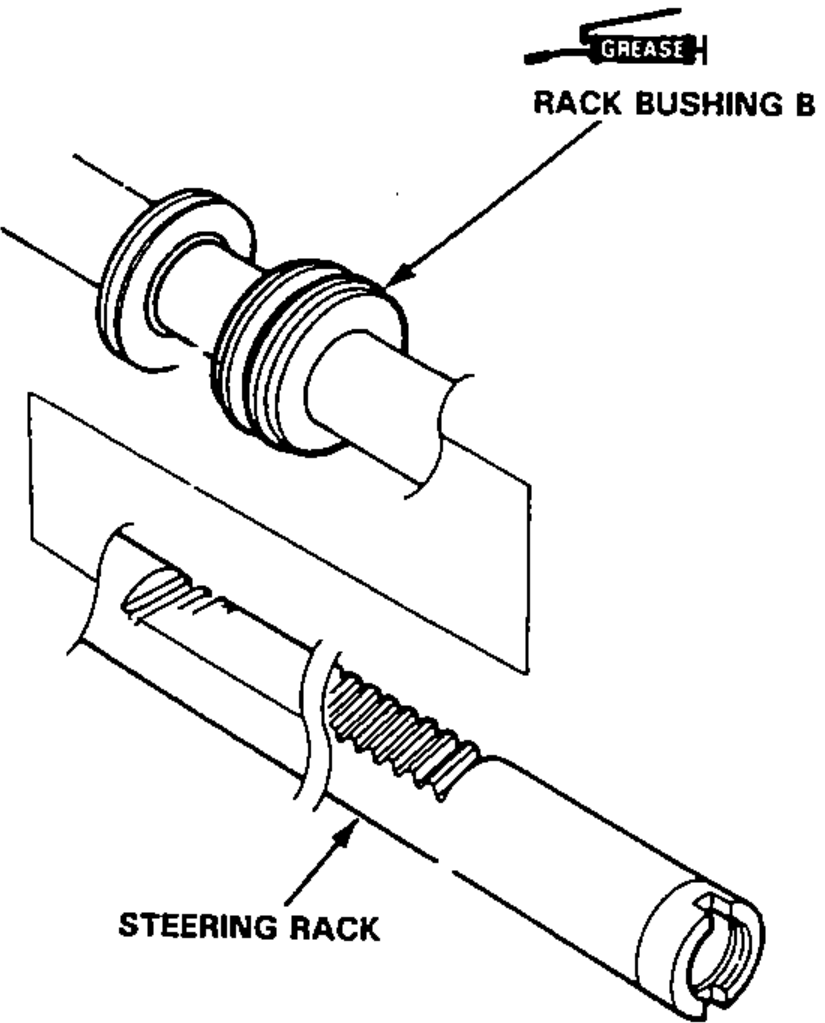

    Grease the sliding surface of the steering rack bushing B, and install the bushing on the steering rack with the groove of the bushing facing the steering rack piston.
    Illustration of rack bushing B being greased and installed on the steering rack, with the bushing groove facing the steering rack piston.
  2. 35

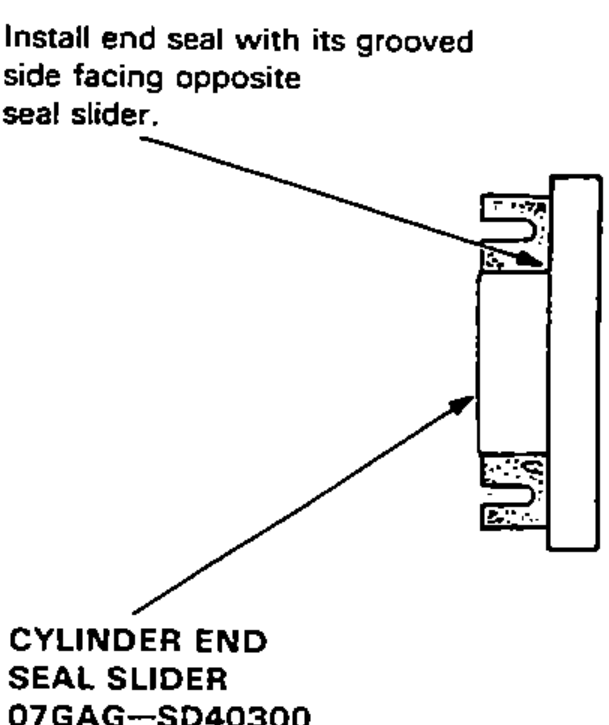

    Grease the sliding surfaces of the new cylinder end seal and the special tool, then place the seal on the special tool with its grooved side facing opposite the slider.
    Detail of the cylinder end seal placed on the cylinder end seal slider special tool with its grooved side facing opposite the seal slider.
  3. 36

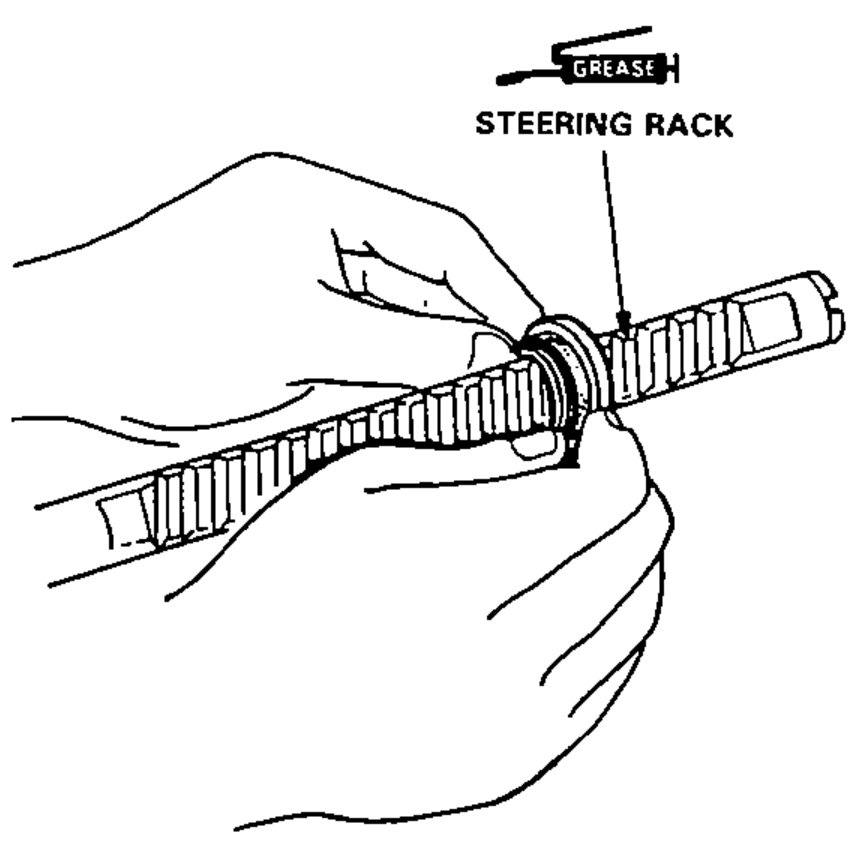

    Grease the steering rack, and install the special tool.
    CAUTION: Make sure the rack teeth do not face the slot in the special tool.
    Illustration of greasing the steering rack and installing the special tool by hand over the rack teeth.
  4. 37

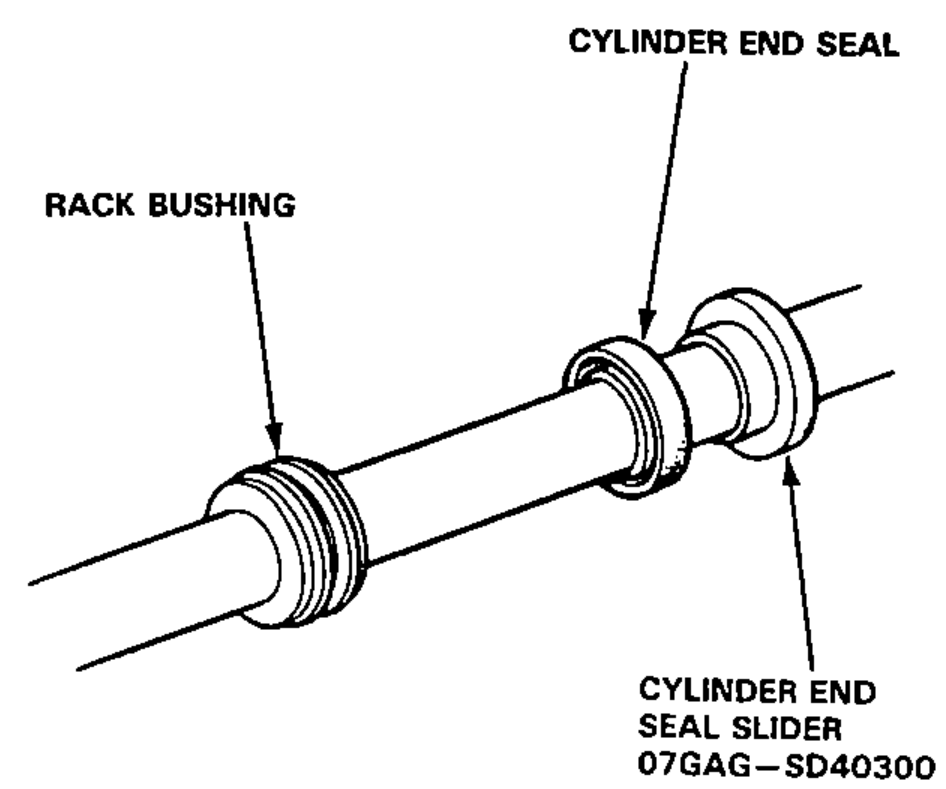

    Remove the special tool from the cylinder end seal, then separate the ends of the tool and remove it from the rack.
    View of the steering rack showing the rack bushing, cylinder end seal, and cylinder end seal slider after removing the special tool.
