Steering Column - Reassembly

11-14prose procedure

Reassembly

  1. 1
    Install the circlip on the steering shaft.

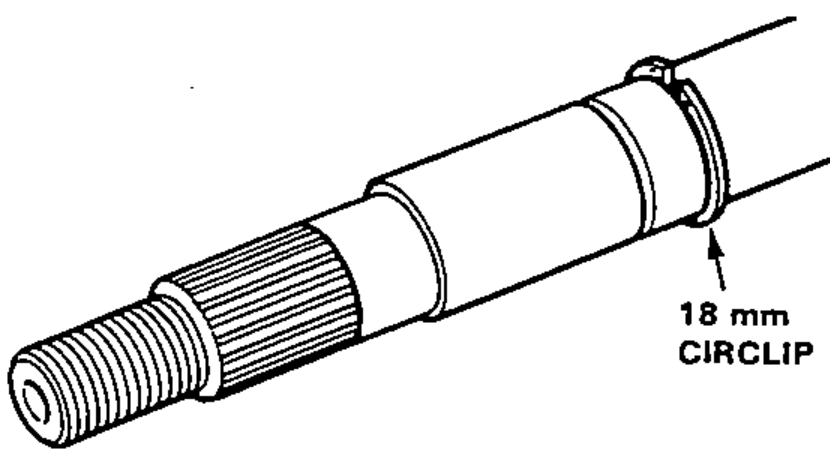

    Steering shaft with the 18 mm circlip installed in its groove near the splined end.
  2. 2
    Install the retaining collar on the steering column aligning the hole in the column with tab on the retaining collar.

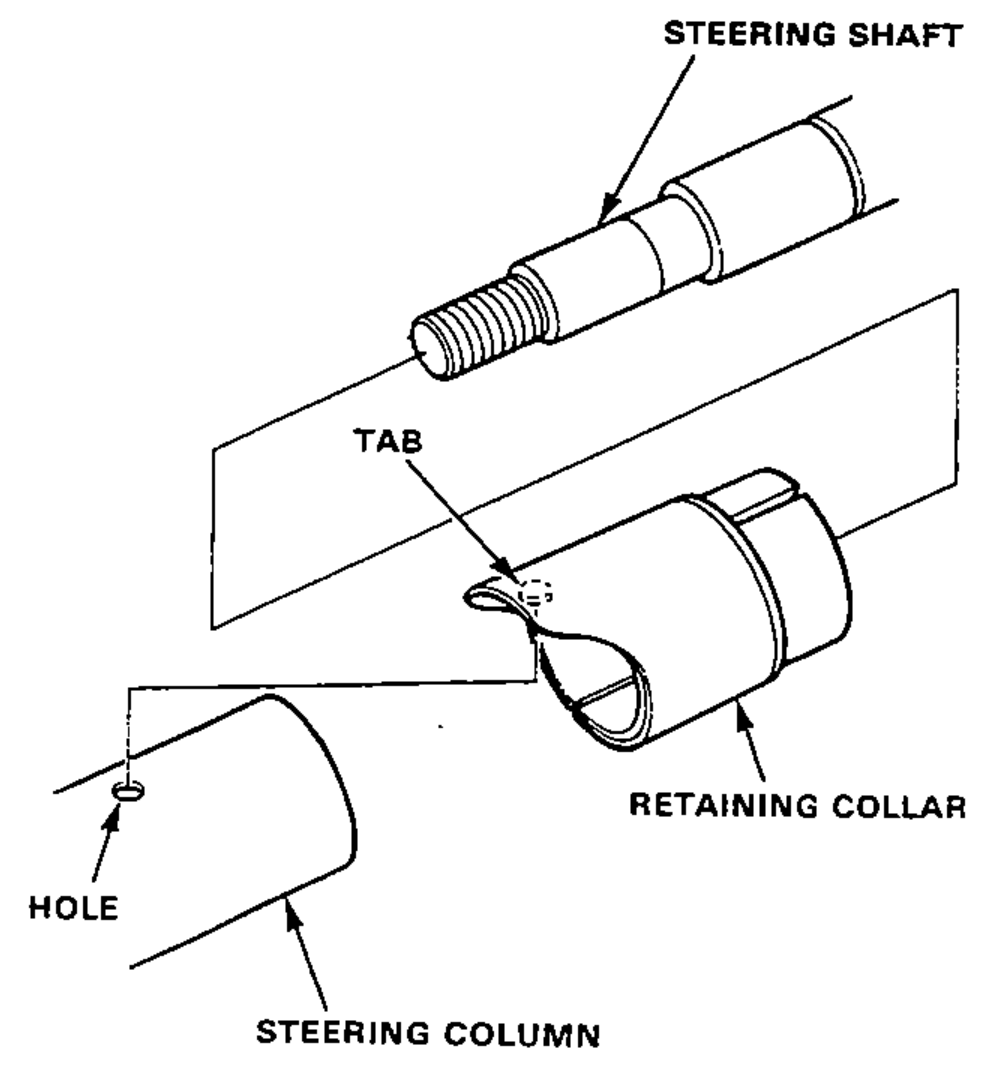

    Retaining collar being installed on the steering column, aligning the hole in the column with the tab on the collar; steering shaft shown above.
  3. 3
    Insert the steering shaft into the steering column from the bottom.
  4. 4
    Install the 24×18 mm spring washer and steering washer on the steering shaft and secure with the 18 mm snap ring.
    Install the spring washer as shown.

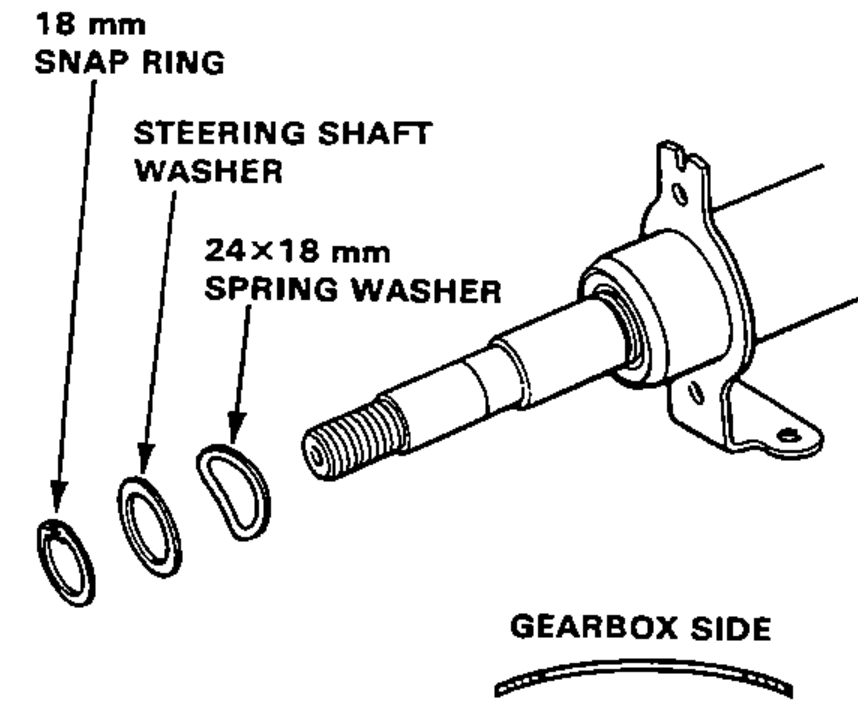

    Steering shaft (gearbox side) with the 18 mm snap ring, steering shaft washer and 24×18 mm spring washer exploded off, showing correct orientation; arrow marks GEARBOX SIDE vs STEERING WHEEL SIDE for the spring washer.
  5. 5
    Position the bending plate guide on the steering column.

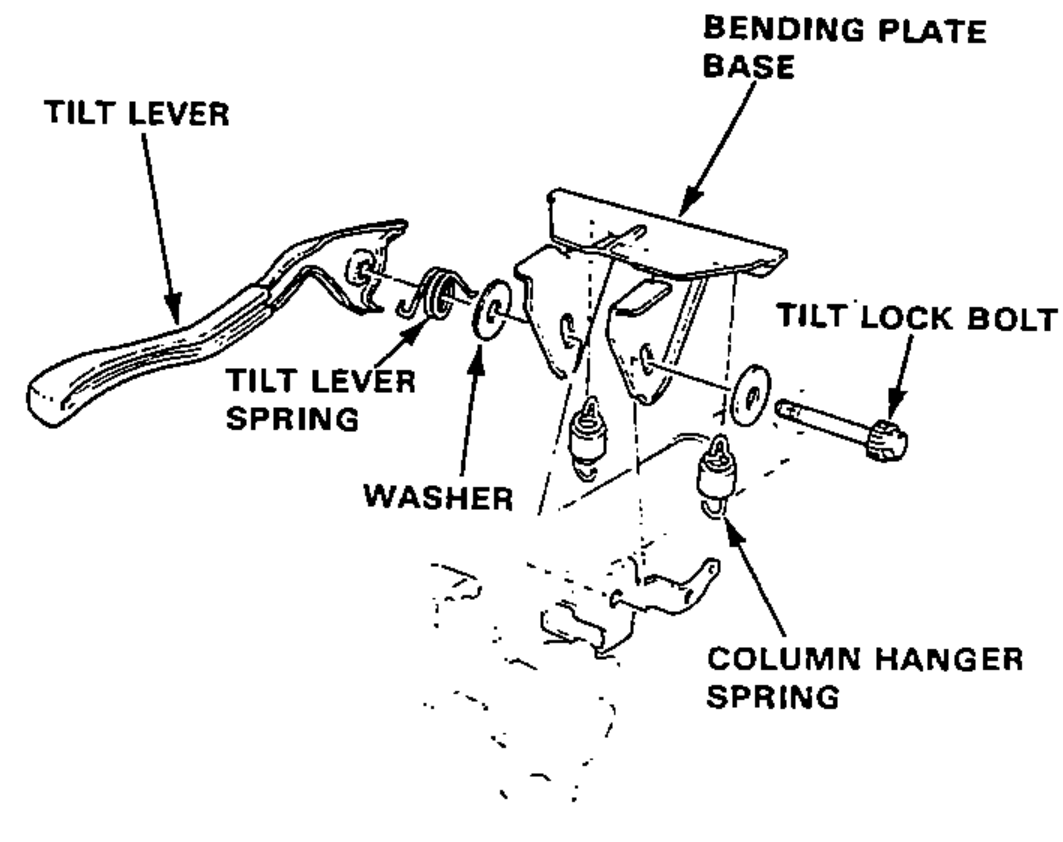

    Exploded assembly of the tilt lever, tilt lever spring, washer, bending plate base, column hanger spring and tilt lock bolt at the steering column.
  6. 6
    Loosely install the tilt lever, tilt lever spring, washers, and the bending plate guide on the steering column with the tilt lock bolt.
  7. 7
    Install the column hanger springs between the bending plate base and steering column.
