Steering Gearbox - Overhaul (cont'd)

11-64prose procedure

Overhaul (cont'd)

38

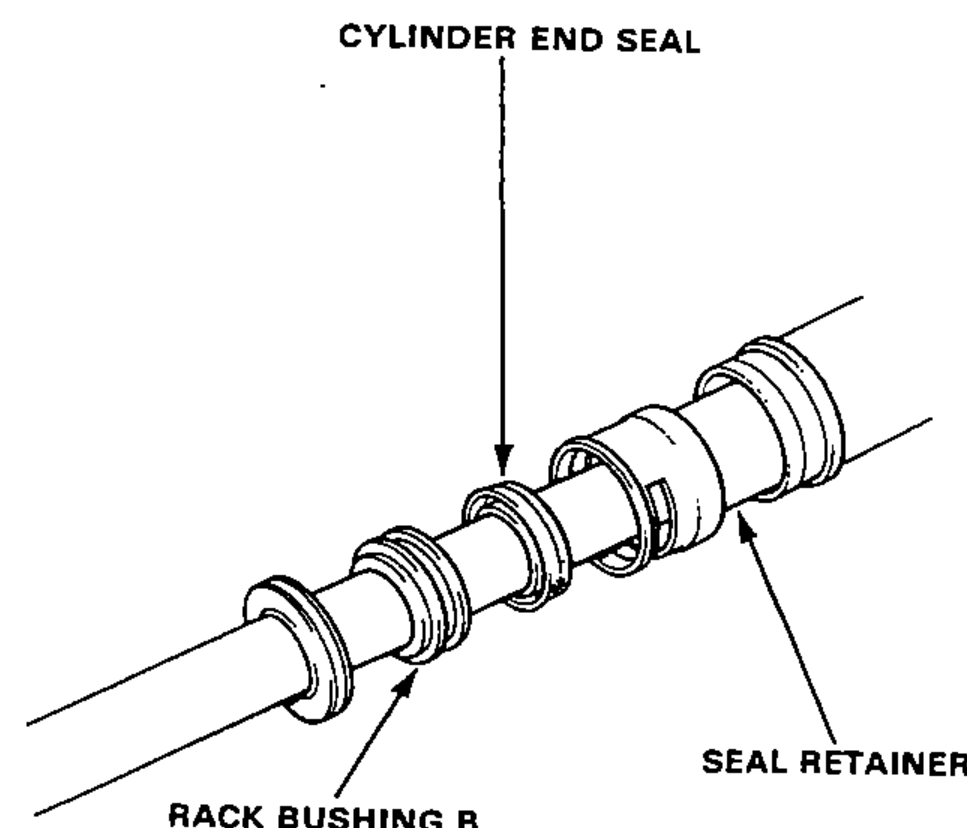

Fit the seal retainer on the steering rack.
39

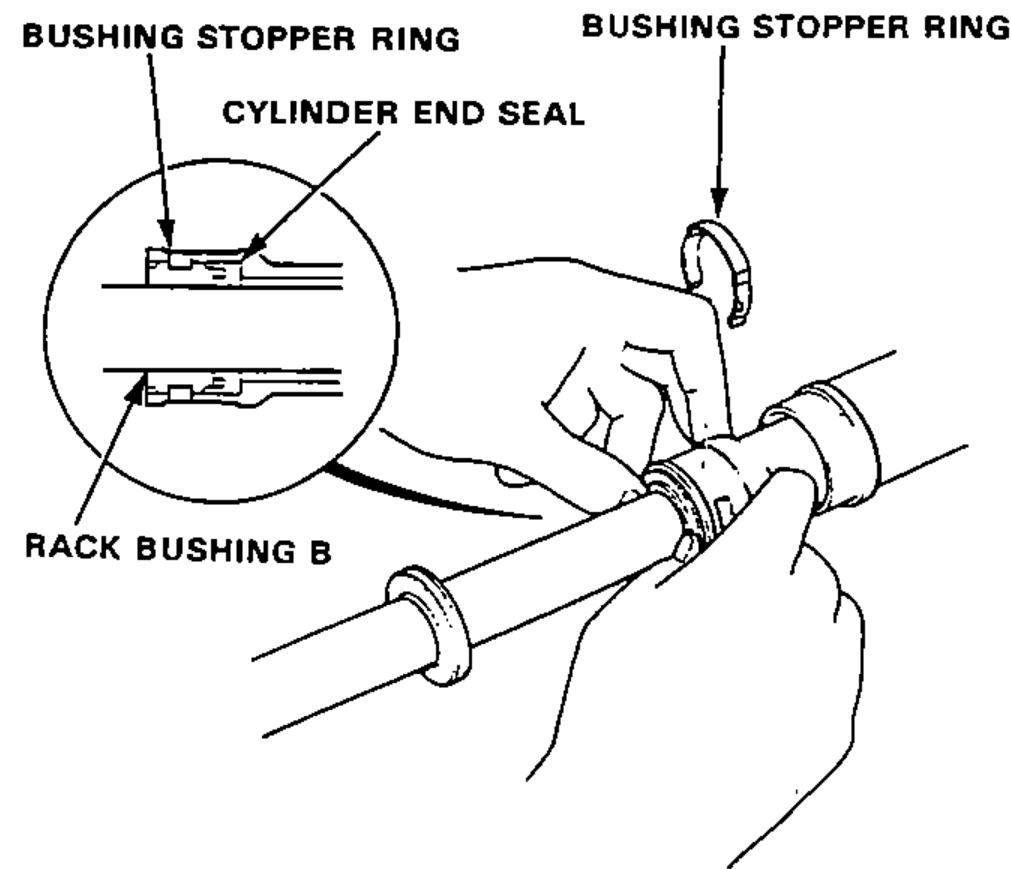

Push the rack bushing B toward the seal retainer by hand until the cylinder end seal is seated in the retainer. Fit the seal stopper ring in the groove of the seal retainer securely.
40

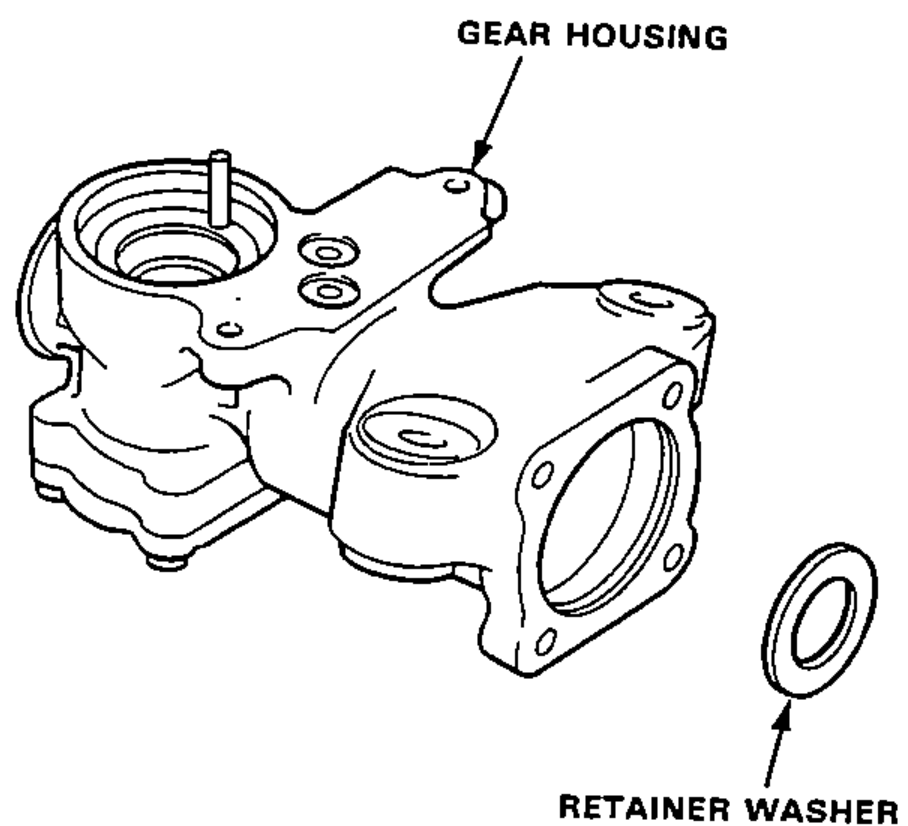

Install the retainer washer on the gear housing.
41

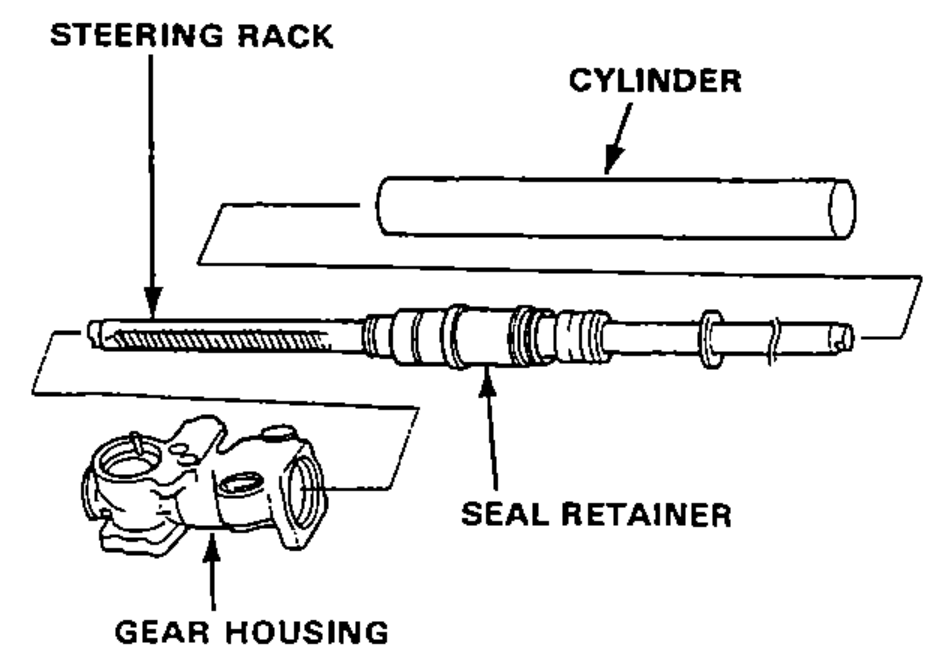

Place the gear housing on the work bench and insert the seal retainer and steering rack into the gear housing.
42
Coat the inside surface of the cylinder with power steering fluid, slide it over the rack and into the gear housing; press it into to housing until it seats.
