Column - Reassembly (cont'd) / Installation

11-34prose procedure
Continued from 11-33

Reassembly (cont'd)

  1. 13
    Slip the upper end of the steering joint onto the pinion shaft (line up the bolt hole with the groove around the shaft) and loosely install the top bolt. Final torque: 22 N·m (2.2 kg-m, 16 lb-ft)

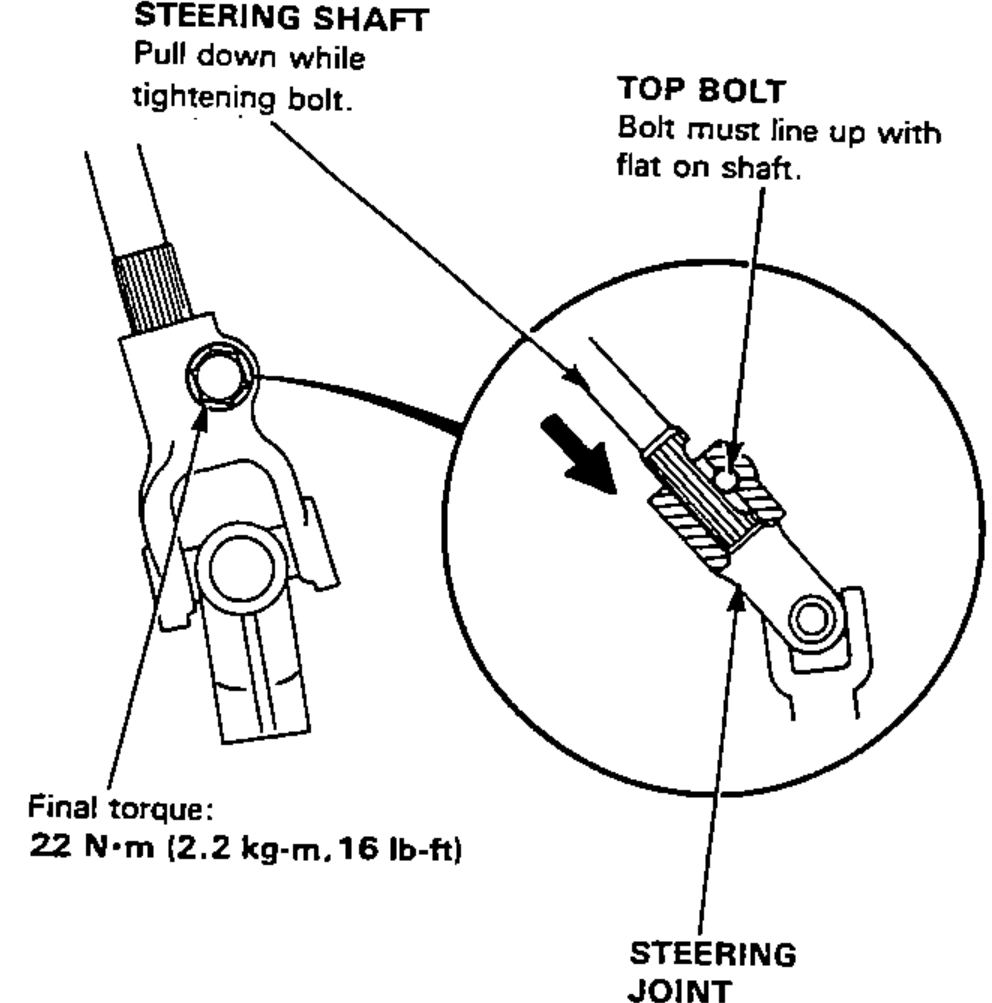

    Upper end of the steering joint being slipped onto the pinion shaft with the top bolt aligned to the flat/groove on the shaft; magnified inset shows the bolt engaging the shaft flat. Final torque callout for the top bolt.

Installation

  1. 1
    Set the guide rails in the bending plate guide and install the bending plate guide on the bending plate base.
    Install the bending plate guide with its arrow mark toward the gearbox.

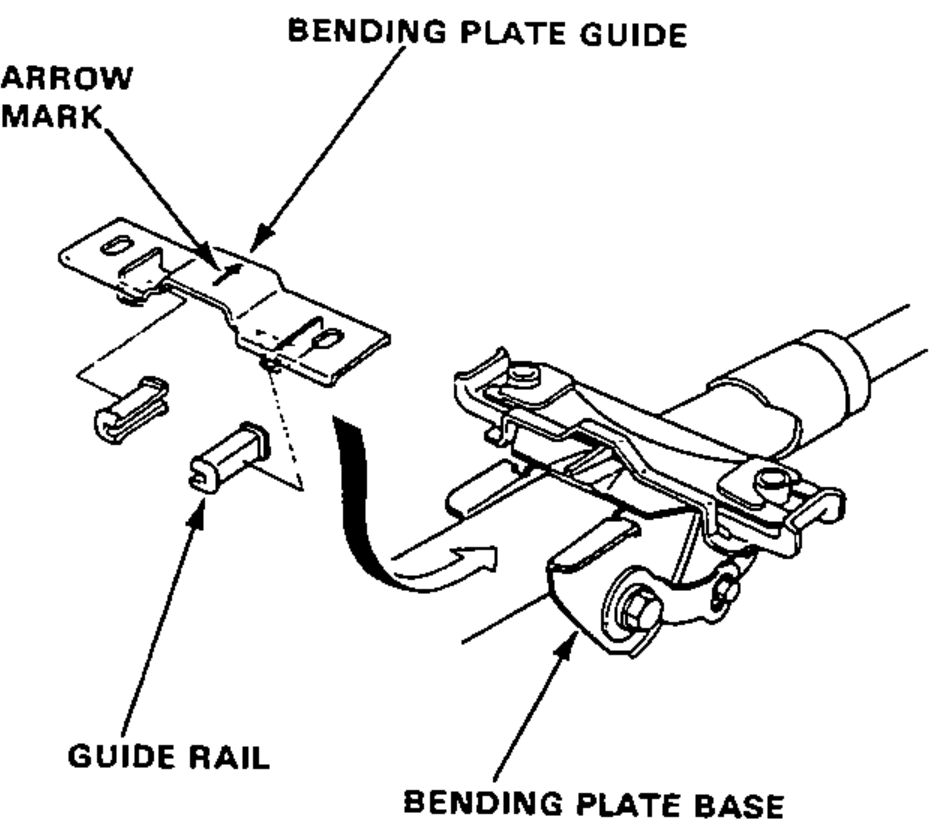

    Guide rails set in the bending plate guide, installed on the bending plate base at the column, with the arrow mark oriented toward the gearbox.
  2. 2
    Loosely install the steering column assembly with the nuts, bolts and lower column bracket.
    Tighten to these torques in step 7, page 11-33: 22 N·m (2.2 kg-m, 16 lb-ft); 13 N·m (1.3 kg-m, 9 lb-ft)

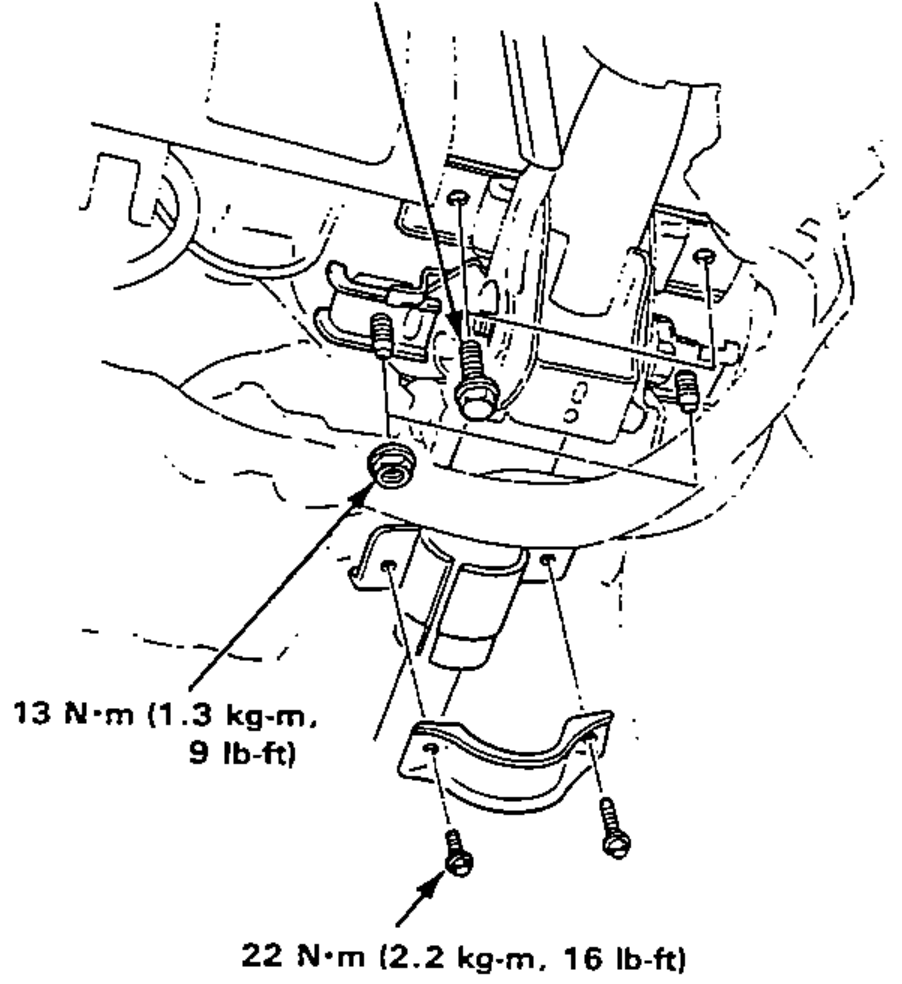

    Steering column assembly loosely installed under the dash with the nuts, bolts and lower column bracket, showing tightening torques for the mounting hardware.
